Four wheel drive Dongfeng off-road vehicle Protective Armored Vehicle

Short Description:

Product Detail

Product Tags

Product Description

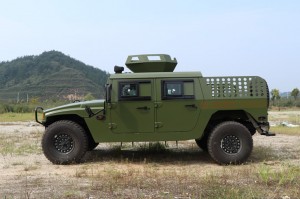

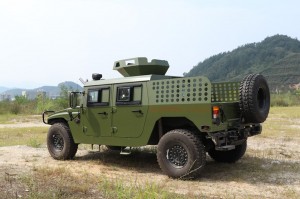

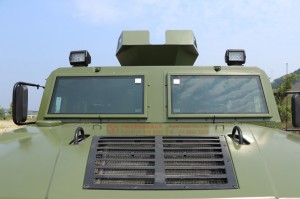

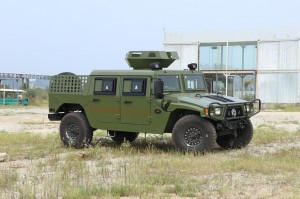

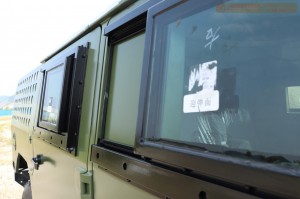

The body of the vehicle uses a 32mm bulletproof steel plate, 35mm thick bulletproof glass, with a weapon turntable, tyre can also choose anti-pop-ups, military performance is also strong.

Product Parameter

Basic Configuration
Drive Mode 4×4
Engine Cummins 200 HP
Gearbox Mechanical Manual six speed
Transfer case High-low speed
Cab Four seats
Axle Max. Load 3.1Tons/3.2Tons (Front/Rear)
Tyre 37 * 12.5R16.5TL off-road tyre
Other 1. The body uses 32mm bulletproof steel plate, 35mm thick bulletproof glass2. The top is equipped with weapon turns, tyre is also available for anti-pop-up
Performance Parameter
Overall Dimension(mm) 5200×2137×1920(Length×Width×Height)
Total Mass(kg) 6300 Load Weight(kg) 1800(off-road)
Max. Power(kW/rpm) 145/2500 Tank Capacity(L) 90+40
Wheelbase(mm) 3300 Displacement(L) 4.5
Approach Angle (°) 65 Departure Angle (°) 45
Ground Clearance(mm) ≤305 Fording depth (mm) 550
Max. Speed(km/h) 110 Max. Turning radius(m) 8

This parameter is for reference only. The margin of error is plus or minus three percentage points.
