Dongfeng 4*4 flathead off-road truck–170hp diesel off-road truck–Custom Chassis Export Manufacturer
Product Description
4×4 Dongfeng light-duty pickup truck with a double-cab chassis (4×2 drive available as an option); the 4×4 configuration is suitable for use on rough terrain and offers superior off-road performance, while the 4×2 configuration is ideal for urban roads, providing a lightweight and fuel-efficient option. Custom modifications and upgrades can be made according to customer requirements.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Flathead one and a half row |
| Axle | Max. Load 2.7Tons/8Tons (Front/Rear) |
| Tyre | 9.00R20 (6+1) |
| Circuit | 24V circuit system |
| Optional | Air conditioner |
| Other | Buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |
| Performance Parameter | |||
| Chassis Dimension(mm) | 5700 × 2360 × 2650(Length×Width×Height) | ||
| Superstructure length(mm) | ≥3320 | ||
| Total Mass(kg) | 10700 | Curb Weight(kg) | 4140 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1780/1840 |
| Wheelbase(mm) | 3300 | Displacement(L) | 5.9 |
| Approach Angle (°) | 21 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | 280 | Fording depth (mm) | 620 |

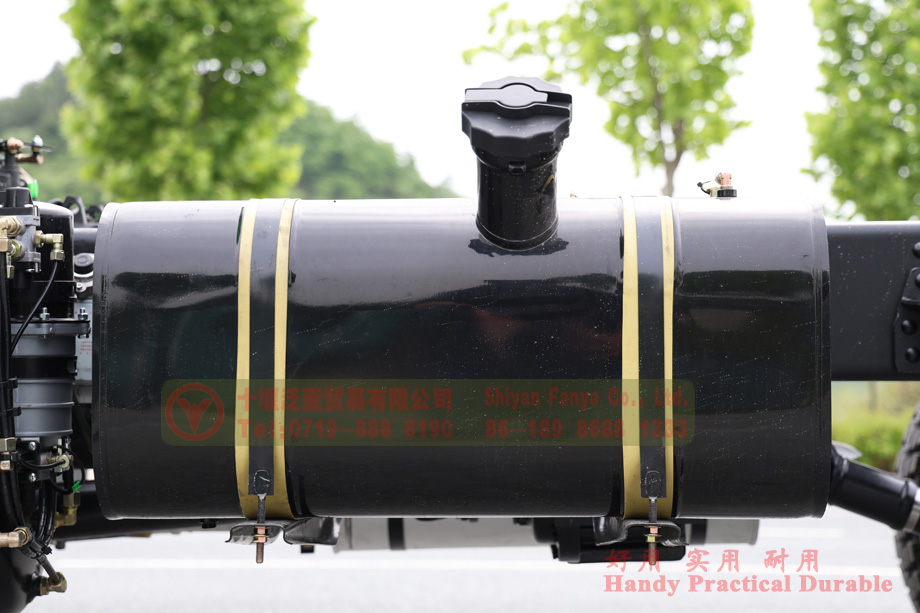

| Max. Speed(km/h) | 85 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
