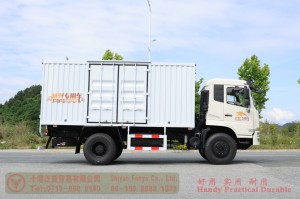

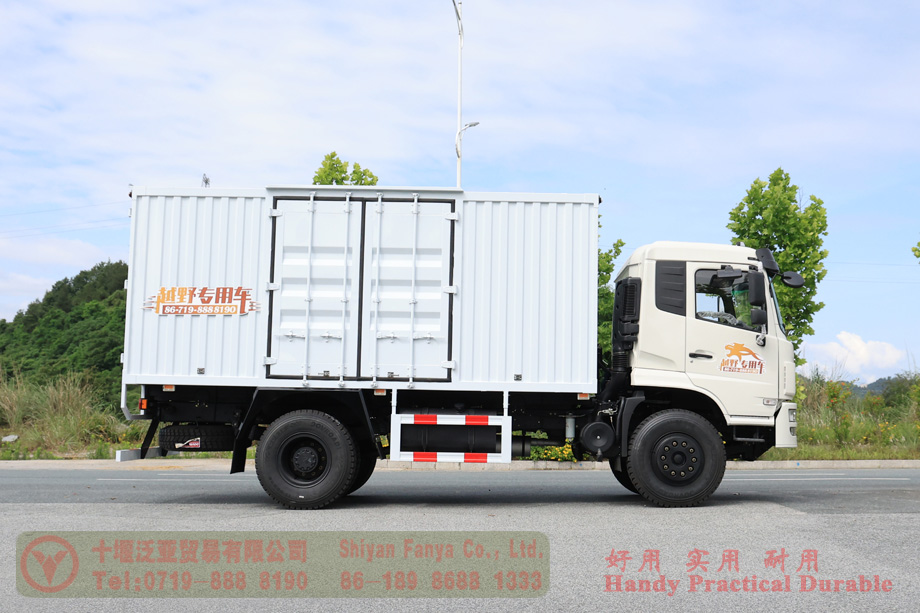

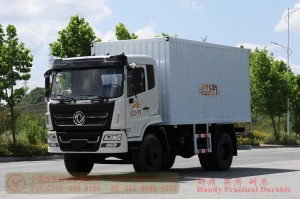

Dongfeng Weichai 210 HP Van—4×2 5-Meter Van—Van Manufacturer and Exporter
Product Description

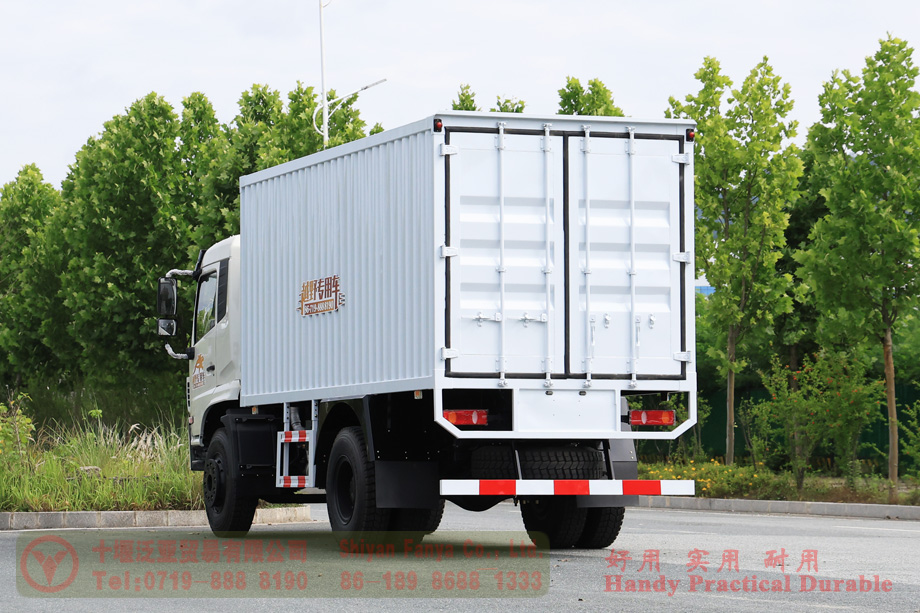

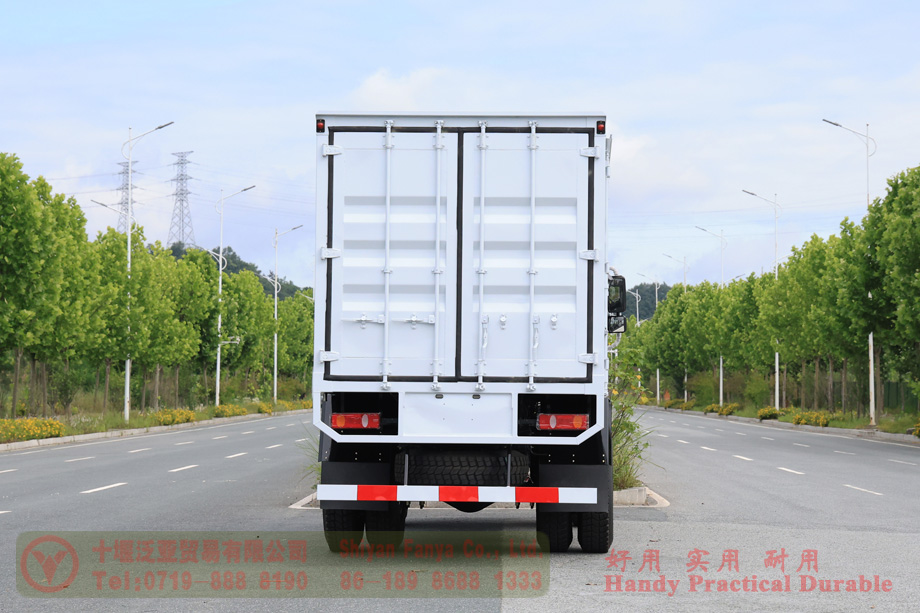

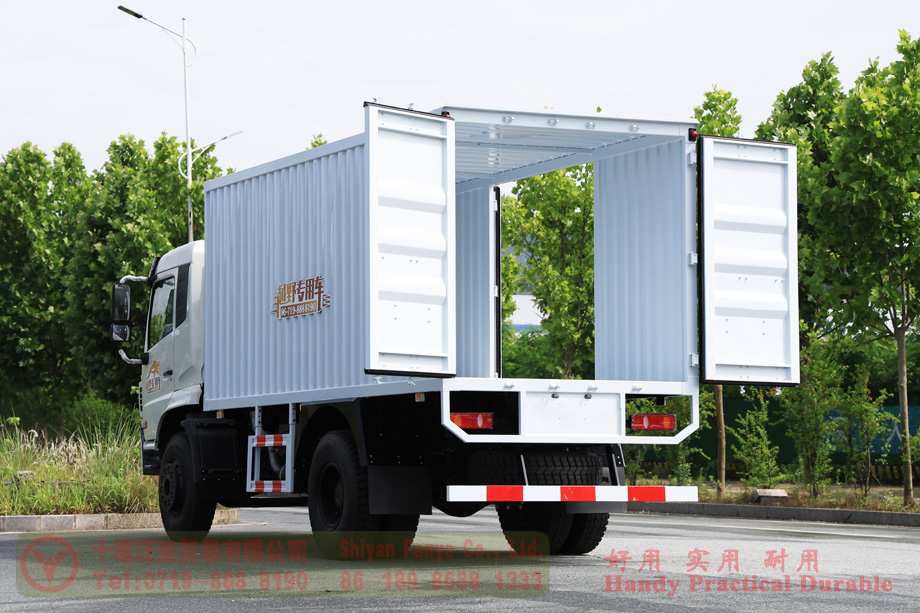

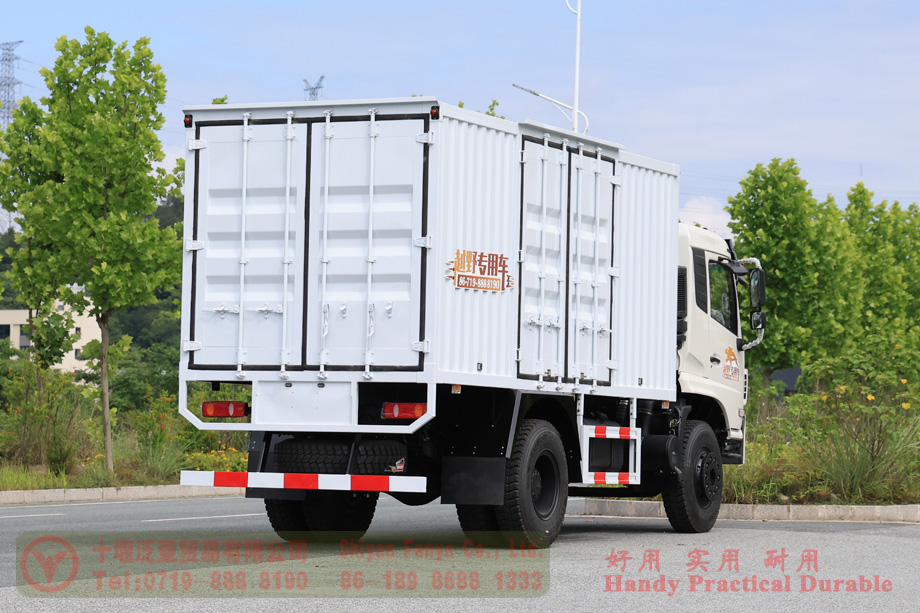

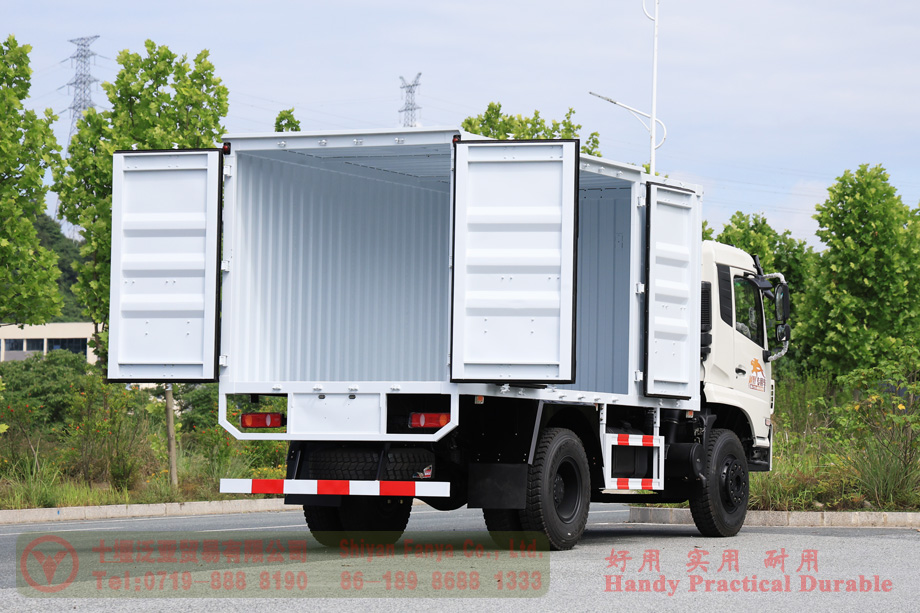

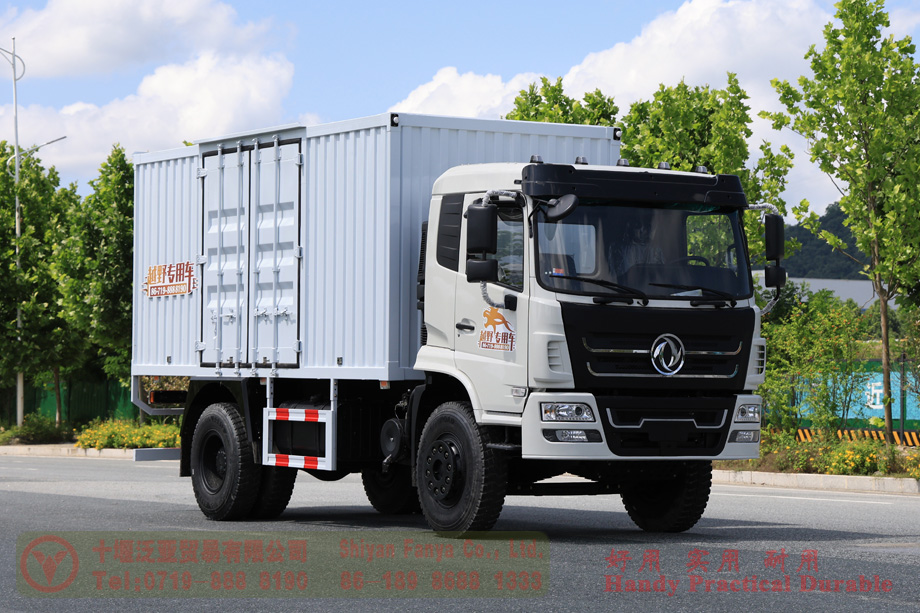

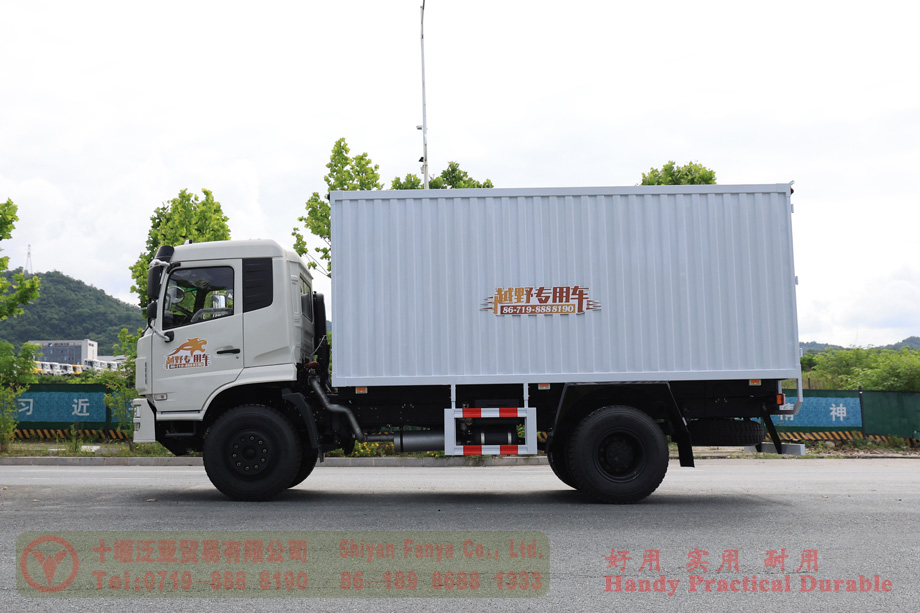

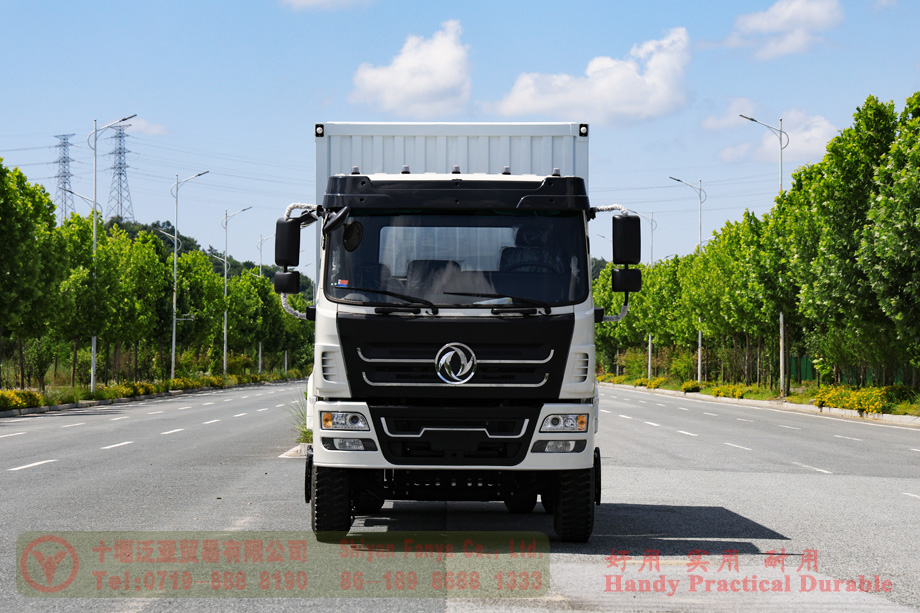

A panel van is a type of truck featuring a cab and a closed, rectangular cargo compartment at the rear. Widely used for freight transport across various industries, it has become the workhorse of the logistics and freight industry thanks to its all-weather protection and high level of security.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Wechai 210hp |
| Gearbox | Mechanical Manual ten speed |

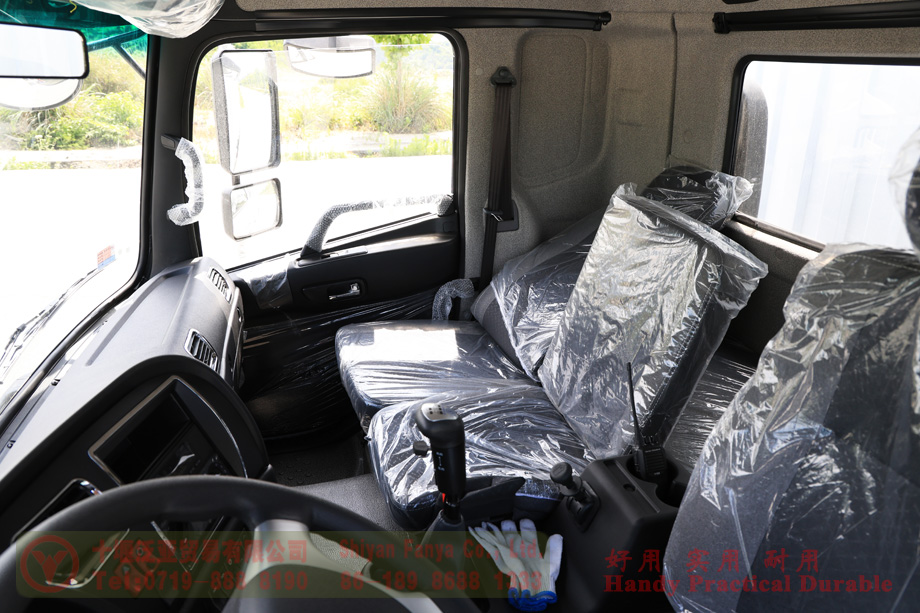

| Cab | Flathead one and a half row |
| Axle | Max. Load 5Tons/13Tons (Front/Rear) |

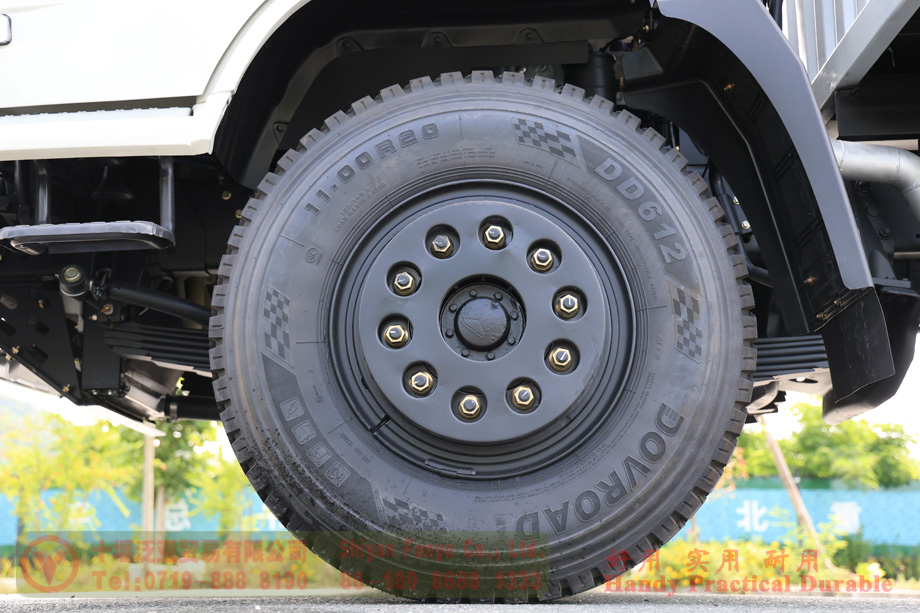

| Tyre | 11.00R20(6 + 1) |
| Suspension | Steel plate springs 12/13 |
| Performance Parameter | |||
| Overall Dimension(mm) | 7540× 2500 × 3600(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 5200× 2310 × 2250(Length×Width×Height) | ||
| Total Mass(kg) | 18000 | No. of Members | 3 |
| Max. Power(kW/rpm) | 155 | Axlebase(mm) | 1790 |
| Wheelbase(mm) | 3950 | Displacement(L) | 6.23 |
| Approach Angle (°) | 19 | Departure Angle (°) | 16 |
| Fording Depth(mm) | 500 | Ground Clearance(mm) | 330 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
