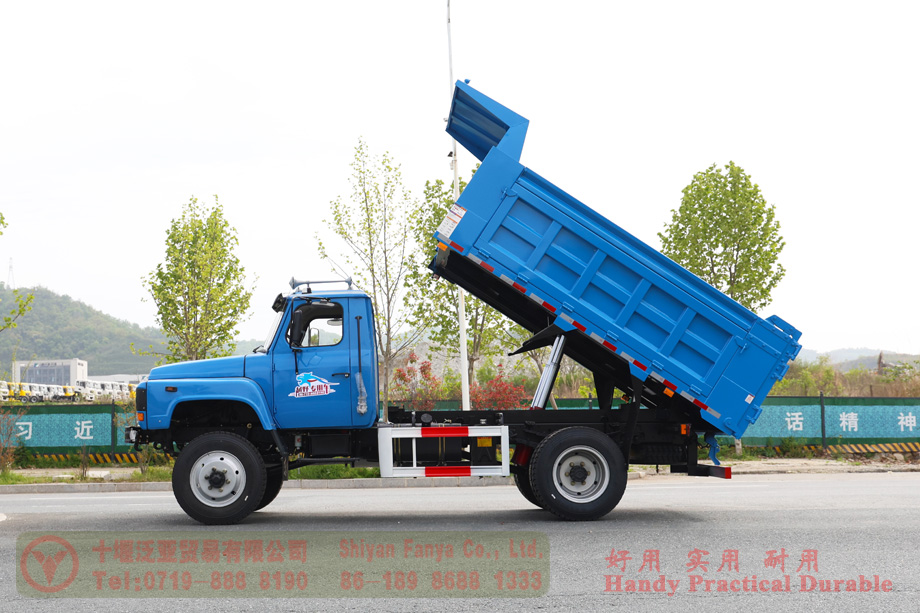

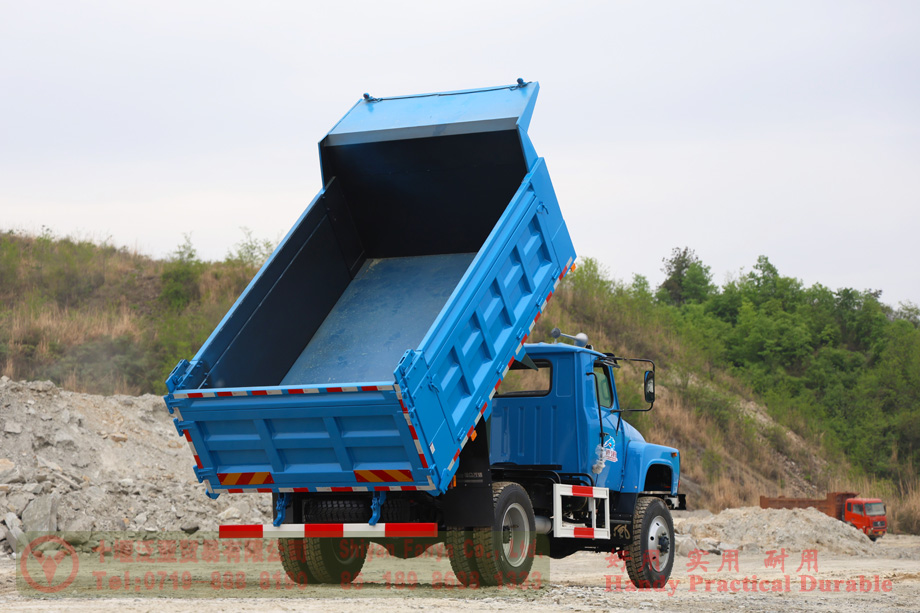

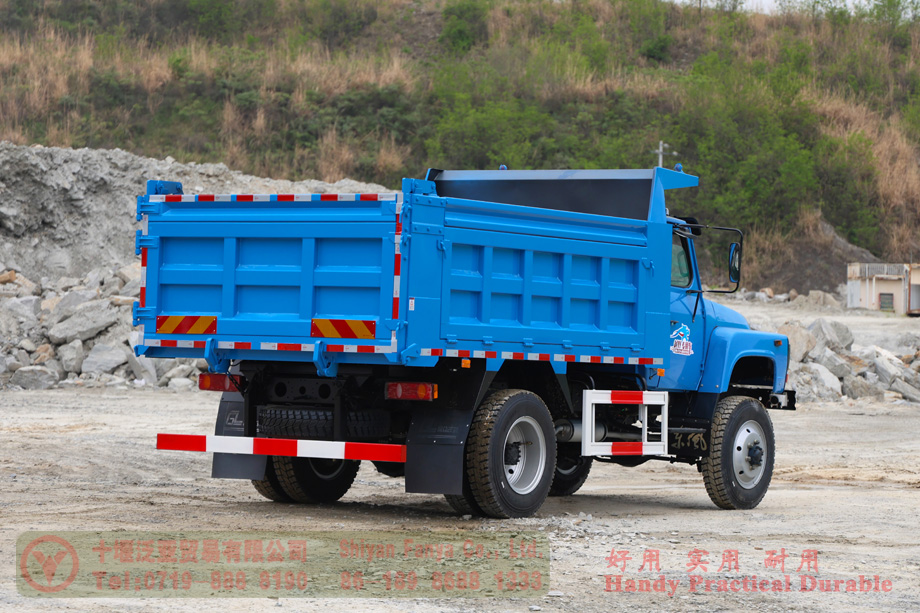

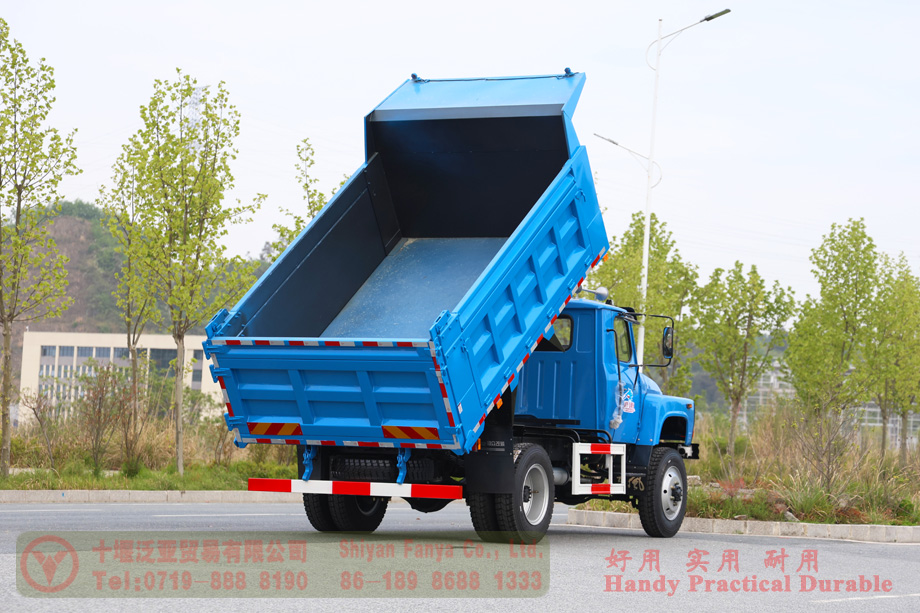

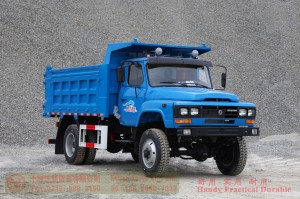

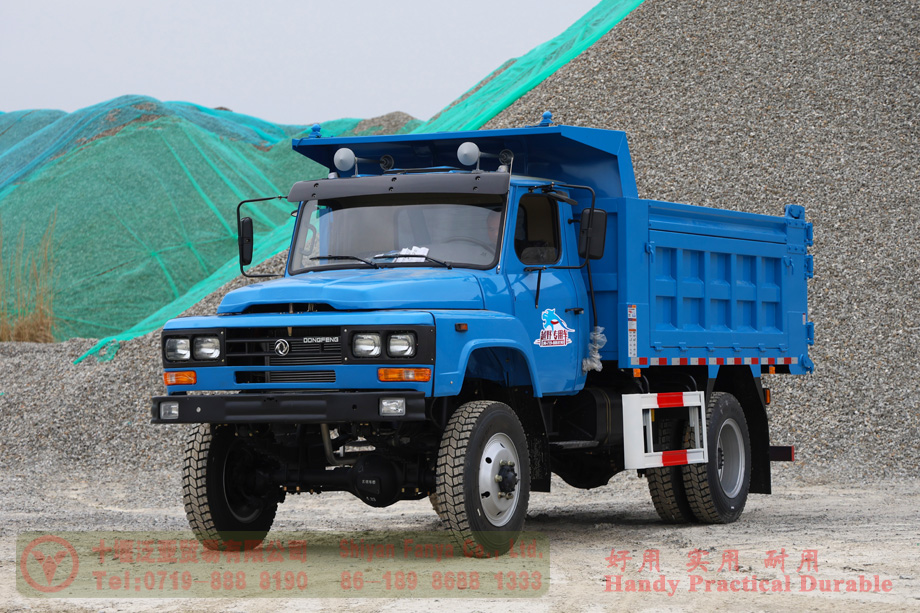

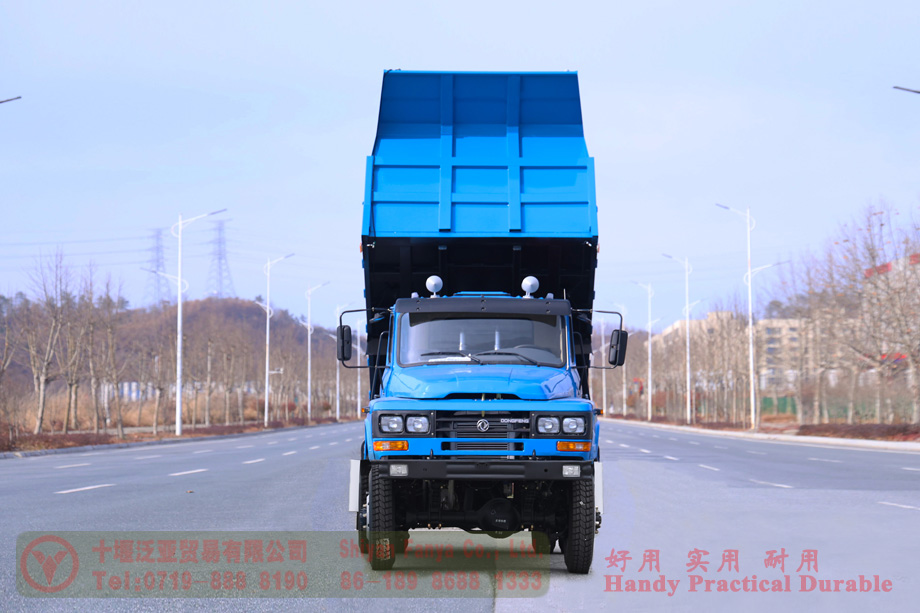

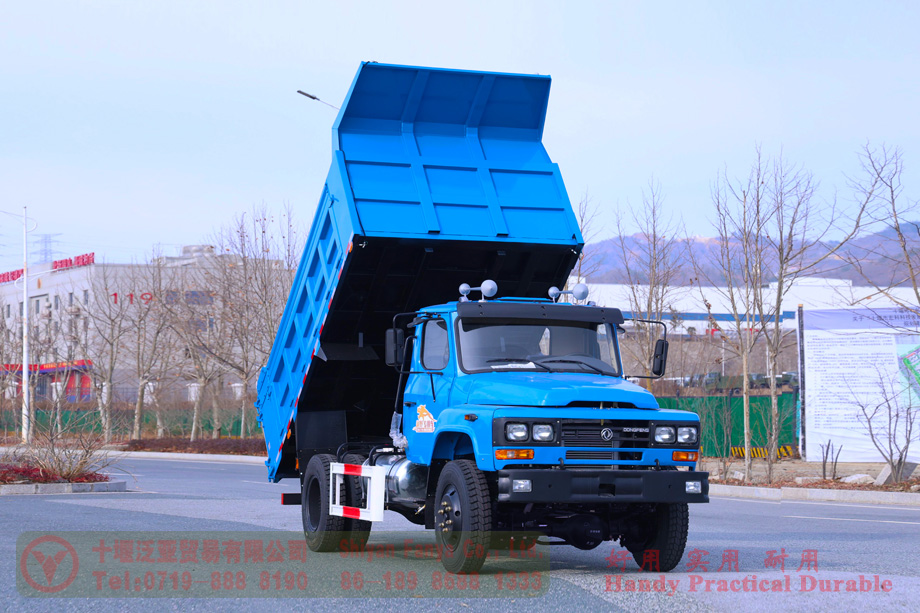

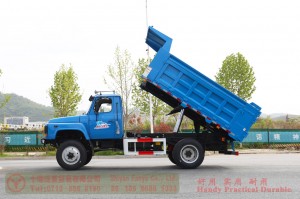

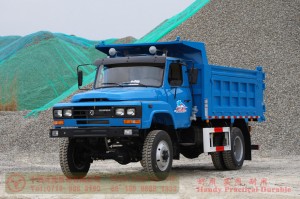

Dongfeng 4*4 Pointed Cargo Truck–Dongfeng Pointed Cab Off-road Dump Truck –Dongfeng Cargo Truck Export Manufacturer
Product Description

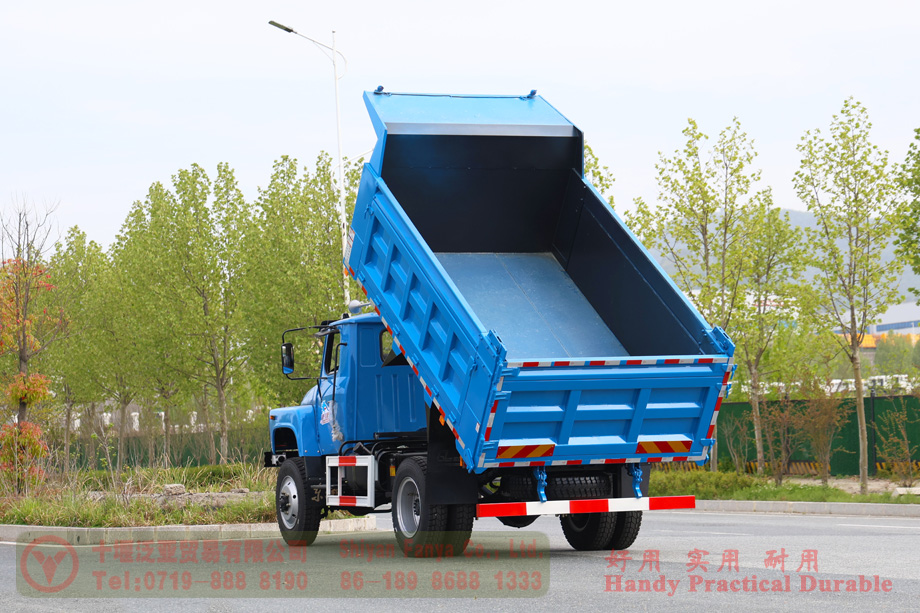

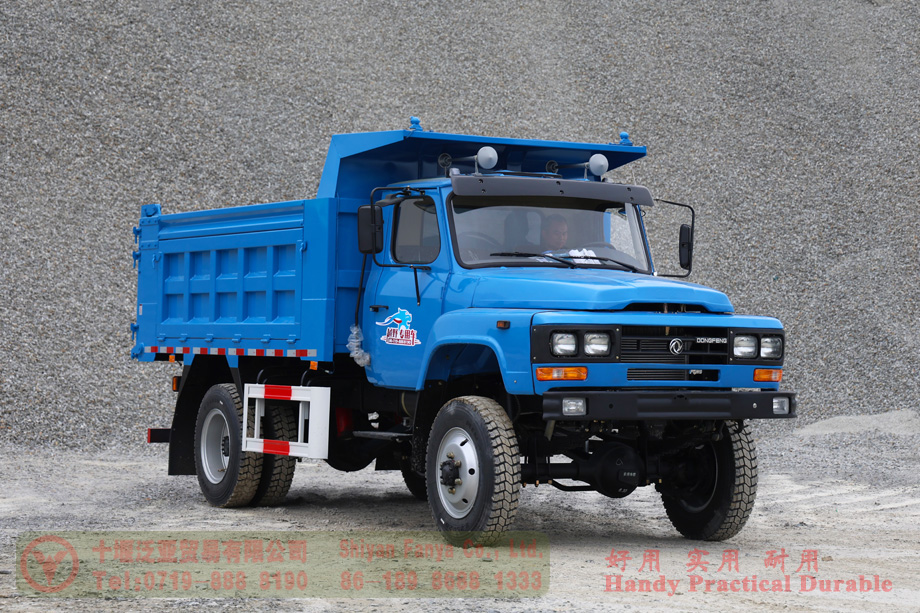

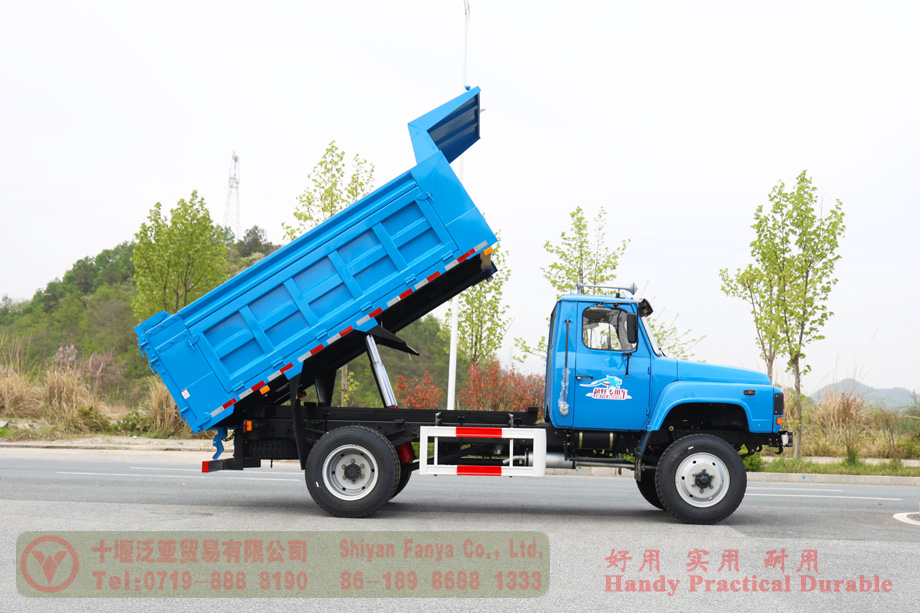

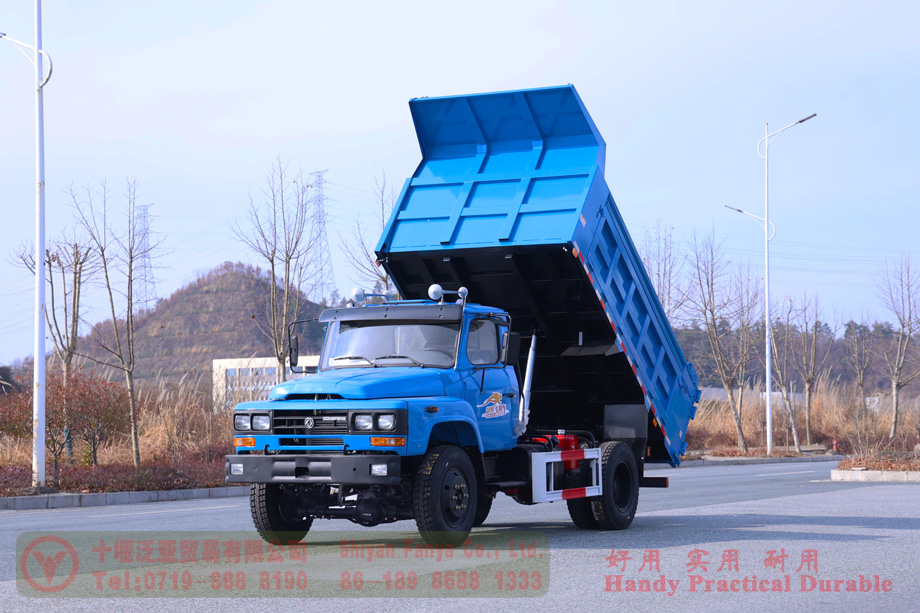

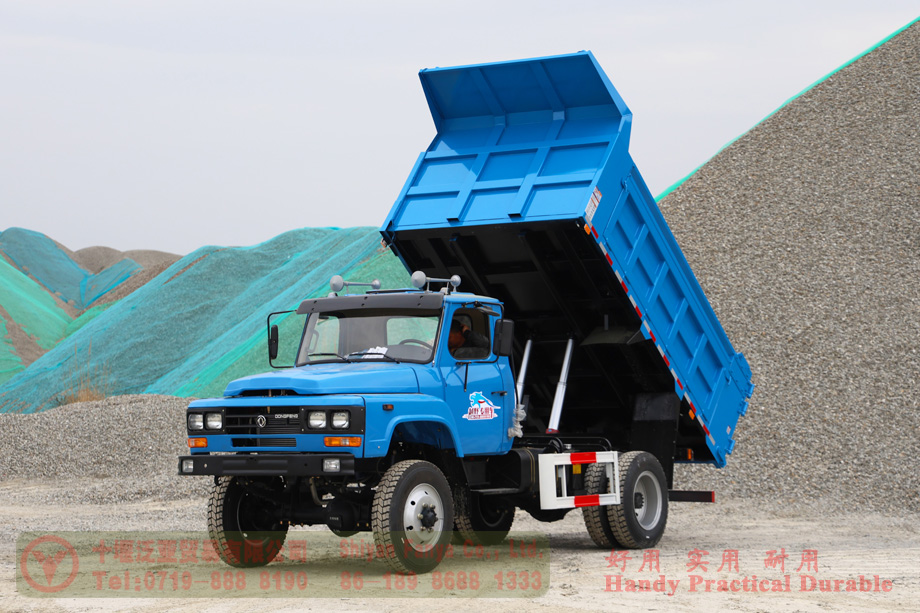

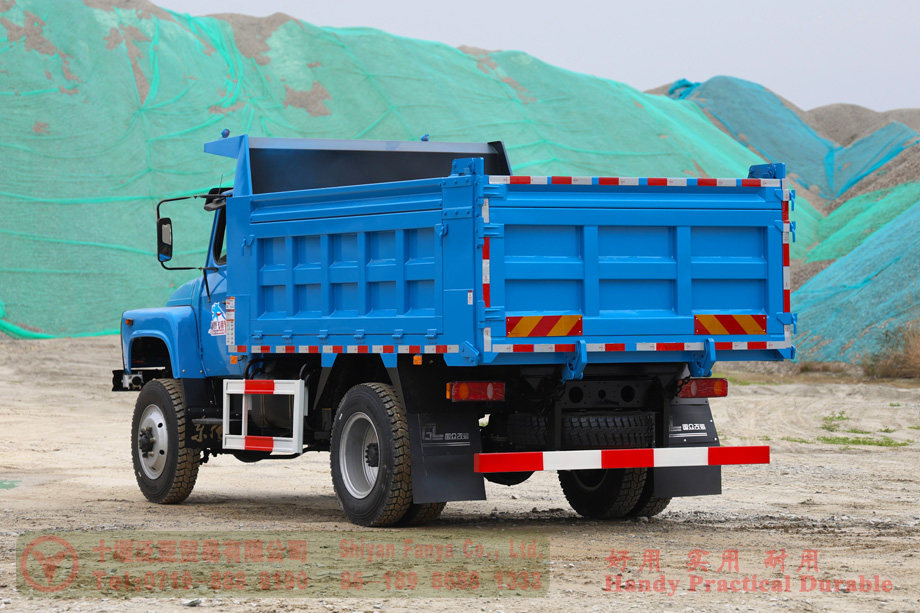

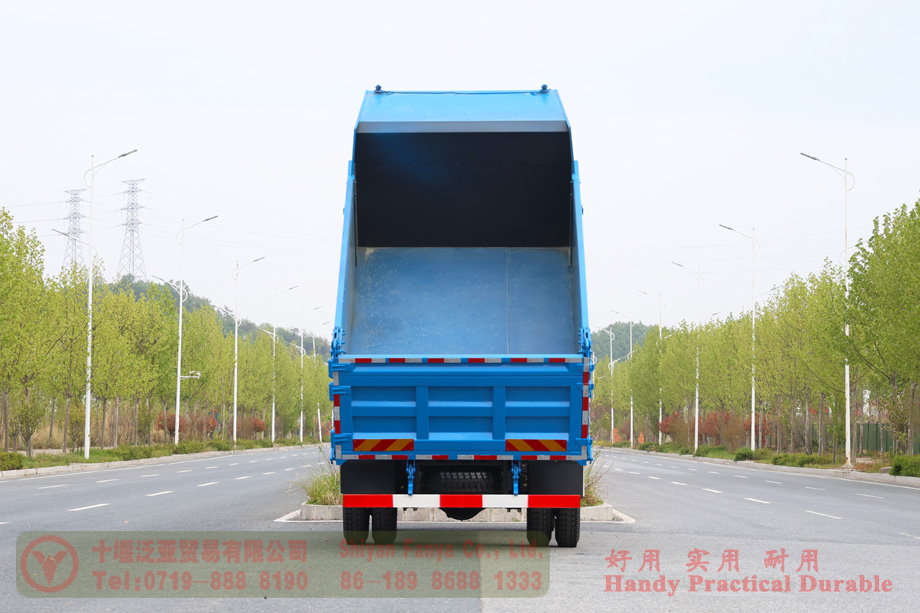

4*4 Dongfeng dump truck, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields. Whether it’s a city road or a remote mountain road, with its excellent off-road performance, unparalleled driving experience.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Yunnei 4102QBZL |
| Gearbox | Mechanical Manual five speed |
| Transmission | High and low speed |

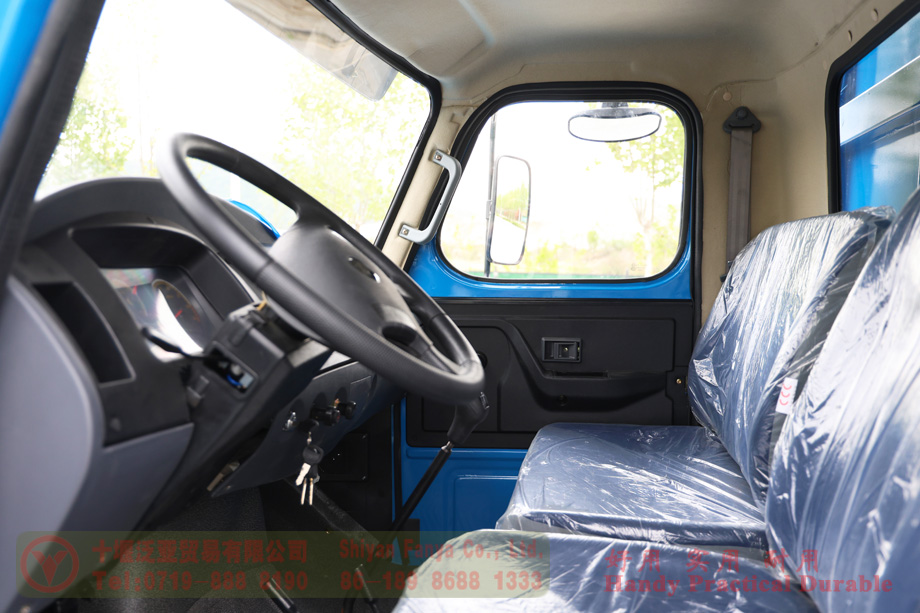

| Cab | Pointed single row |
| Axle | Max. Load 3Tons/6Tons (Front/Rear) |

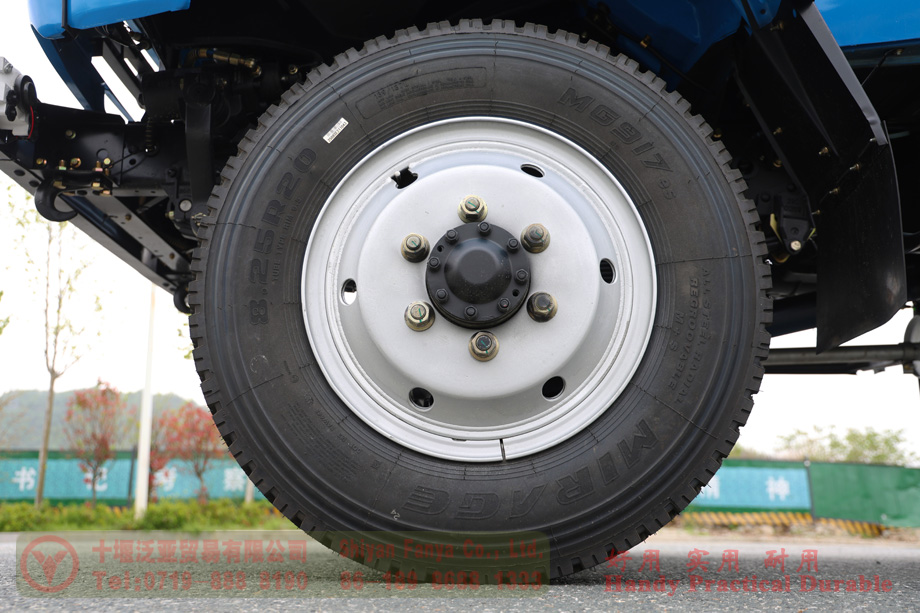

| Tyre | 8.25R20(6 + 1) |
| Frame | 860*232mm,8+4 |
| Circuit | 24V Circuit System |
| Performance Parameter | |||
| Overall Dimension(mm) | 6480 × 2475× 2825(Length×Width×Height) | ||

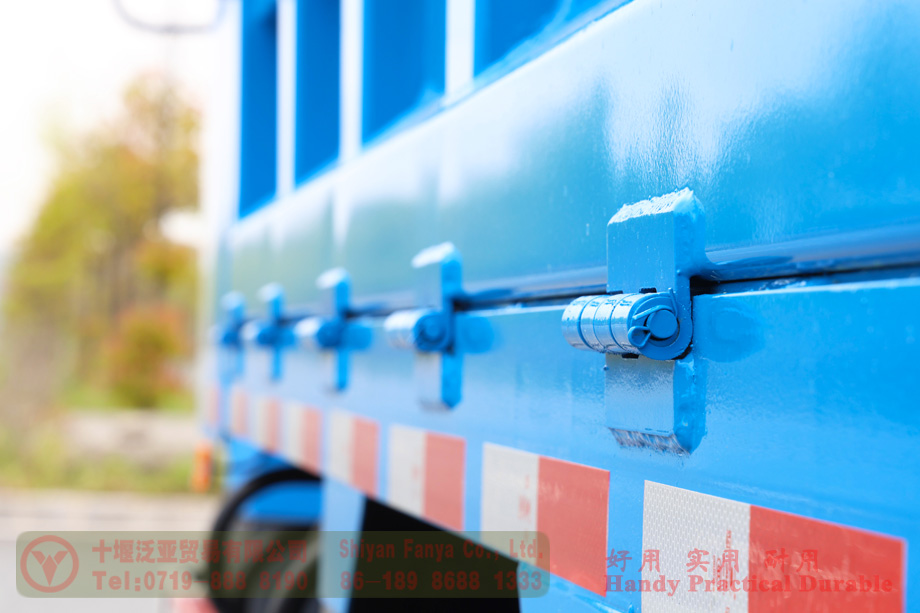

| Cargobox Dimension(mm) | 3600 × 2225 × (800+200),sides 4 × 5 (Length×Width×Height) | ||
| Total Mass(kg) | 9800 | Curb Weight(kg) | 5760 |
| Max. Power(kW/rpm) | 85 | Axlebase(mm) | 1803/1812 |
| Wheelbase(mm) | 3600 | Displacement(L) | 3.76 |
| Approach Angle (°) | 40 | Departure Angle (°) | 20 |
| Obstacle height(mm) | 470 | Leaf spring | 9/10+8 |
| Fording Depth(mm) | 550 | Ground Clearance(mm) | 250 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
