Dongfeng six-wheel drive off-road special purpose vehicle chassis–Rear double axle 400 hp chassis–Special purpose vehicle chassis customization manufacturer
Product Description

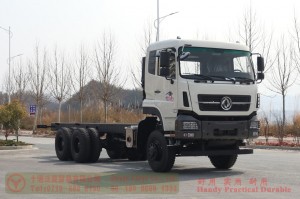

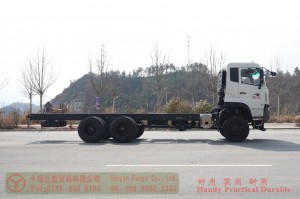

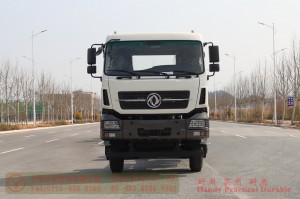

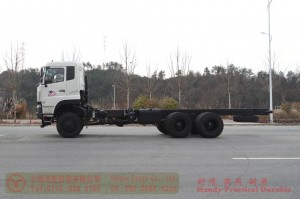

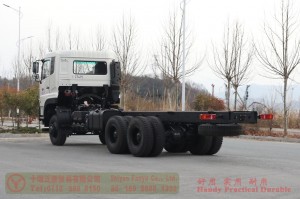

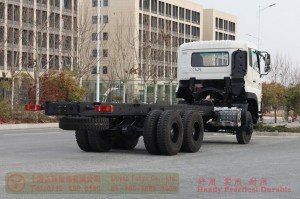

6×6 Dongfeng heavy-duty special purpose vehicle chassis, with a total mass of up to 33 tons and six-wheel drive, can be driven in mountain roads, forests and other areas, and is suitable for conversion into lorries, tippers, concrete mixers and other special heavy vehicles.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins ISL9.5-400E51A |

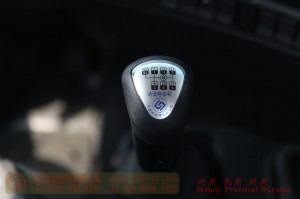

| Gearbox | Mechanical Manual Twelve speed |

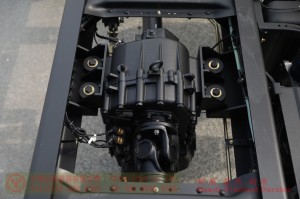

| Transfer case | High-low speed |

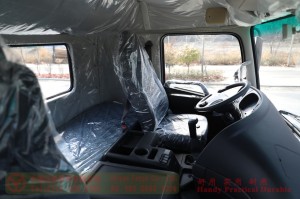

| Cab | Dongfeng Flathead row half (with AC) |
| Axle | Max. Load 6Tons/16Tons/16Tons (Front/Middle/Rear) |
| Tyre | 11.00R20(10 + 1) |
| Circuit | 24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 10360 × 2560 × 3410(Length×Width×Height) | ||
| Modification size(mm) | ≥7760 | ||
| Total Mass(kg) | 33000 | Curb Weight(kg) | 10030 |
| Max. Power(kW/rpm) | 295 | Axlebase(mm) | 1910/1875/1875 |
| Wheelbase(mm) | 3600+1350 | Maximum Climbing Degree(%) | 60 |
| Approach Angle (°) | 20 | Departure Angle (°) | 13 |
| Ground Clearance(mm) | 325 | Fording depth (mm) | 730 |
| Max. Speed(km/h) | ≥87 | Tank Capacity(L) | 380 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
