Dongfeng 4*4 flathead off-road truck Chassis–150hp diesel off-road truck Chassis–Custom Chassis Export Manufacturer
Product Description
4×4 Dongfeng light-duty pickup truck with a double-cab chassis (4×2 drive available as an option); the 4×4 configuration is suitable for use on rough terrain and offers superior off-road performance, while the 4×2 configuration is ideal for urban roads, providing a lightweight and fuel-efficient option. Custom modifications and upgrades can be made according to customer requirements.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins EQB150-20 |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |

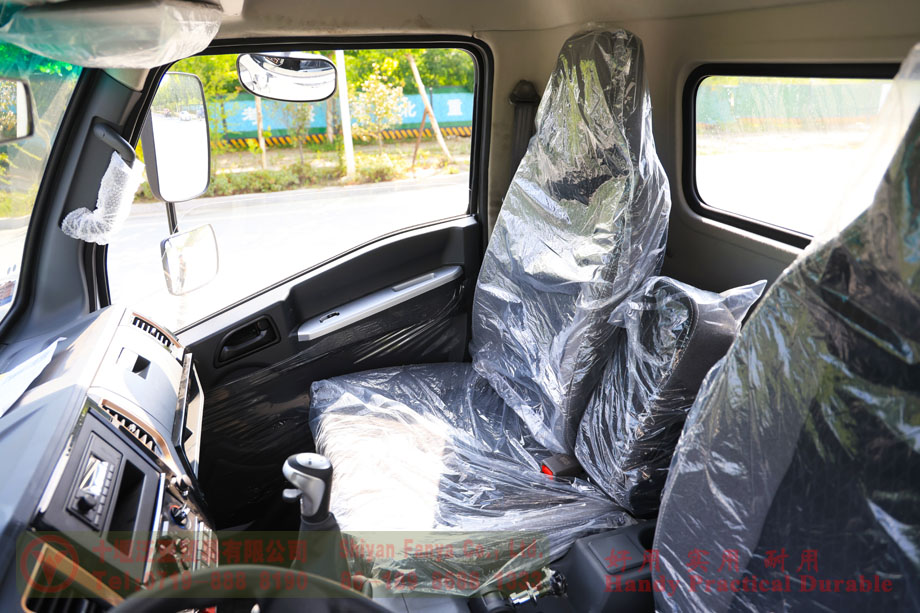

| Cab | Flathead single row |
| Axle | Max. Load 4.5Tons/8Tons (Front/Rear) |

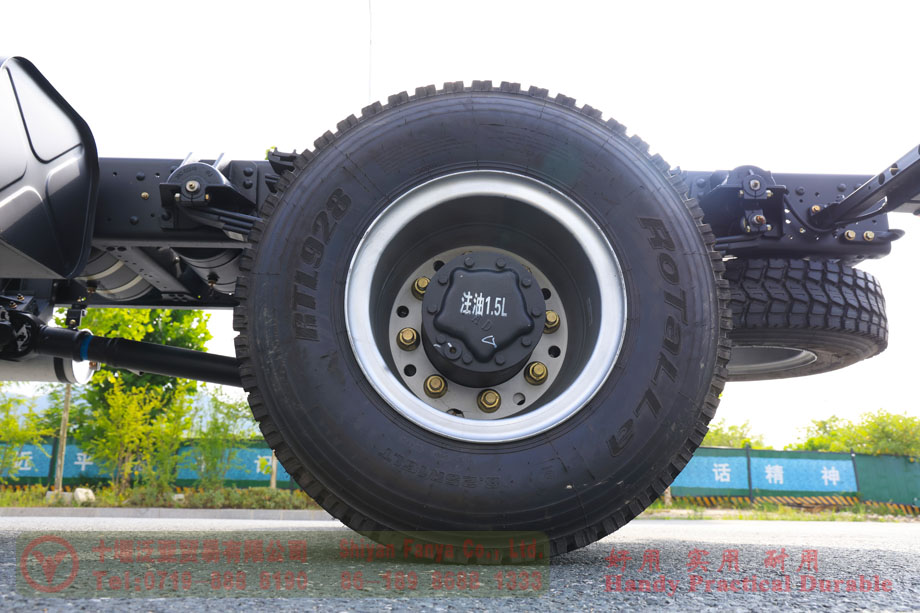

| Tyre | 8.25R16LT (6+1) |
| Circuit | 24V circuit system |
| Optional | Air conditioner |
| Other | Buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |
| Performance Parameter | |||
| Chassis Dimension(mm) | 6080 × 2290 × 2700(Length×Width×Height) | ||
| Superstructure length(mm) | ≥4300 | ||
| Total Mass(kg) | 12500 | Curb Weight(kg) | 3950 |
| Wheelbase（mm） | 3700 | Axlebase(mm) | 1820/1750 |
| Approach Angle (°) | 37 | Departure Angle (°) | 30 |
| Ground Clearance(mm) | 300 | Fording depth (mm) | 630 |

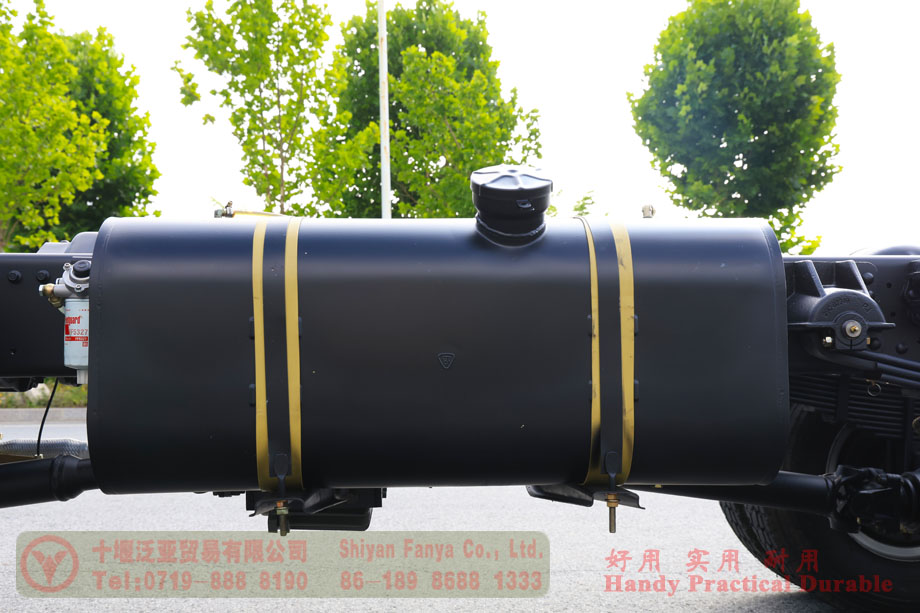

| Max. Speed(km/h) | 85 | Tank Capacity(L) | 180 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
