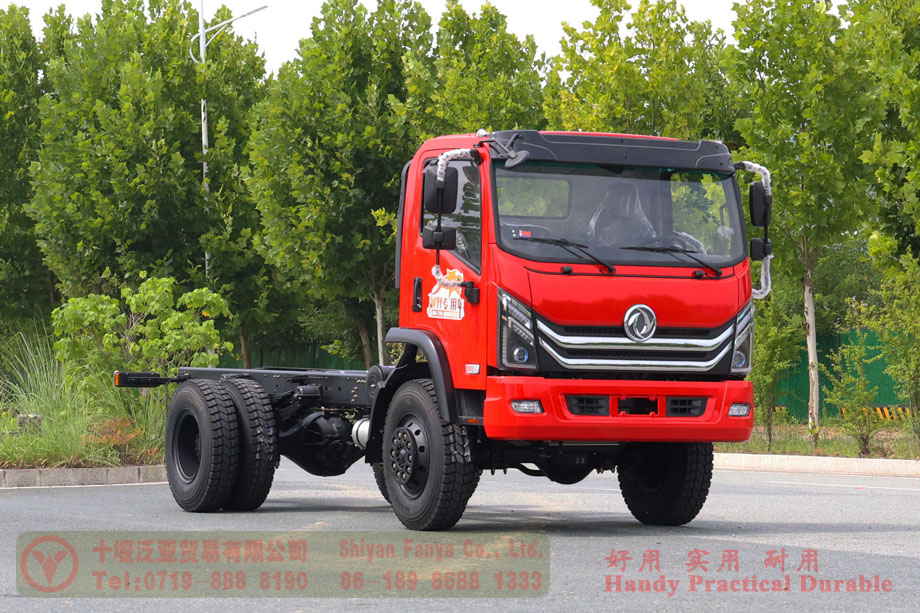

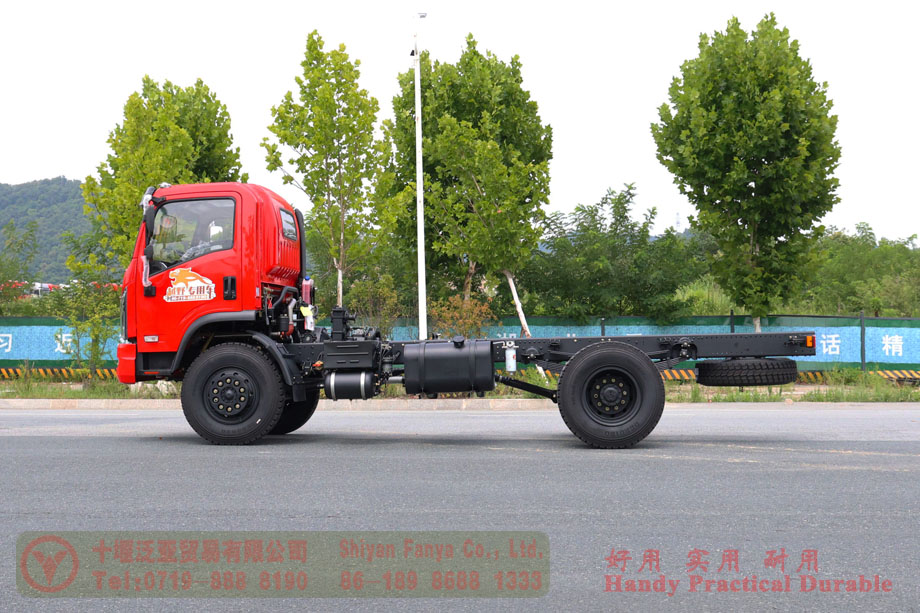

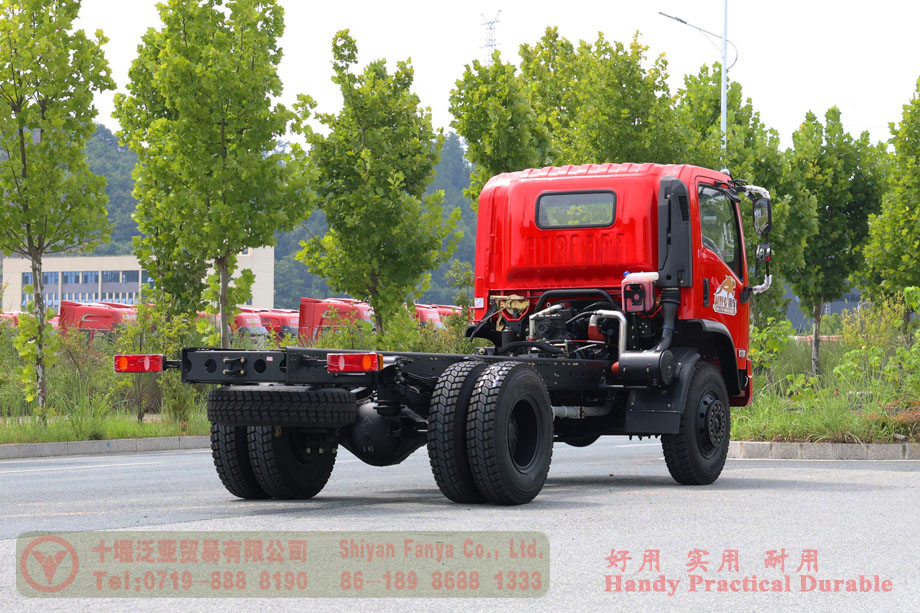

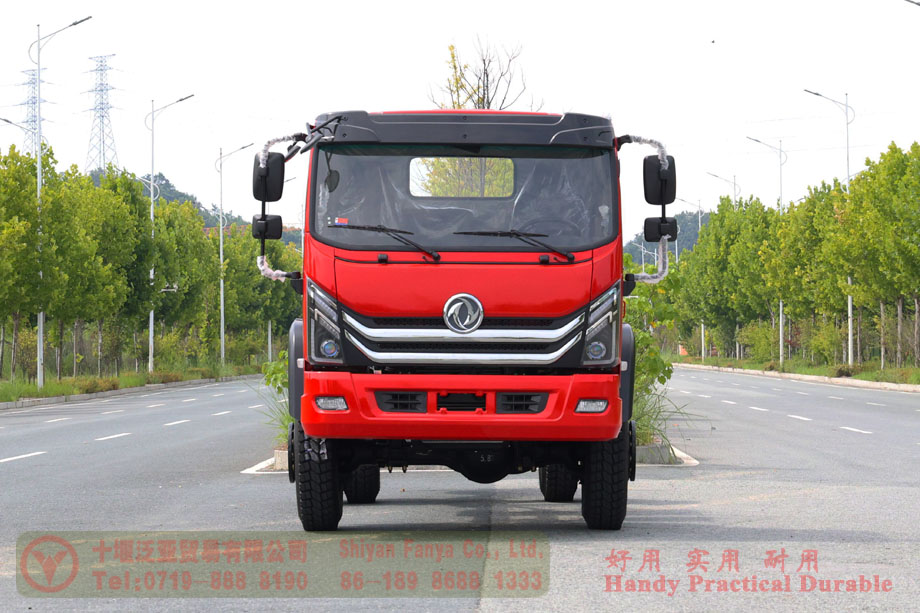

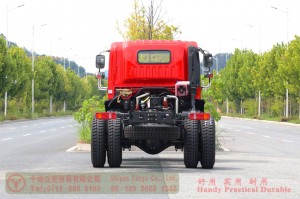

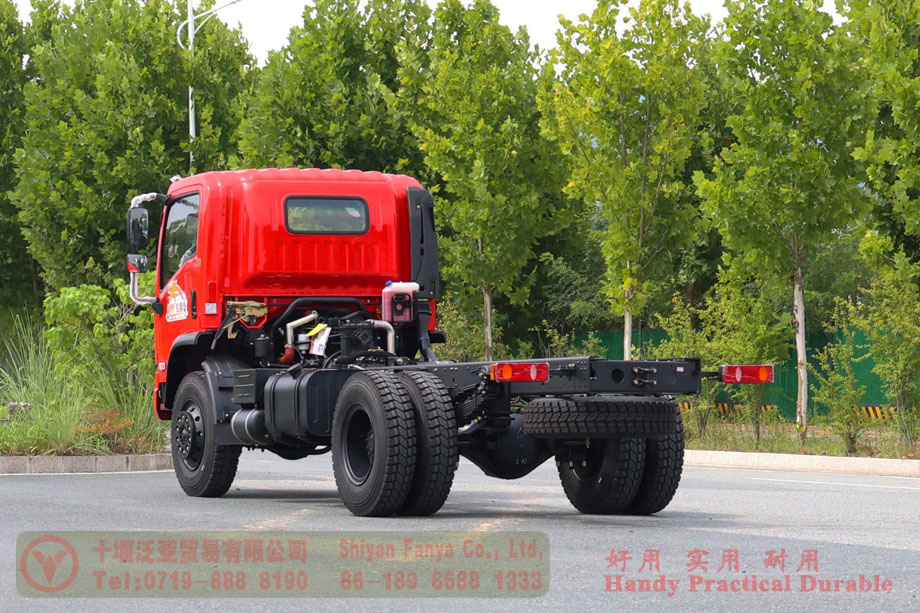

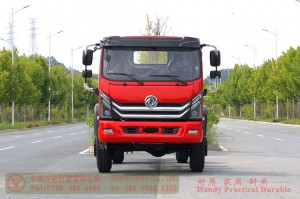

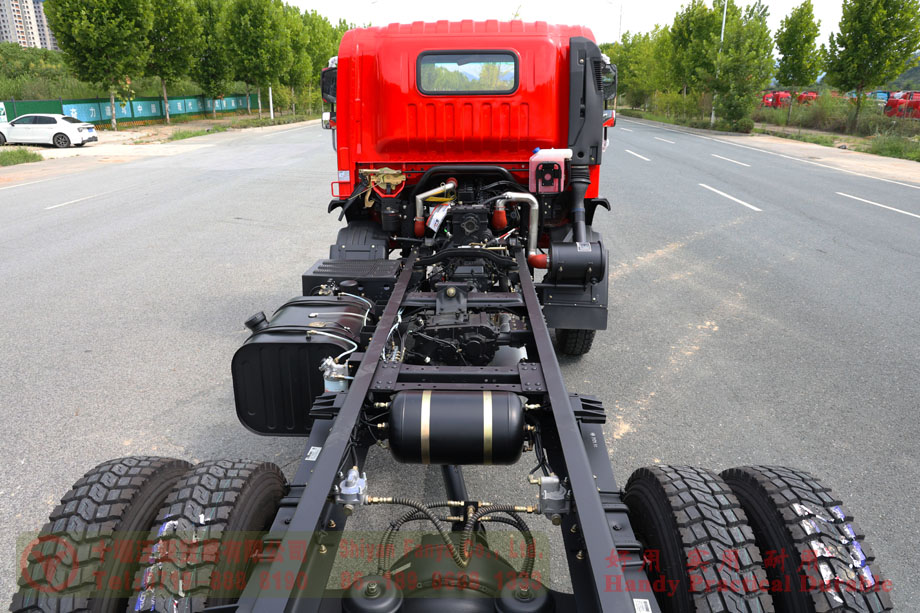

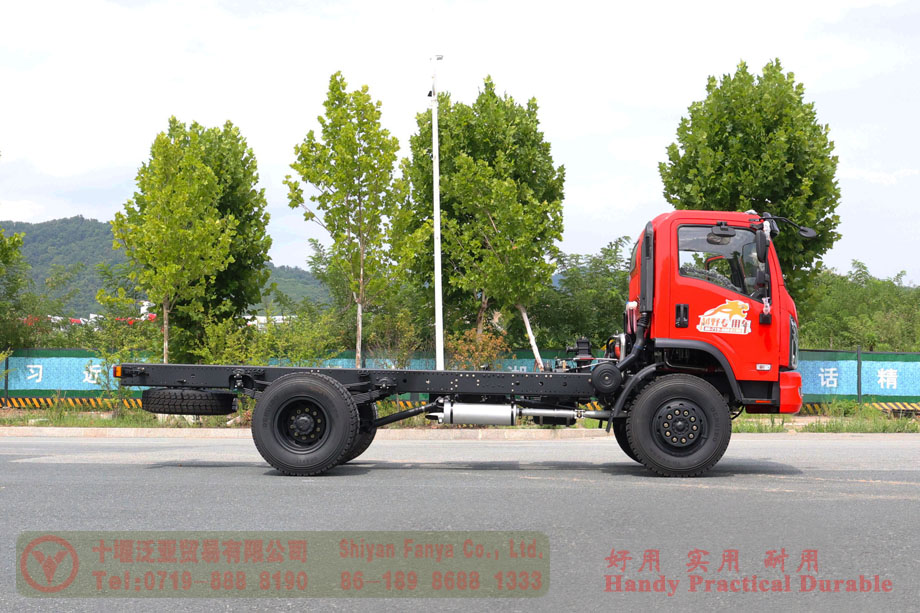

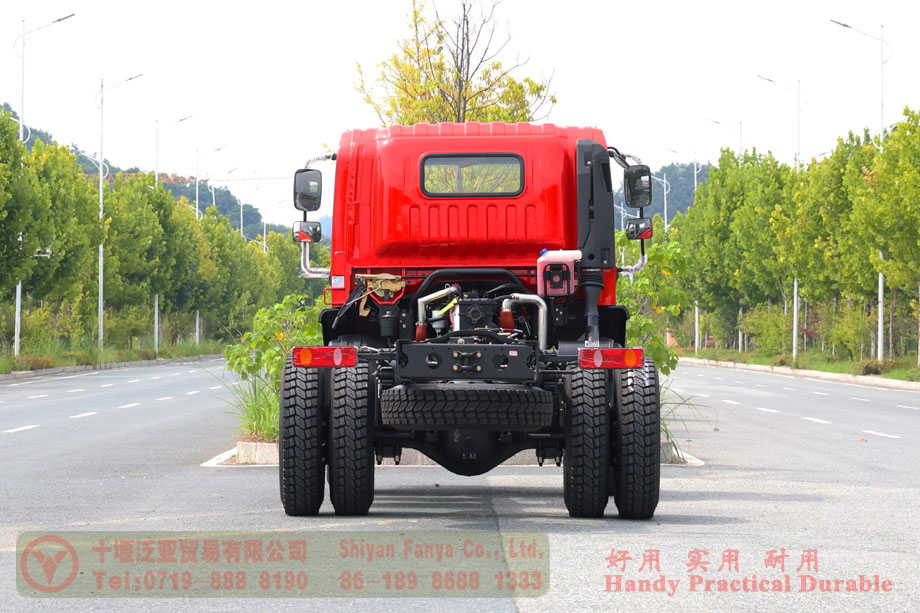

Dongfeng 4*4 flathead Fire truck Chassis–170hp diesel off-road truck Chassis–Custom Chassis Export Manufacturer
Product Description
4×4 Dongfeng truck chassis (4×2 drive available as an option); the 4×4 configuration is suitable for use on rough terrain and offers superior off-road performance, while the 4×2 configuration is ideal for urban roads, providing a lightweight and fuel-efficient option. Custom modifications and upgrades can be made according to customer requirements.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B170 33 |

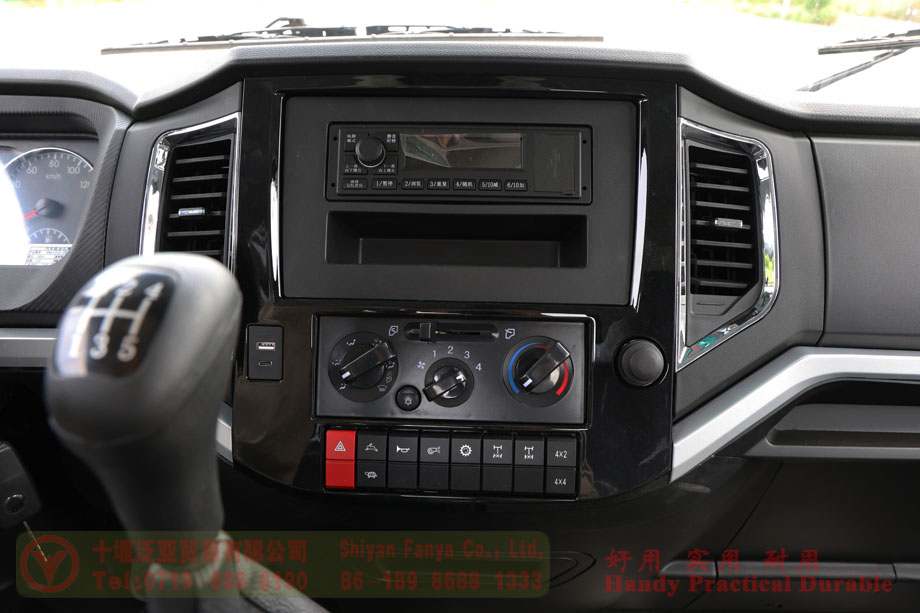

| Gearbox | Mechanical Manual Five speed |
| Transfer case | High-low speed |

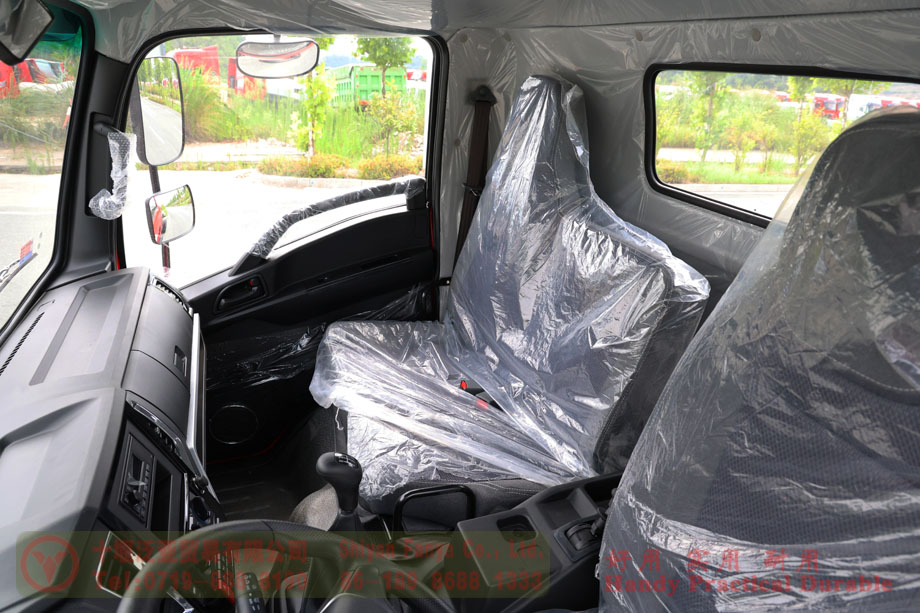

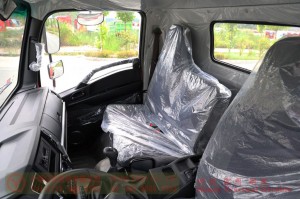

| Cab | Flathead single row |
| Axle | Max. Load 5Tons/10Tons (Front/Rear) |

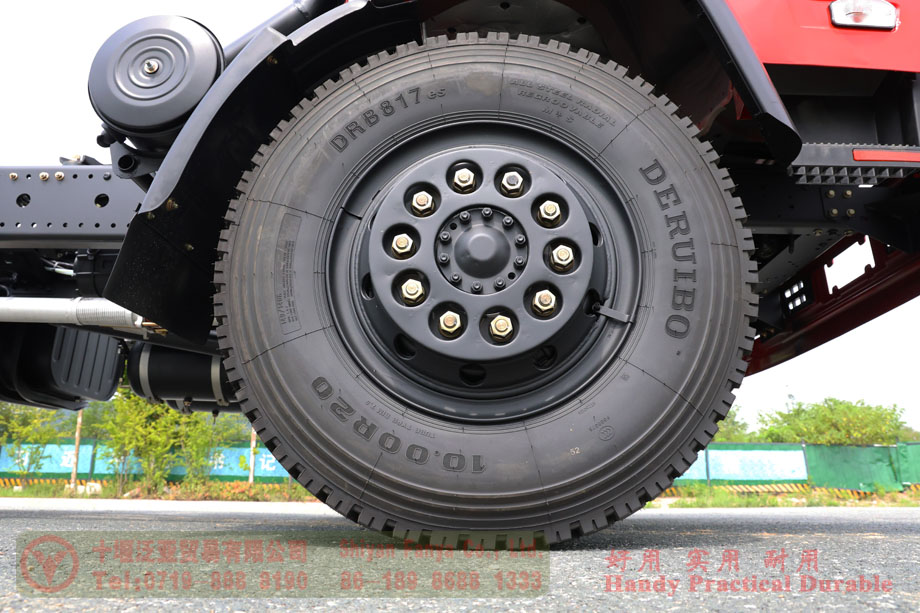

| Tyre | 10.00R20 (6+1) |
| Circuit | 24V circuit system |
| Optional | Air conditioner |
| Other | Buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |
| Performance Parameter | |||
| Chassis Dimension(mm) | 7240 × 2500 × 2720(Length×Width×Height) | ||
| Superstructure length(mm) | ≥4570 | ||
| Total Mass(kg) | 12500 | Curb Weight(kg) | 5230 |
| Wheelbase（mm） | 3800 | Axlebase(mm) | 1850/1780 |
| Approach Angle (°) | 24 | Departure Angle (°) | 22 |
| Ground Clearance(mm) | 260 | Fording depth (mm) | 560 |

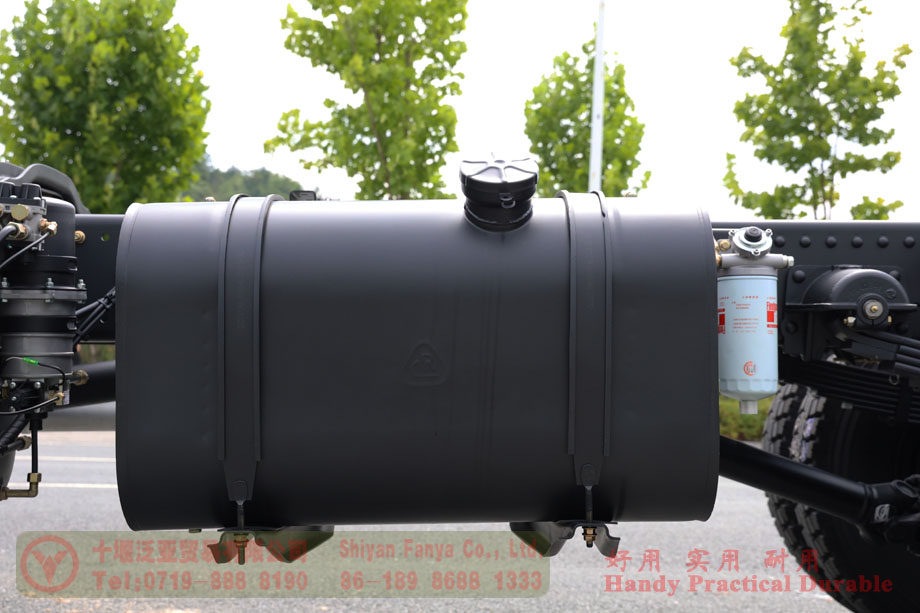

| Max. Speed(km/h) | 85 | Tank Capacity(L) | 260 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
