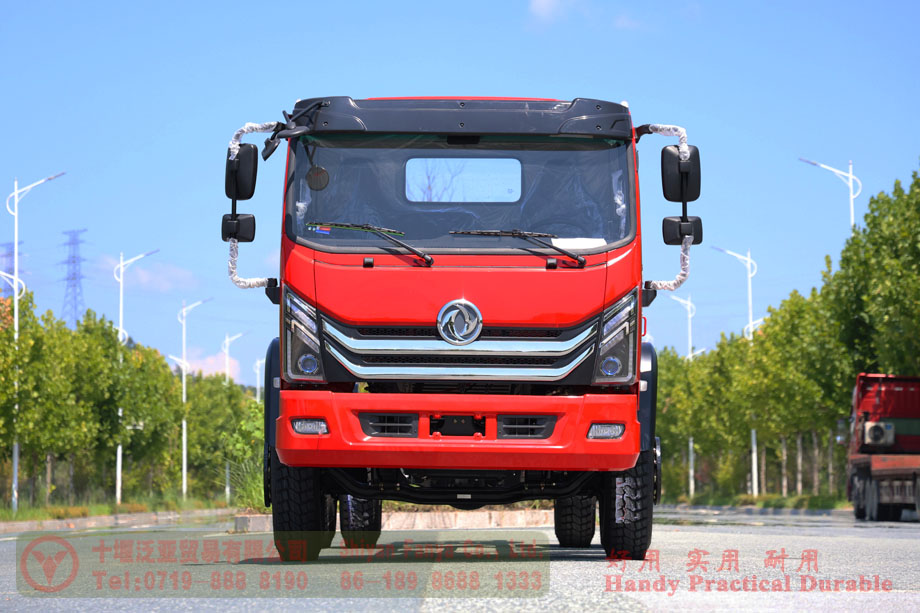

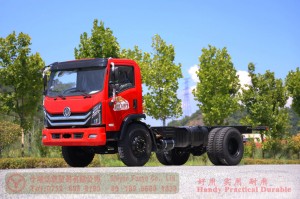

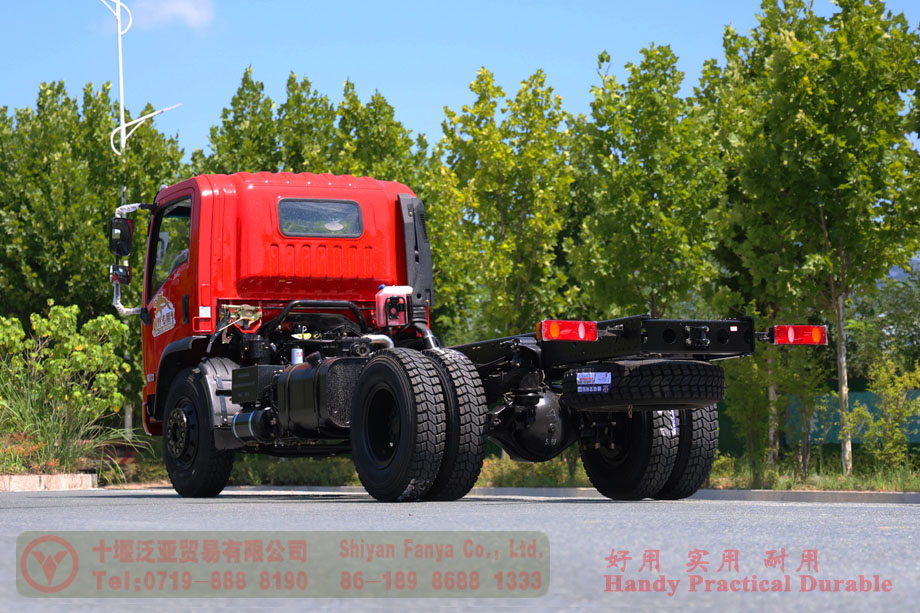

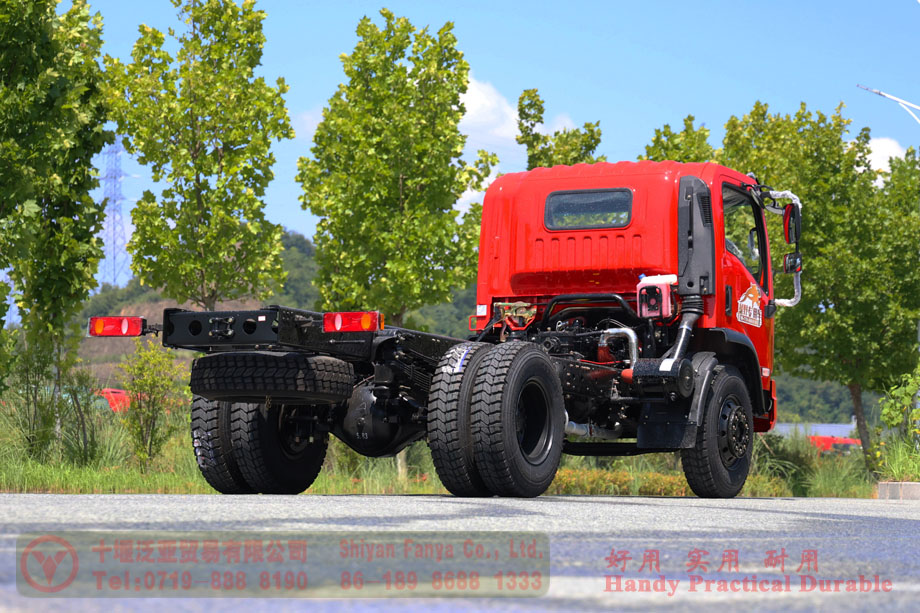

Dongfeng 4*2 flathead Fire truck Chassis–170hp diesel off-road truck Chassis–Custom Chassis Export Manufacturer
Product Description
4×2 Dongfeng truck chassis is ideal for urban roads, providing a lightweight and fuel-efficient option. Custom modifications and upgrades can be made according to customer requirements.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual Five speed |
| Cab | Flathead single row |
| Axle | Max. Load 5Tons/10Tons (Front/Rear) |

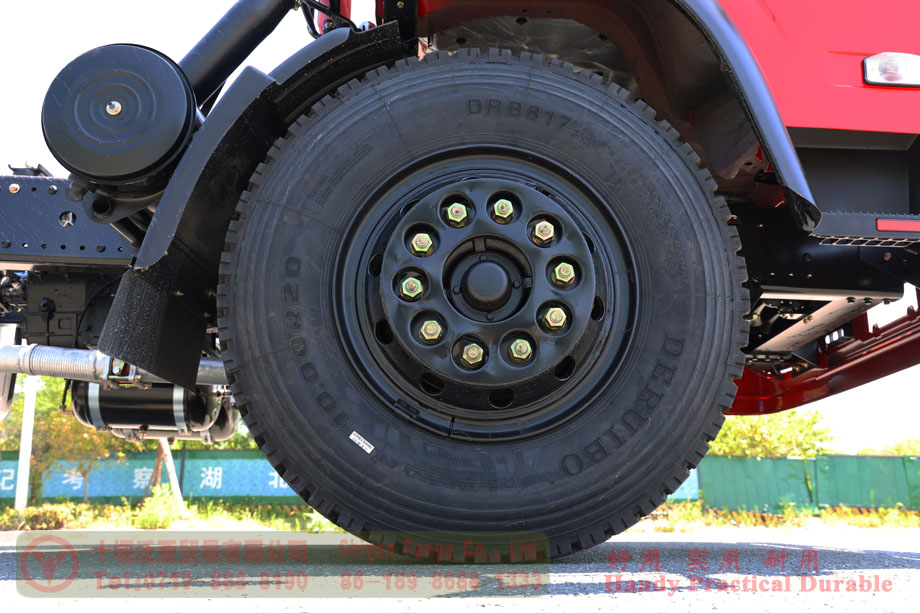

| Tyre | 10.00R20 (6+1) |
| Circuit | 24V circuit system |
| Performance Parameter | |||
| Chassis Dimension(mm) | 7160 × 2480 × 2720(Length×Width×Height) | ||
| Superstructure length(mm) | ≥4650 | ||
| Total Mass(kg) | 15000 | Curb Weight(kg) | 5230 |
| Wheelbase（mm） | 3800 | Axlebase(mm) | 1900/1850 |
| Approach Angle (°) | 21 | Departure Angle (°) | 18 |
| Ground Clearance(mm) | 250 | Fording depth (mm) | 550 |

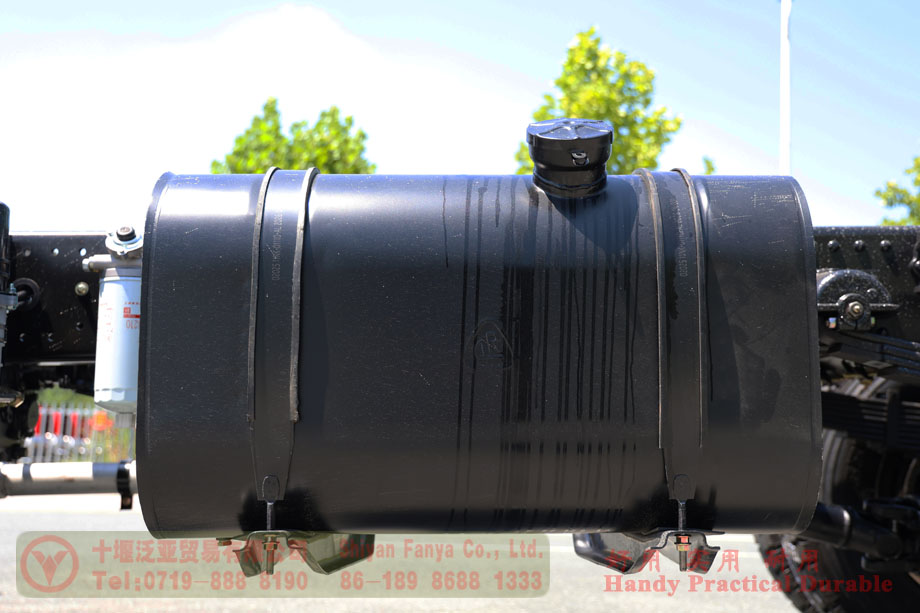

| Max. Speed(km/h) | 85 | Tank Capacity(L) | 260 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
