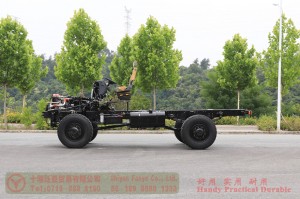

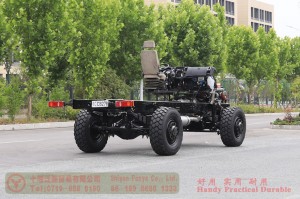

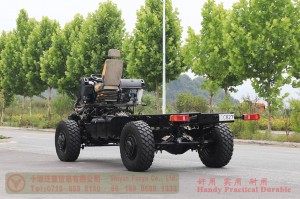

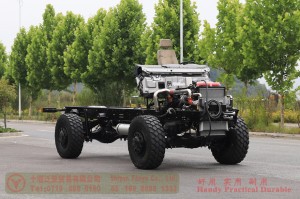

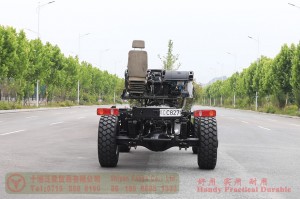

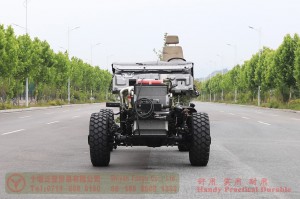

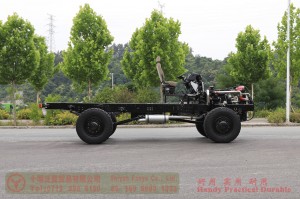

    The 4*4 off-road vehicle class III chassis is a chassis model designed one-to-one by our company according to the customer’s requirements. After multi-faceted design, testing and perfecting, the chassis’ passability reaches the customer’s indexes. The chassis cab and top load are perfected by customers themselves, and will be exported to Africa for use.

    Product Parameter

    Basic Configuration

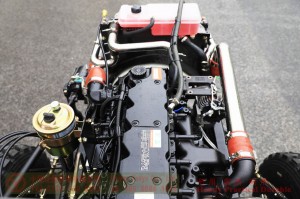

    Engine Cummins ISDe300 40
    Gearbox Shuangte FCGA140E automatic transmission
    Transmission High and Low Speed
    Axle Max. Load 7Tons/13Tons (Front/Rear)

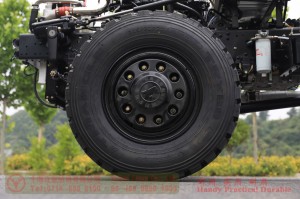

    Tyre 365/80R20
    Frame 860×212
    Suspension 11/12
    Performance Parameter
    Type III chassis dimensions  6690× 2440× 2770(Length×Width×Height)(Floor to seat)
    The upper plane of the rear end of the frame is off the ground(mm) 1260
    Axlebase(mm) 1990 Wheelbase(mm) 3800
    Max. Power(kW/rpm) 221 Displacement(L) 6.7
    Max. torque(N.m) 1100 Departure Angle (°) 32
    Approach Angle (°) 26 Overrun height (mm) 570

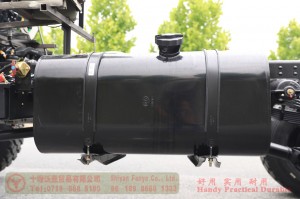

    Ground Clearance(mm) 355 Fuel tank volume(L) 300
    Max. speed(km/h) 85

    This parameter is for reference only. The margin of error is plus or minus three percentage points.
