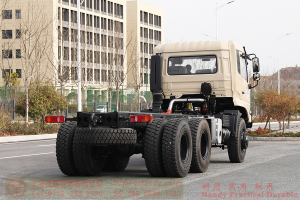

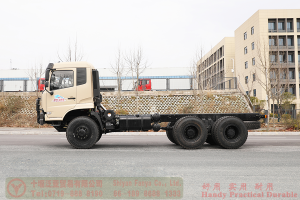

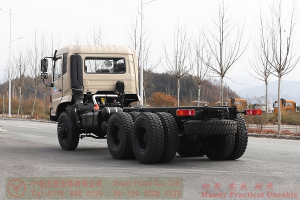

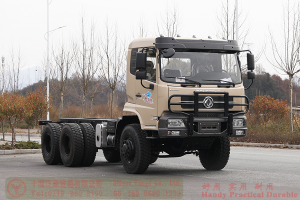

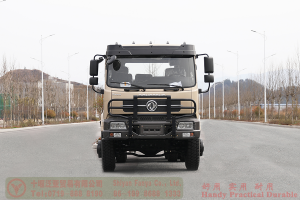

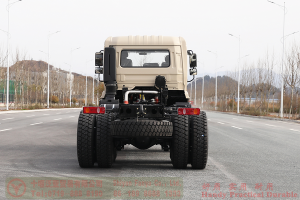

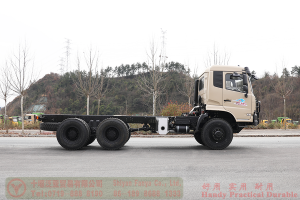

Dongfeng 6*6 off-road truck chassis–260 HP dump truck chassis–Dongfeng off-road truck export manufacturer
Product Description
This vehicle is mainly used for firepower mobility, troop mobility and transportation of equipment and materials, attempting combat and security tasks, and can be converted into various types of special vehicles. Equipped with the whole army troops, towing and carrying heavy weapons and equipment and combat materials; equipped with motorized troops, conveying soldiers; for the military types of various types of armed and the whole army of various professions to provide professional chassis. The vehicle is equipped with cold start system, secondary fuel tank, oil drum, water drum, tarpaulin pole and other additional devices, optional winch.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins C260 33 |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |
| Cab | Dongfeng Flathead row half |
| Axle | Max. Load 7Tons/13Tons/13Tons (Front/Middle/Rear) |
| Frame | 860×280×(8+6)mm |
| Tyre | 12.00R20 (10 + 1) |
| Performance Parameter | |||
| Chassis Dimension(mm) | 8260 × 2570 × 3120(Length×Width×Height) | ||
| Modification size(mm) | ≥5670 | ||
| Total Mass(kg) | 25000 | Curb Weight(kg) | 12600 |
| Max. Power(kW/rpm) | 191 | Max. Torque(N.m) | 1090 |
| Wheelbase(mm) | 3650+1350 | Displacement(L) | 8.3 |
| Approach Angle (°) | 26 | Departure Angle (°) | 23 |
| Ground Clearance(mm) | 350 | Fording depth (mm) | 710 |
| Axlebase(mm) | 2000/1828 | Tank Capacity(L) | 300 |
| Max. Speed(km/h) | 90 | ||
This parameter is for reference only. The margin of error is plus or minus three percentage points.
