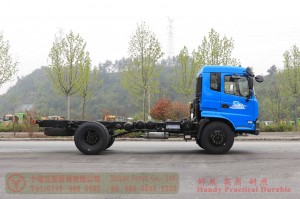

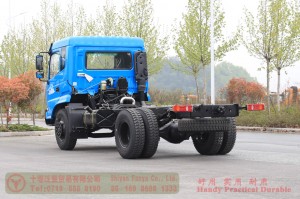

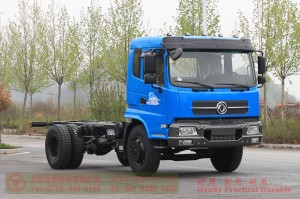

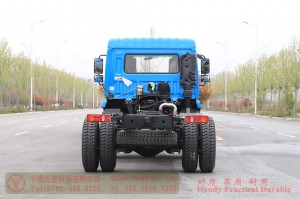

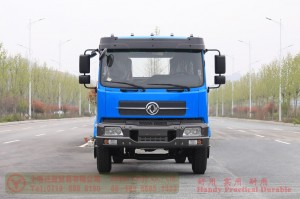

210 HP Rear Dual Tire Special Purpose Chassis–Dongfeng Flathead 4*2 Chassis–Off-road Truck Export Manufacturer
Product Description

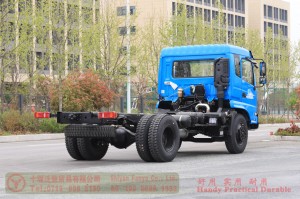

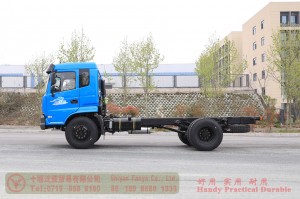

4*2 Dongfeng light truck chassis, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields. Whether it’s a city road or a remote mountain road, with its excellent off-road performance, unparalleled driving experience.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Cummins ISDe210 30 |
| Gearbox | Mechanical Manual six speed |

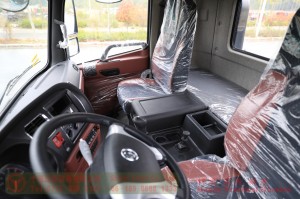

| Cab | Flathead one and a half row |
| Axle | Max. Load 5Tons/10Tons (Front/Rear) |

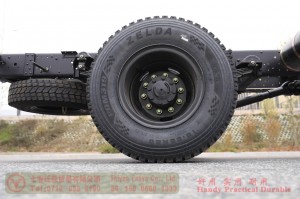

| Tyre | 10.00R20(6 + 1) |
| Frame | 860*245mm |
| Performance Parameter | |||
| Chassis Dimension(mm) | 7380× 2480 × 2900(Length×Width×Height) | ||
| Modification Dimension(mm) | ≥4860 | ||
| Upper frame plane off the ground(mm) | 1160 | ||
| Total Mass(kg) | 14800 | No. of Members | 3 |
| Max. Power(kW/rpm) | 155 | Axlebase(mm) | 1960/1860 |
| Wheelbase(mm) | 3950 | Displacement(L) | 6.7 |
| Approach Angle (°) | 21 | Departure Angle (°) | 24 |
| Fording Depth(mm) | 490 | Ground Clearance(mm) | 280 |

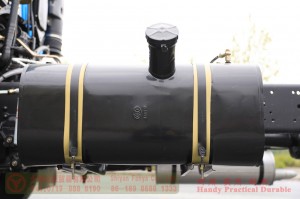

| Max. Speed(km/h) | 90 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
