Dongfeng 210 hp sprinkler chassis–Dongfeng Flathead 4*2 Chassis–Off-road Truck Export Manufacturer

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product Description

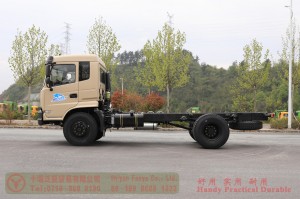

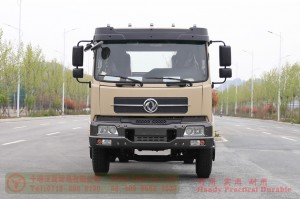

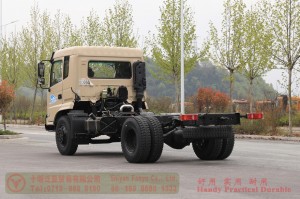

    4*2 Dongfeng sprinkler chassis, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields. Whether it’s a city road or a remote mountain road, with its excellent off-road performance, unparalleled driving experience.

    Product Parameter

    Basic Configuration
    Drive Mode 4×2
    Engine Cummins ISDe210 30

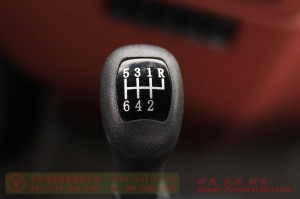

    Gearbox Mechanical Manual six speed

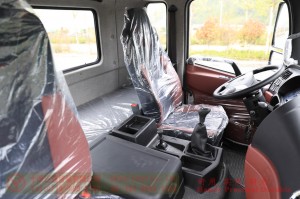

    Cab Flathead one and a half row
    Axle Max. Load 5Tons/10Tons (Front/Rear)
    Tyre 10.00R20(6 + 1)
    Frame 860*245mm
    Performance Parameter
    Chassis Dimension(mm) 7380× 2480 × 2900(Length×Width×Height)
    Modification Dimension(mm) ≥4860
    Upper frame plane off the ground(mm) 1160
    Total Mass(kg) 14800 No. of Members 3
    Max. Power(kW/rpm) 155 Axlebase(mm) 1960/1860
    Wheelbase(mm) 3950 Displacement(L) 6.7
    Approach Angle (°) 21 Departure Angle (°) 24
    Fording Depth(mm) 490 Ground Clearance(mm) 280
    Max. Speed(km/h) 90 Tank Capacity(L) 160

    This parameter is for reference only. The margin of error is plus or minus three percentage points.
