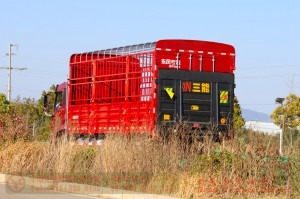

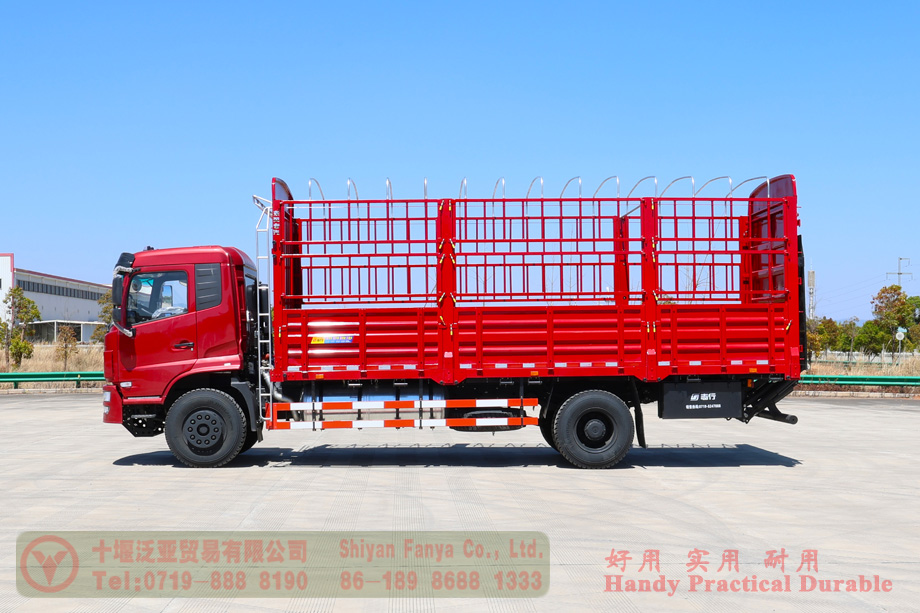

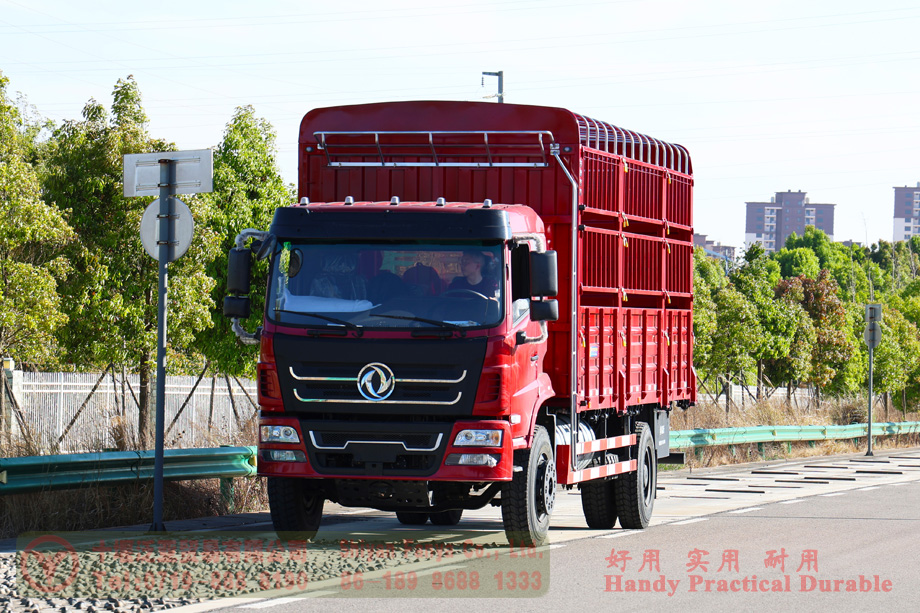

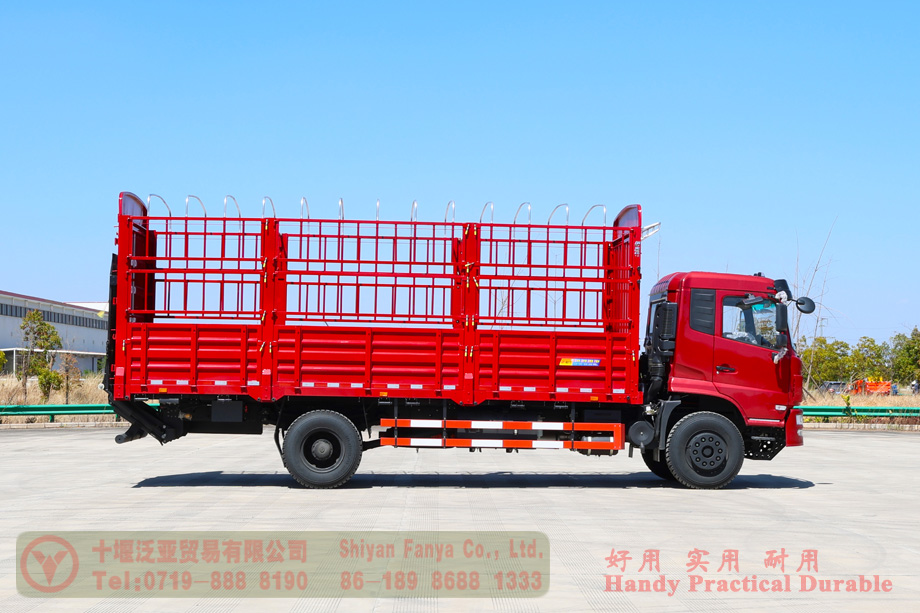

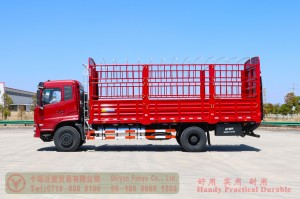

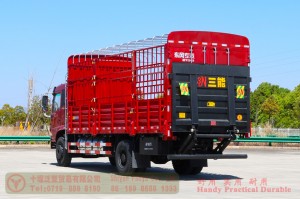

Dongfeng 4×2 Hydraulic Tailgate Truck — 210 HP Box Truck — Commercial Truck Export Manufacturer
Product Description

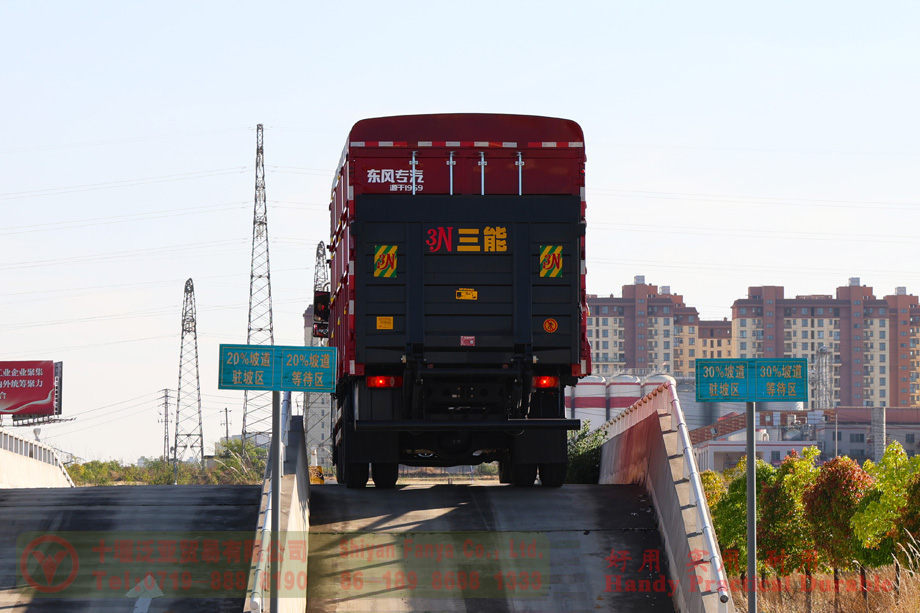

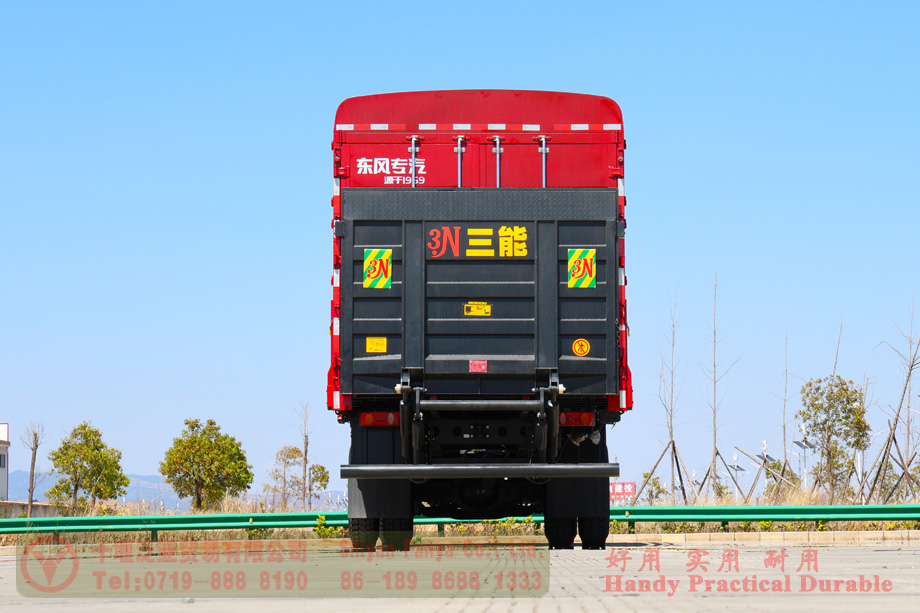

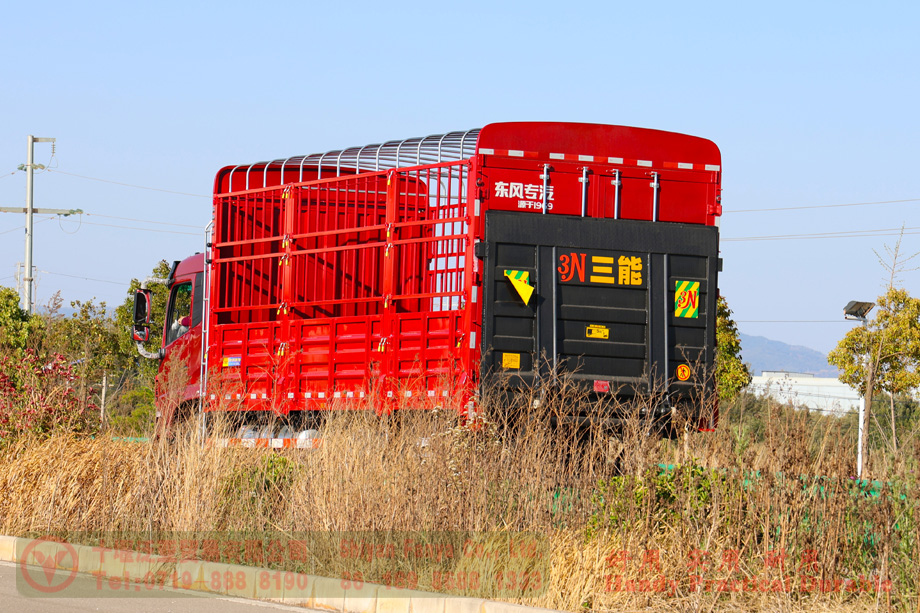

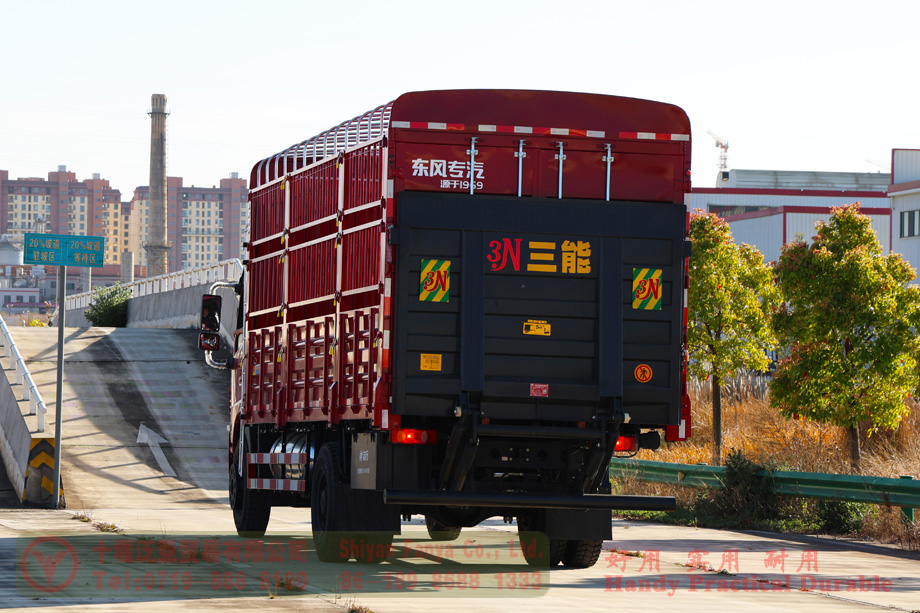

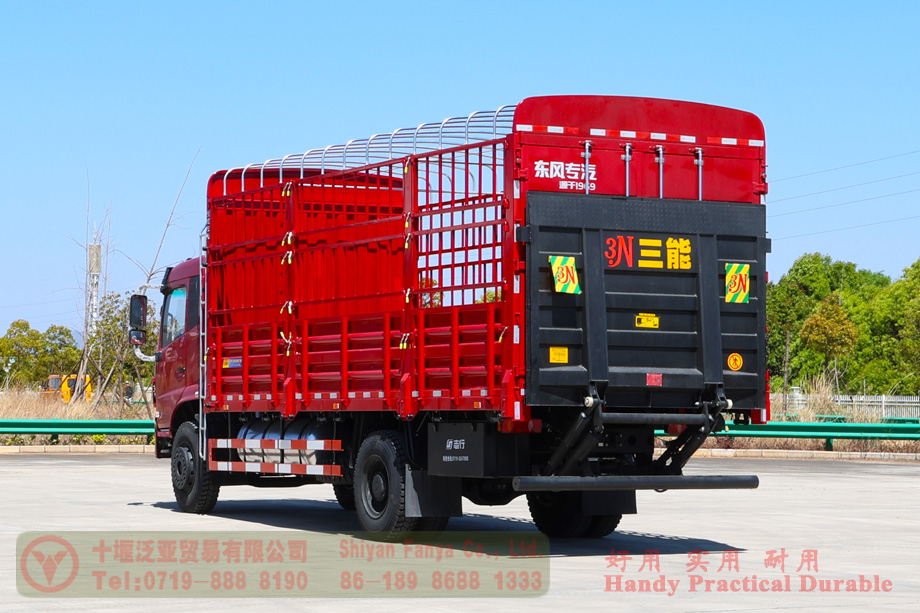

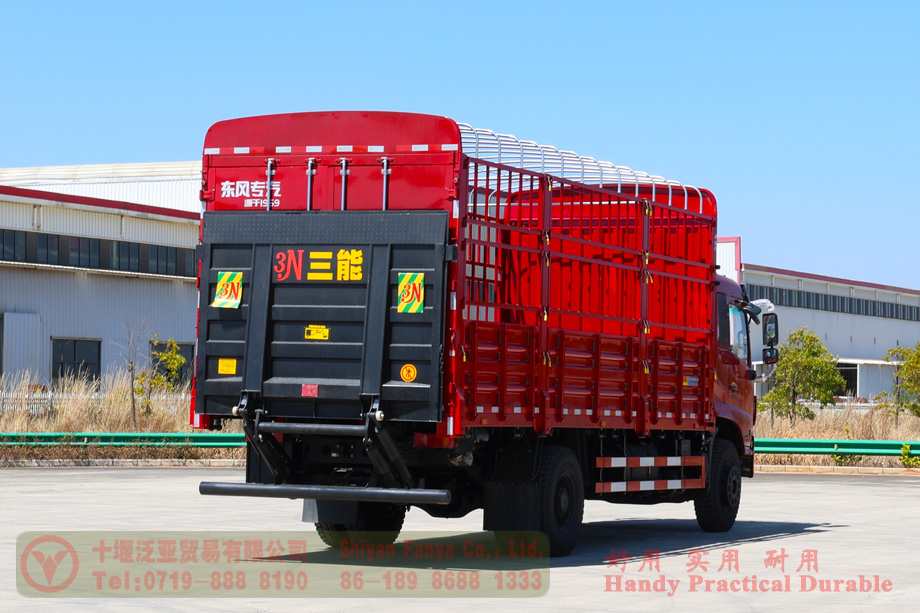

A hydraulic tailgate is a hydraulic lifting and loading/unloading device installed at the rear of a truck or trailer. Powered by a vehicle-mounted battery, it uses hydraulic cylinders to raise, lower, and tilt the platform. It replaces manual loading and unloading, enabling efficient transfer of cargo between the ground and the cargo compartment, thereby significantly improving transportation and handling efficiency. It is widely used in logistics, postal services, and other related fields.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Wechai WD615.62 |
| Gearbox | Mechanical Manual ten speed |

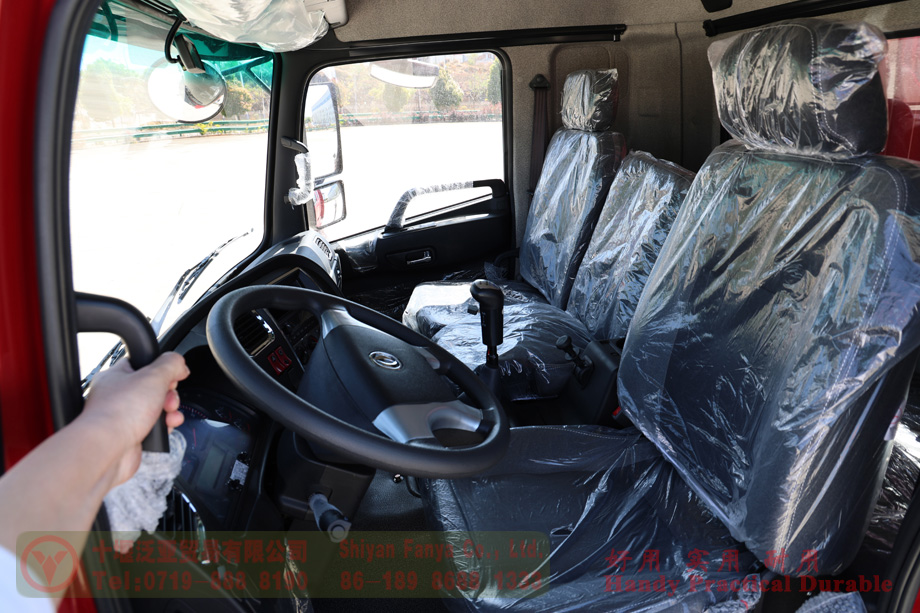

| Cab | Flathead one and a half row |
| Axle | Max. Load 6.5Tons/16Tons (Front/Rear) |
| Tyre | 10.00R20(6 + 1) |
| Suspension | Steel plate springs 9/10+8 |
| Performance Parameter | |||
| Overall Dimension(mm) | 9420× 2640 × 3940(Length×Width×Height) | ||

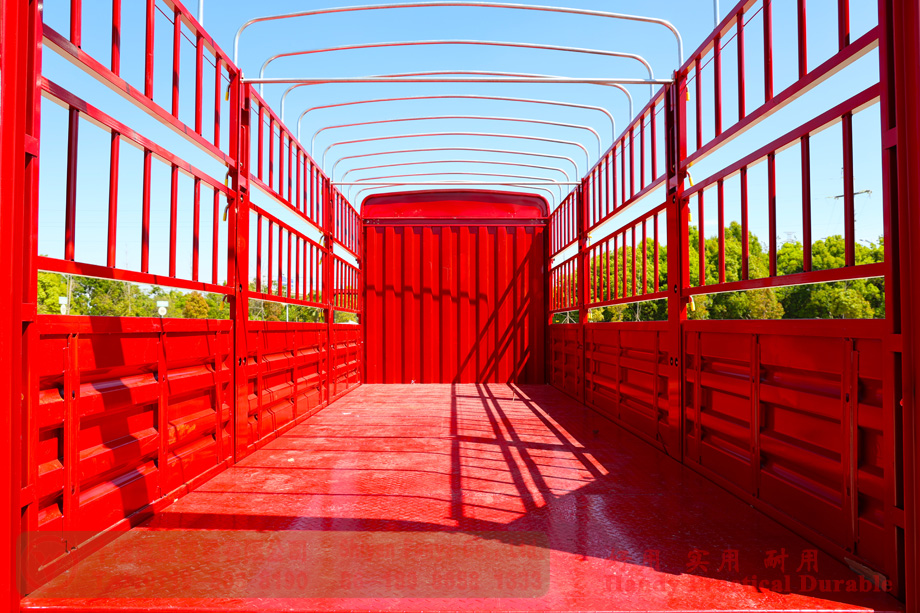

| Cargobox Dimension(mm) | 6800× 2640 × 800 (Length×Width×Height) excluding guardrails | ||
| Total Mass(kg) | 18000 | No. of Members | 3 |
| Max. Power(kW/rpm) | 155 | Axlebase(mm) | 2020/1890 |
| Wheelbase(mm) | 5100 | Displacement(L) | 6.23 |
| Approach Angle (°) | 21 | Departure Angle (°) | 11 |
| Min. ground dearance(mm) | 300 | Obstacle height(mm) | 420 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
