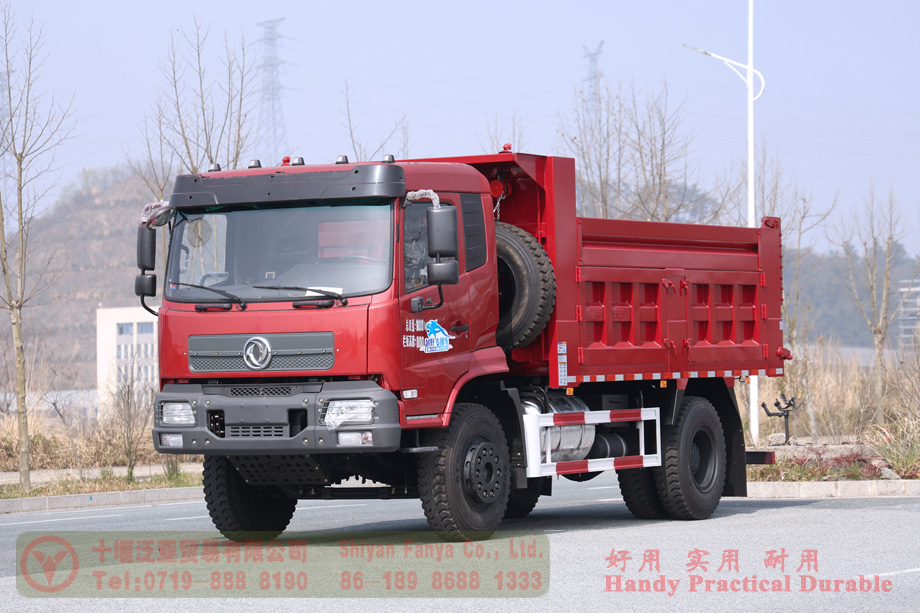

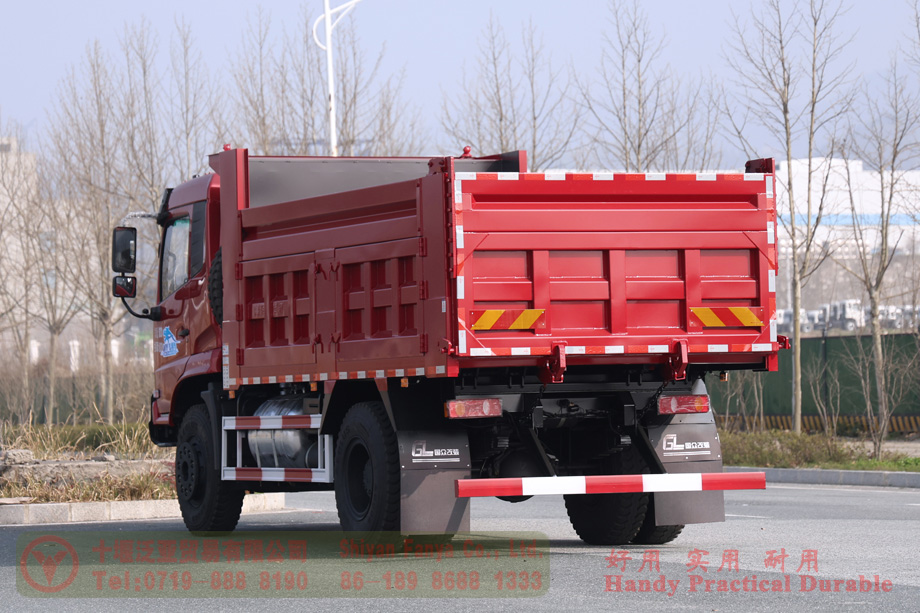

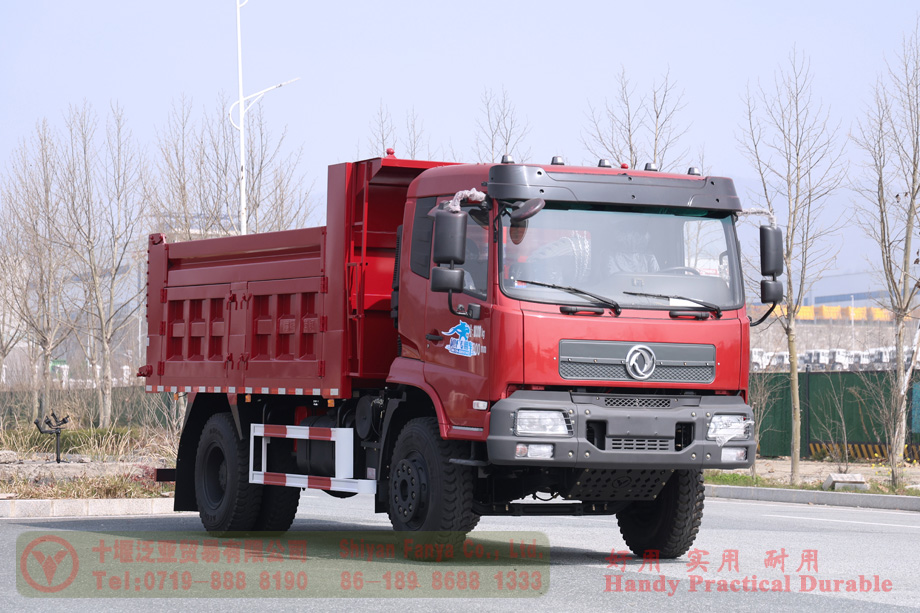

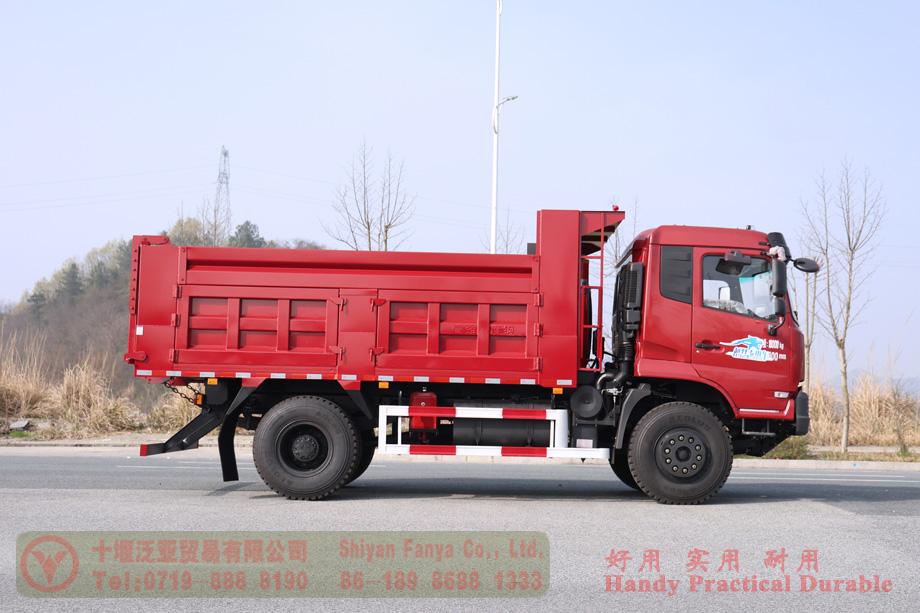

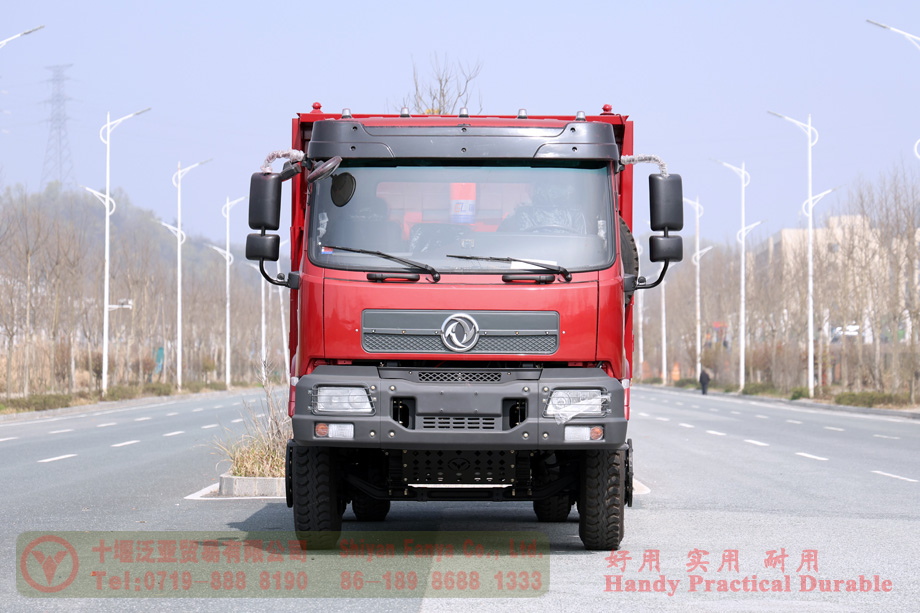

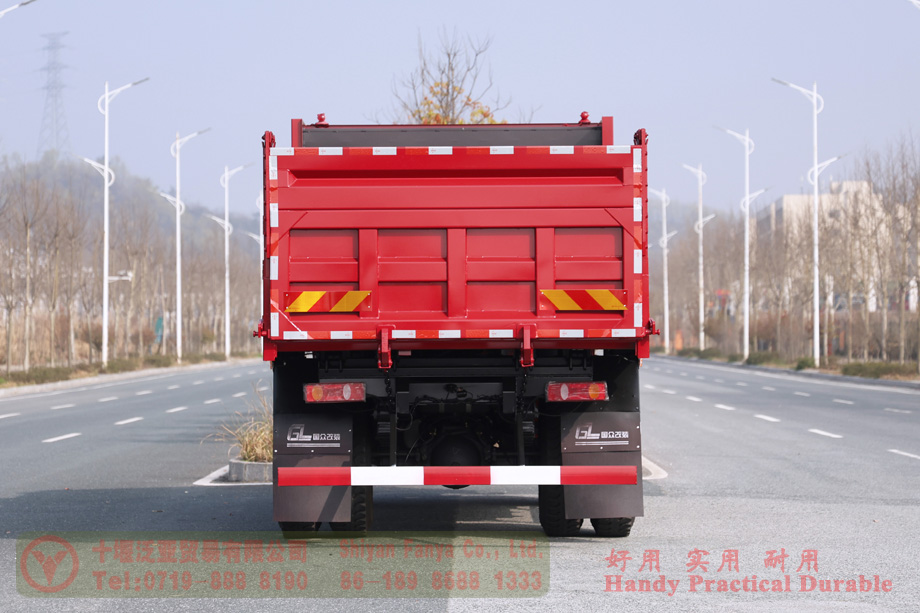

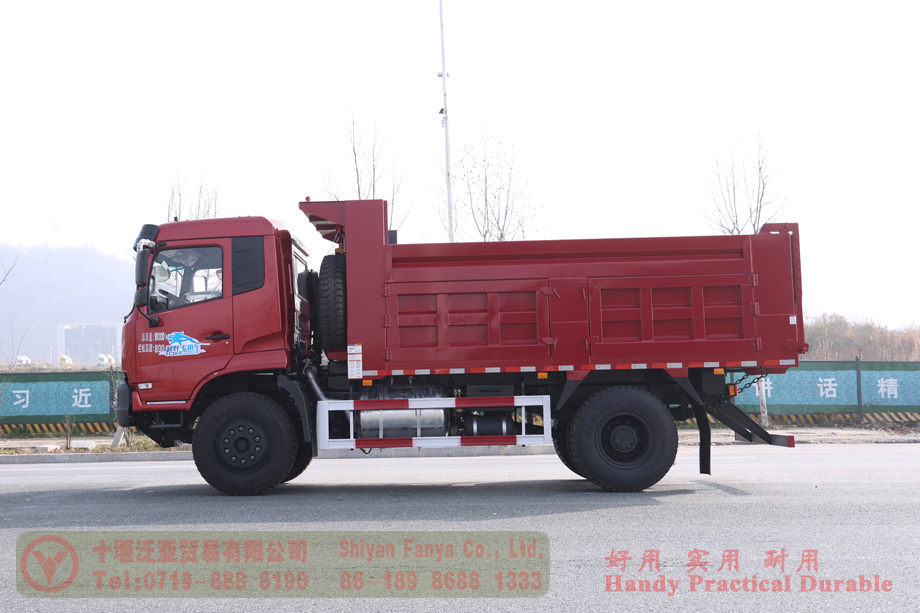

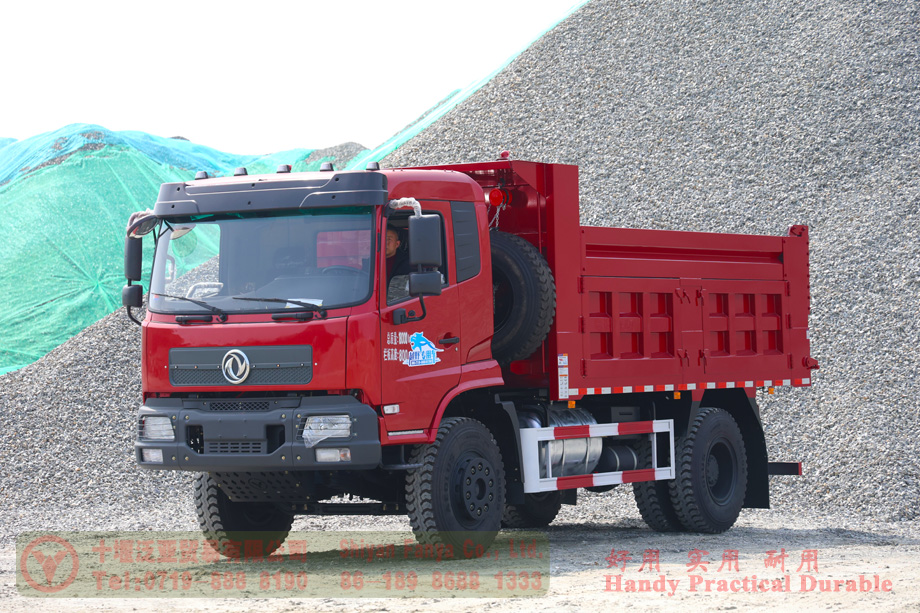

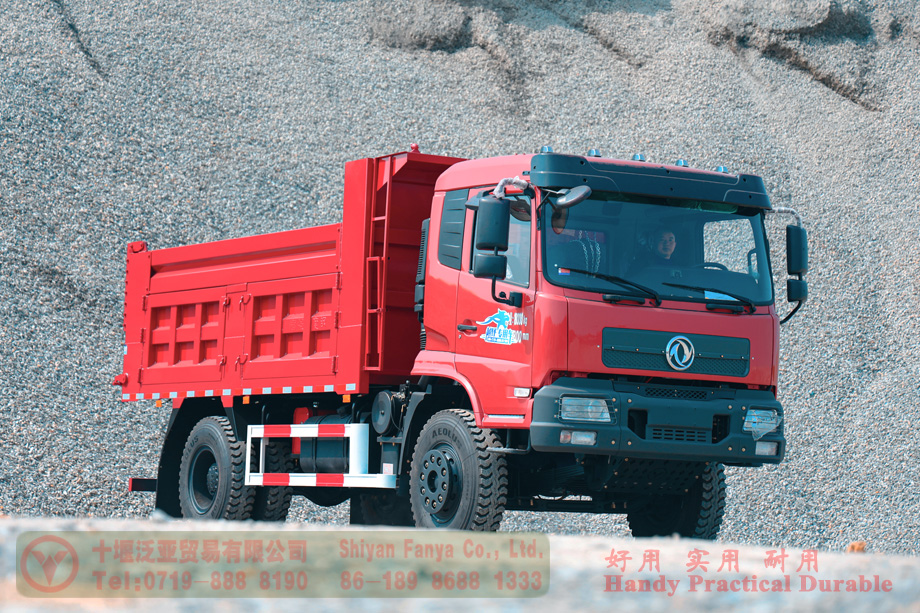

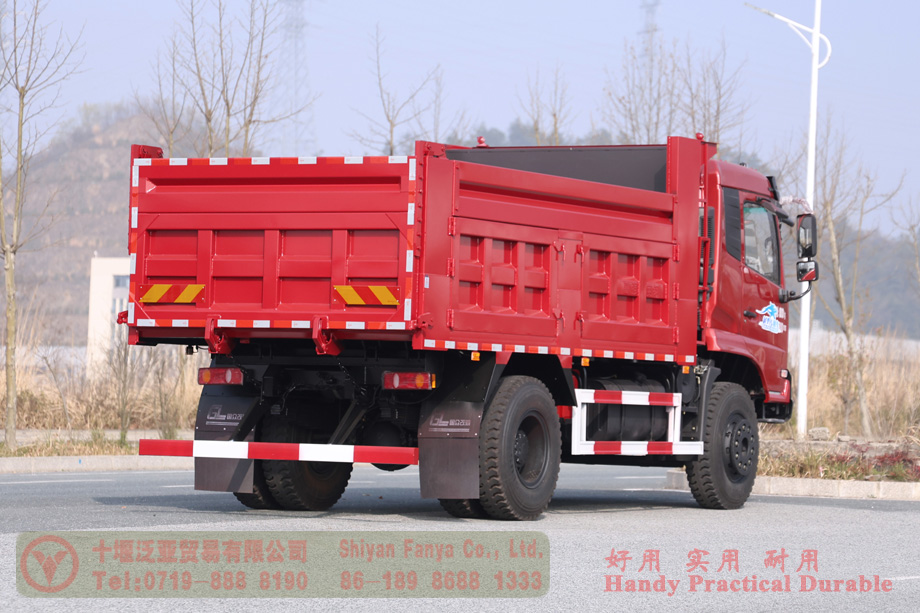

Dongfeng 210 HP Off-road Truck–Dongfeng Flathead 4*2 Dump Truck–Off-road Truck Export Manufacturer
Product Description
Dump trucks, automatic dump trucks, or simply dump trucks generally refer to trucks equipped with or towing an open cargo bed that can be lifted by hydraulic cylinders. These vehicles are commonly used to transport minerals, construction materials, and the resulting debris; in this context, they are often referred to as “dump trucks,” “construction waste haulers,” or “gravel trucks.”
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Wechai 210hp |
| Gearbox | Mechanical Manual ten speed |
| Cab | Flathead one and a half row |
| Axle | Max. Load 5Tons/13Tons (Front/Rear) |

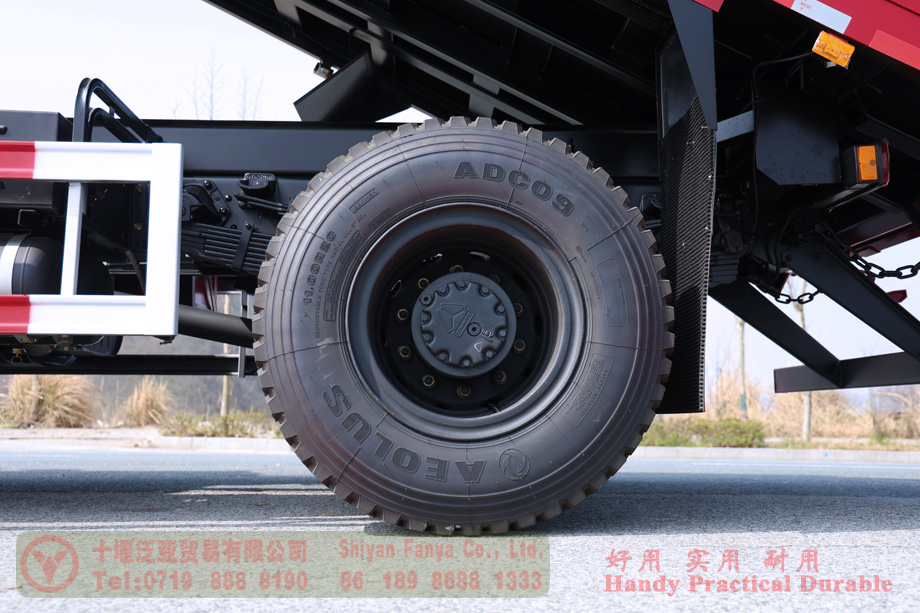

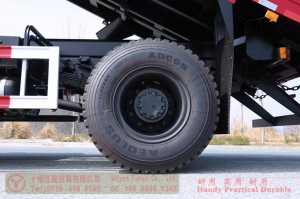

| Tyre | 11.00R20(6 + 1) |
| Suspension | Steel plate springs 12/12+6 |
| Performance Parameter | |||
| Overall Dimension(mm) | 7250× 2580 × 3120(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 4400× 2300 × 800+400(Length×Width×Height) | ||
| Total Mass(kg) | 18000 | No. of Members | 3 |
| Max. Power(kW/rpm) | 155 | Axlebase(mm) | 1955/1815 |
| Wheelbase(mm) | 3950 | Displacement(L) | 6.23 |
| Approach Angle (°) | 24 | Departure Angle (°) | 17 |
| Fording Depth(mm) | 500 | Ground Clearance(mm) | 305 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
