Product Description

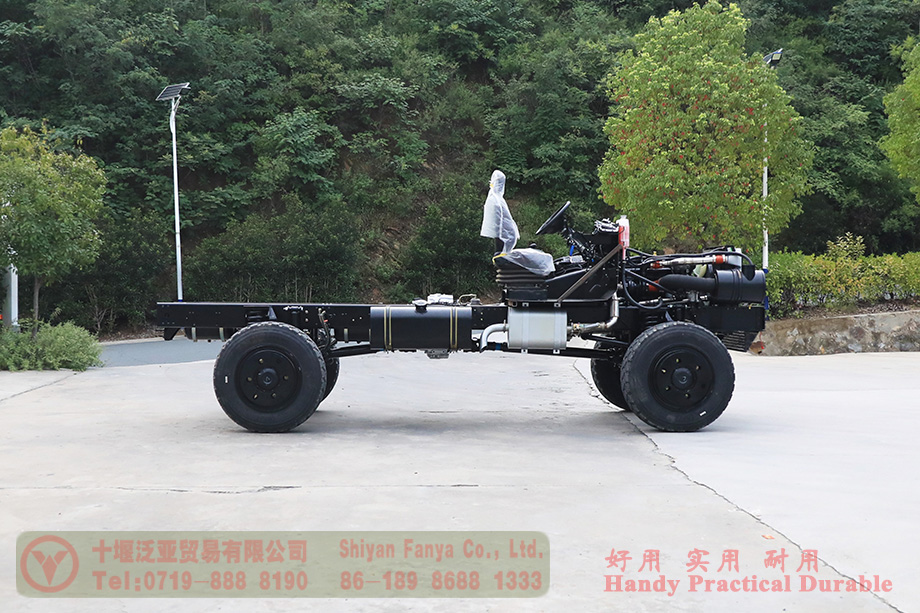

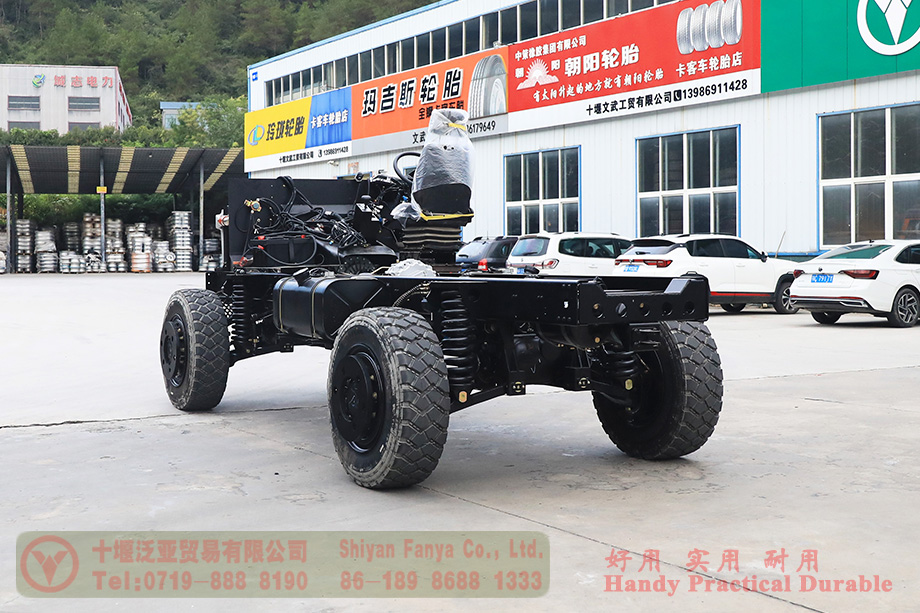

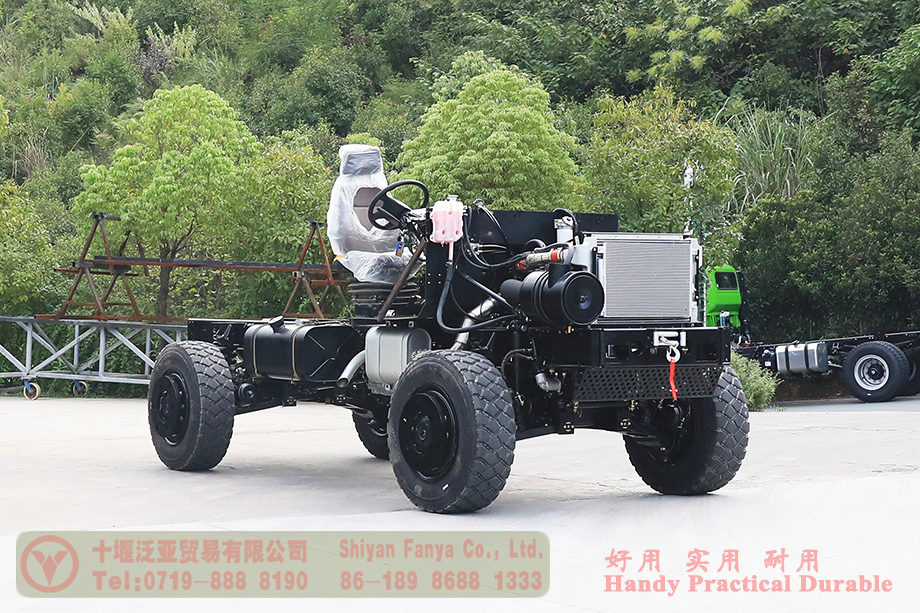

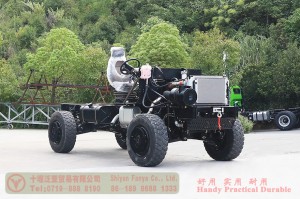

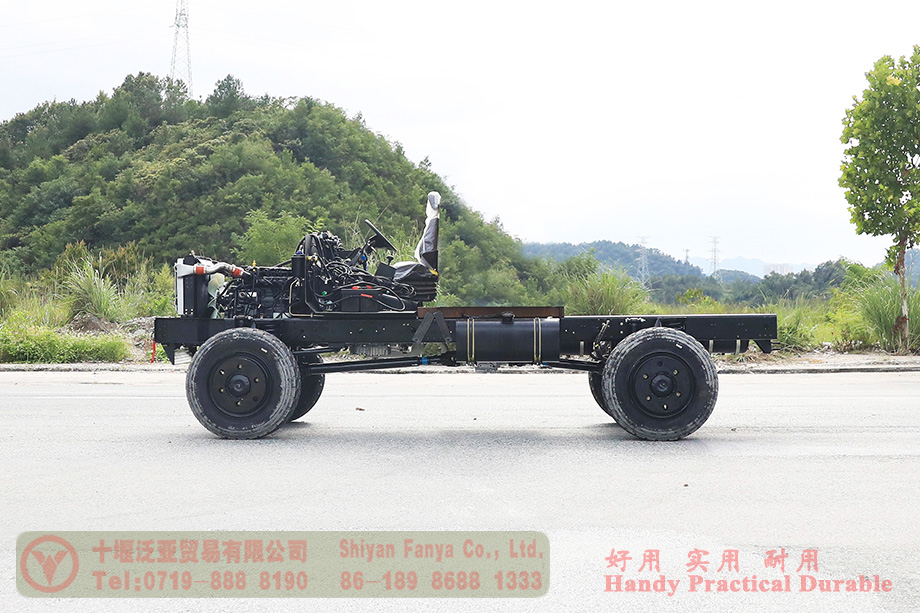

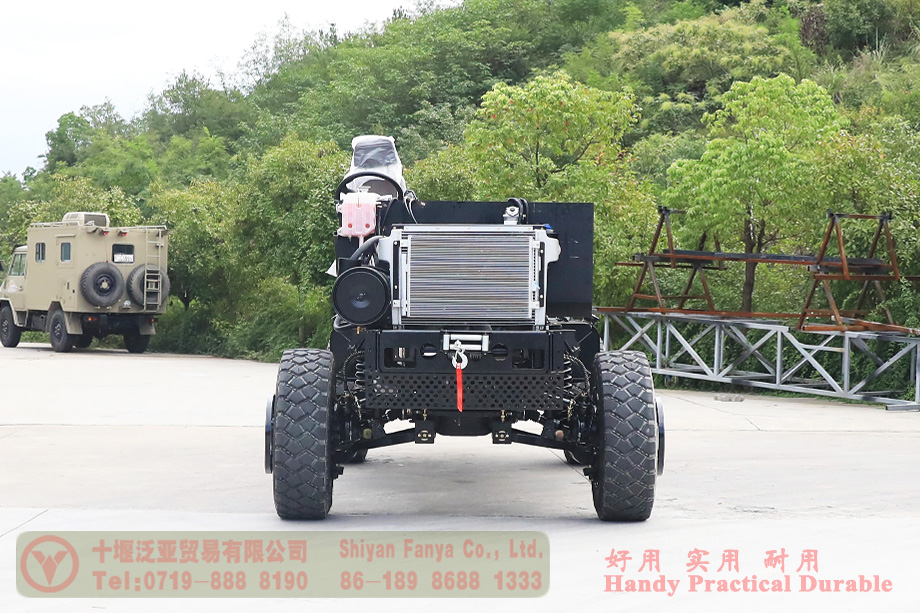

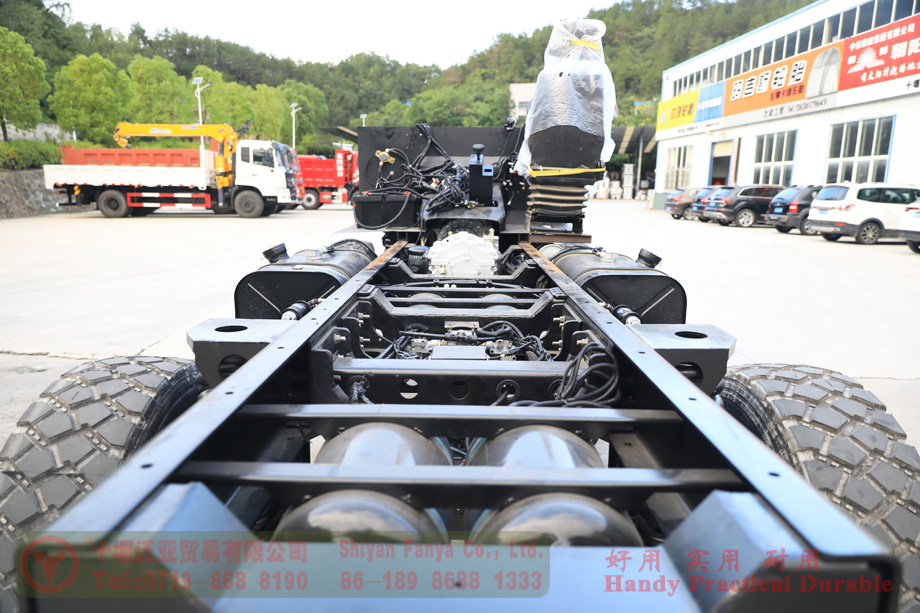

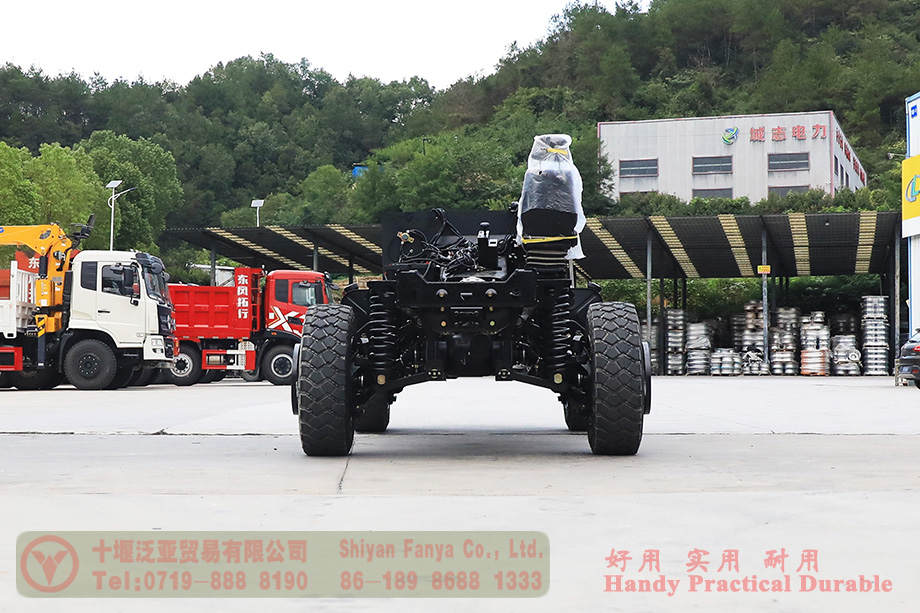

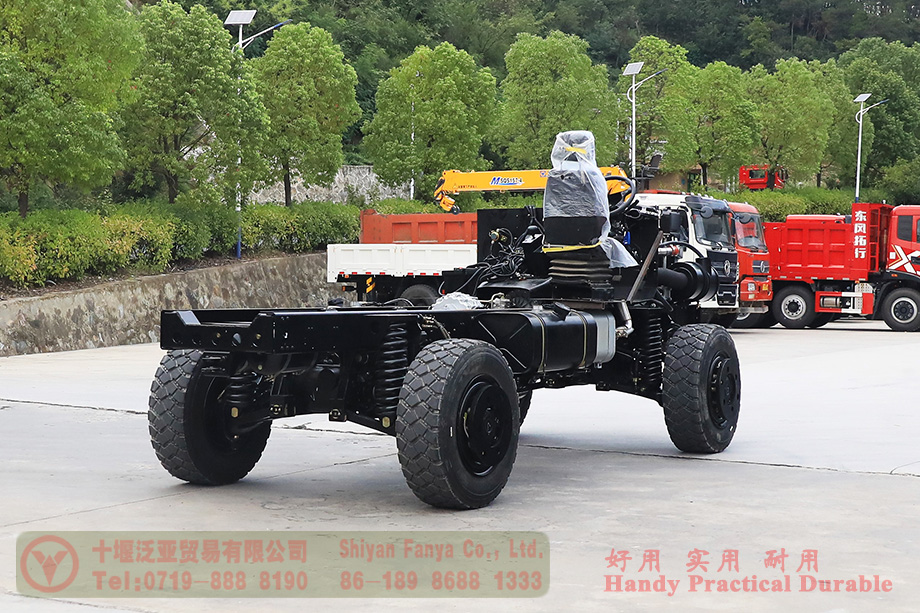

The 4*4 off-road vehicle class III chassis is a chassis model designed one-to-one by our company according to the customer’s requirements. After multi-faceted design, testing and perfecting, the chassis’ passability reaches the customer’s indexes. The chassis cab and top load are perfected by customers themselves, and will be exported to Africa for use.
Product Parameter
| Basic Configuration | |
| Engine | Cummins ISDe6.7-330 |
| Gearbox | Allison Automatic |
| Transmission | High-low |
| Axle | Max. Load 6.5Tons/6.5Tons (Front/Rear) |
| Tyre | 335/80R20(4+1) |
| Performance Parameter | |||
| Type III chassis dimensions | 6030× 2400× 2400(Length×Width×Height) | ||
| Axlebase(mm) | 1950/1938 | Wheelbase(mm) | 3800 |
| Max. Power(kW/rpm) | 243 | Displacement(L) | 6.7 |
| Max. torque(N.m) | 2500 | Departure Angle (°) | 38 |
| Approach Angle (°) | 50 | Overrun height (mm) | 580 |
| Max. gradient(％) | 60 | Fording Depth(mm) | 660 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
