4*2 Dongfeng 140hp light truck chassis – 10 tons small diesel truck for export – customized left/right rudder commercial model small micro truck conversion plant

Short Description:

Product Detail

Product Tags

Product Description

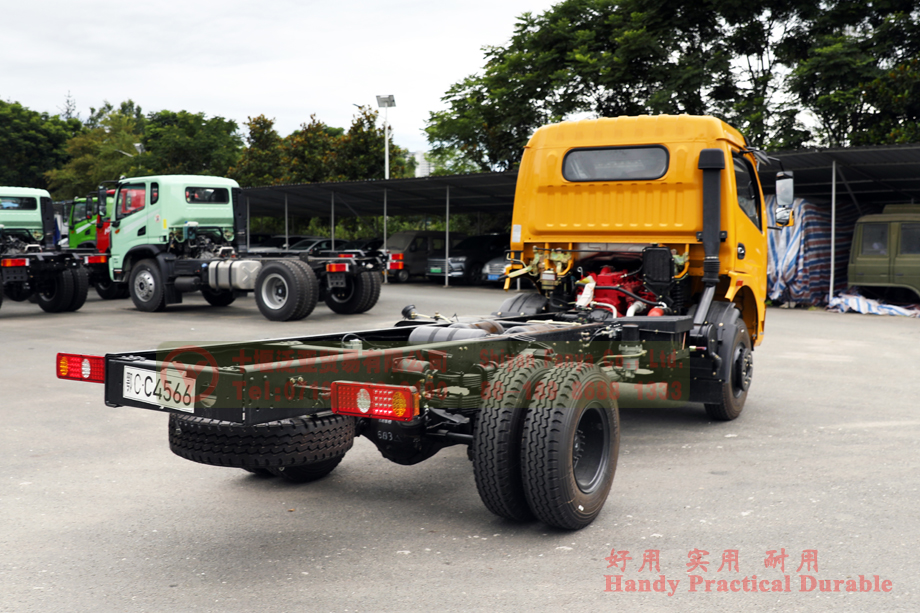

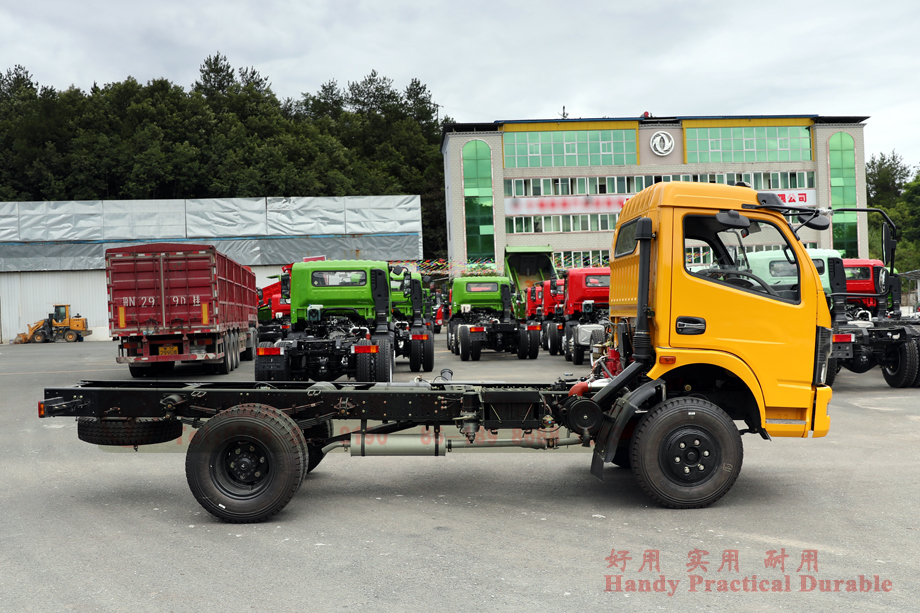

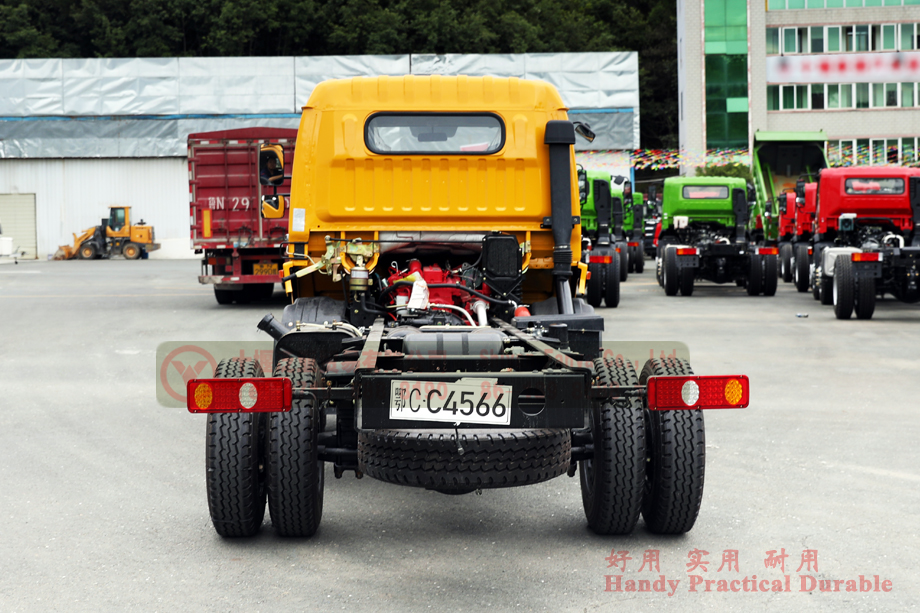

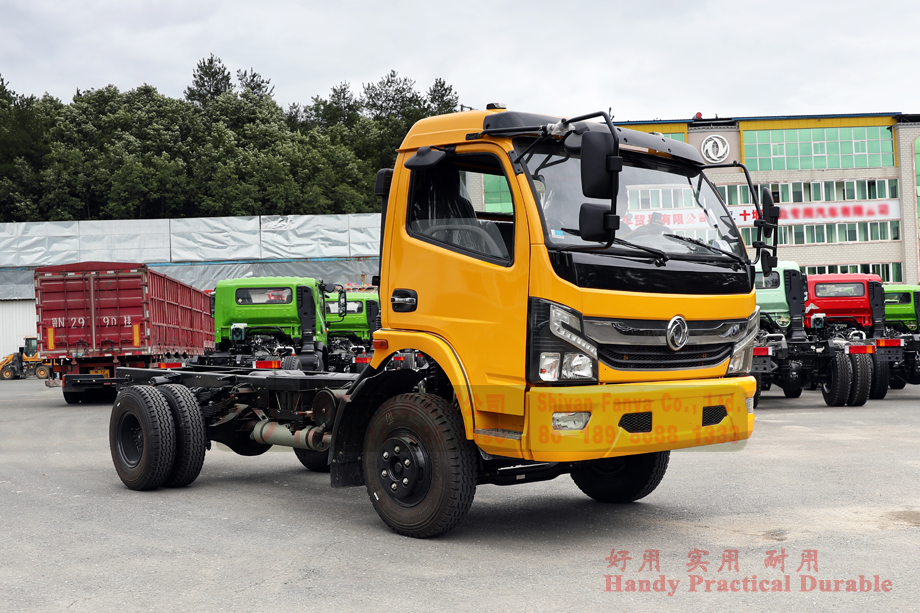

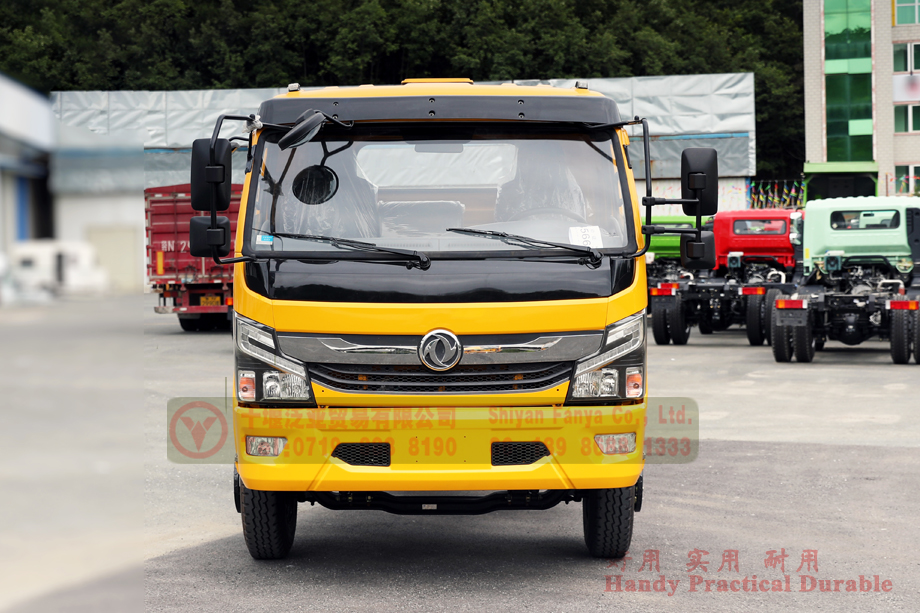

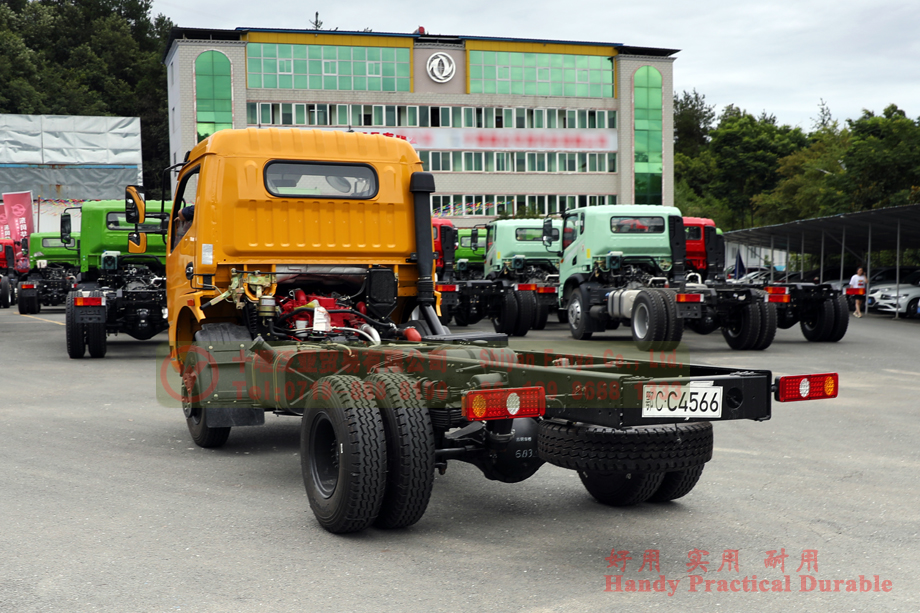

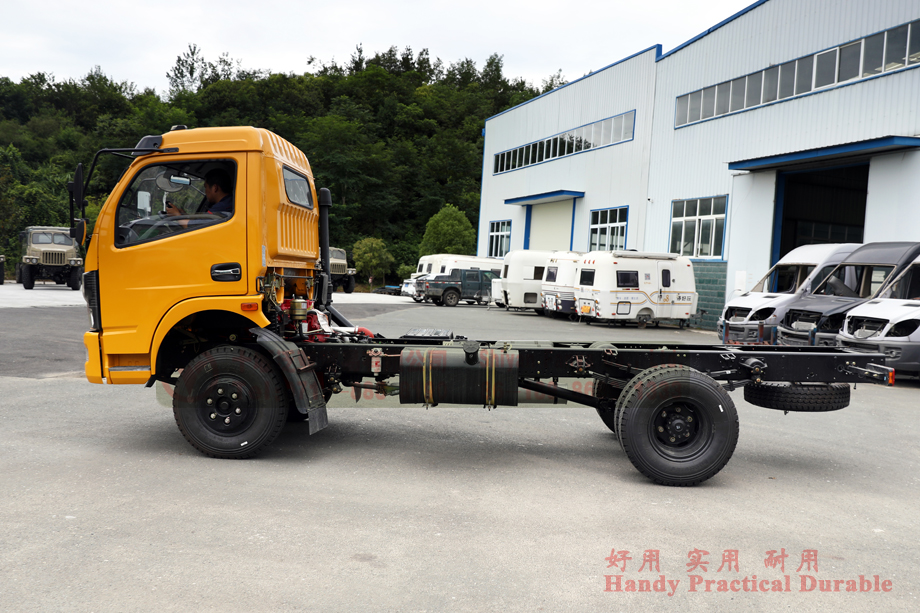

4*2 Dongfeng light truck chassis, can be customized 4*4 off-road model according to the need, the total mass of up to 10 tons, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields.

Product Parameter

Basic Configuration
Drive Mode	4×2 (can be customized into 4×4)
Engine	Cummins B140 33
Gearbox	Mechanical Manual six speed

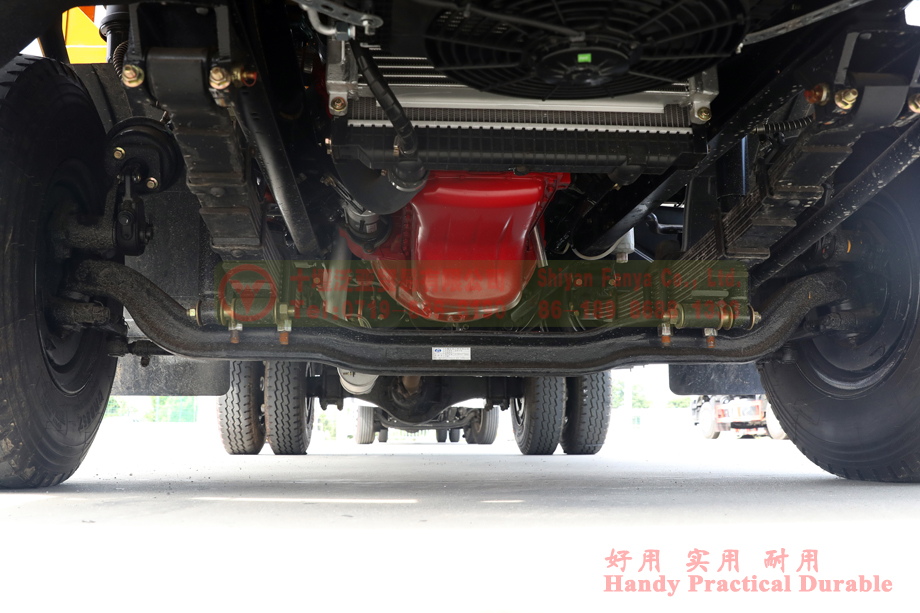

Suspension	Steel plate springs 8/10+8

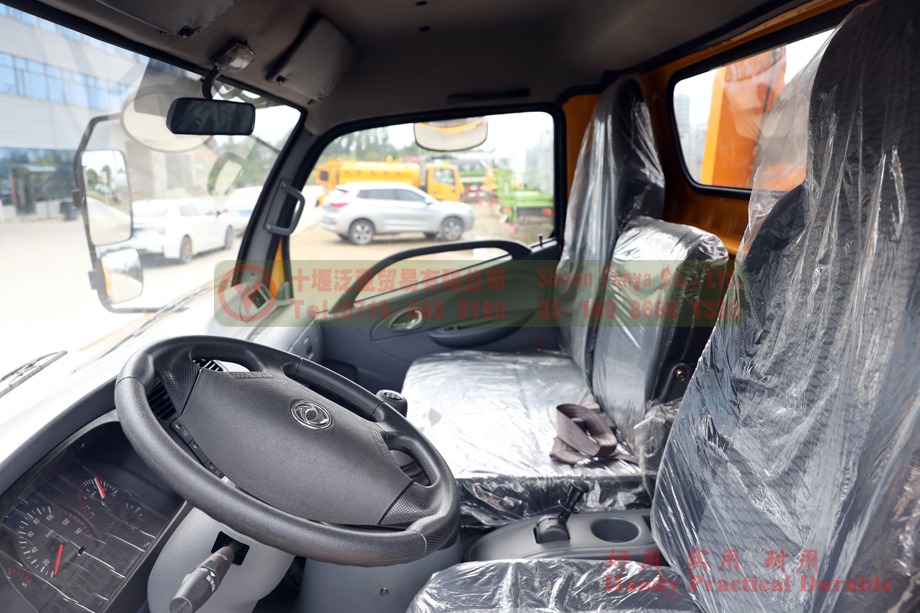

Cab	Dongfeng light truck single row
Axle	Max. Load 3Tons/7Tons (Front/Rear)

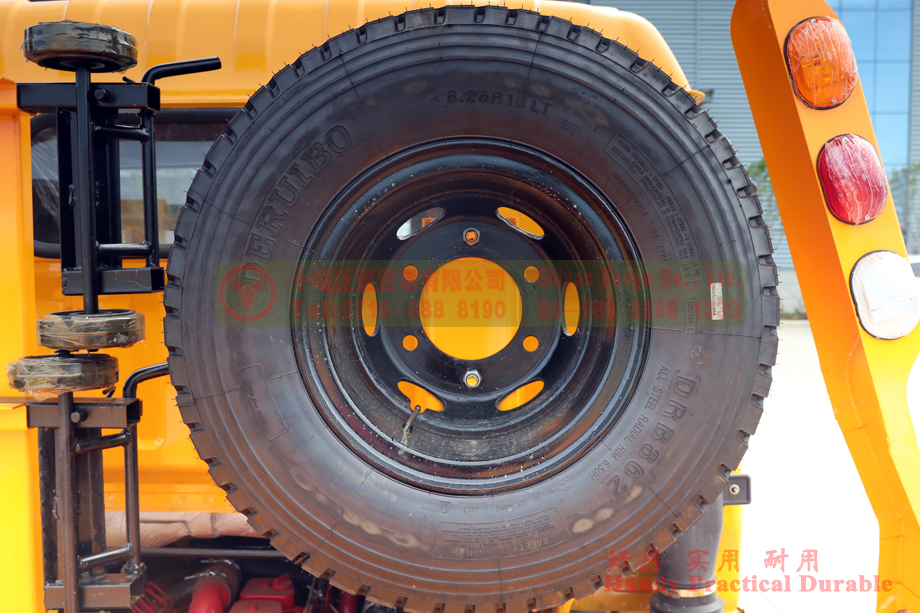

Tyre	8.25R16LT (6 + 1)
Frame	860*230mm

Performance Parameter
Chassis Dimension(mm)	6238 × 2325 × 2550(Length×Width×Height)
Modification size(mm)	≥4450
Total Mass(kg)	10000	Curb Weight(kg)	3250
Max. Power(kW/rpm)	103	Axlebase(mm)	3300
Wheelbase(mm)	1800/1800	Displacement(L)	3.9
Approach Angle (°)	22	Departure Angle (°)	23
Front Suspension(mm)	1230	Rear Suspension(mm)	1708
Max. Speed(km/h)	85	Tank Capacity(L)	150
