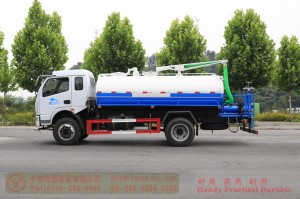

Dongfeng 8m³ Suction Sewer Truck–170 HP Special Purpose Vehicle–Dongfeng Customized Model Production and Export Manufacturer

Short Description:

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product Description

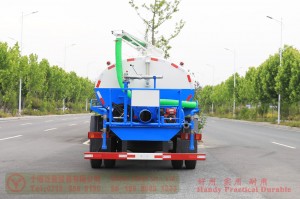

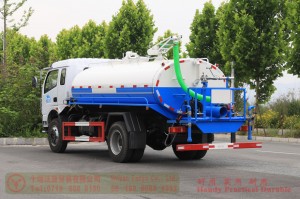

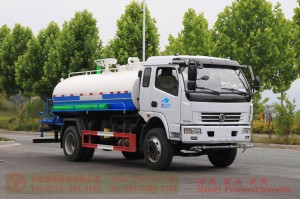

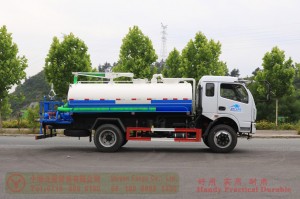

    Suction truck is a new type of sanitation vehicle to collect, transfer and clean up the transportation of sludge and sewage to avoid secondary pollution, the suction truck can be self-absorbing and self-discharging, with fast working speed, large capacity and convenient transportation, suitable for collecting and transporting feces, slurry, crude oil and other liquid substances. Suction truck adopts the domestic technology leading vacuum pump, suction, suction range, especially suitable for sewerage sludge suction, loading and unloading, especially sucking sewer slurry, sludge, stones, bricks and other large objects.

    Product Parameter

    Basic Configuration
    Drive Mode 4×2
    Engine Cummins B170 33
    Gearbox Mechanical Manual Eight Speed

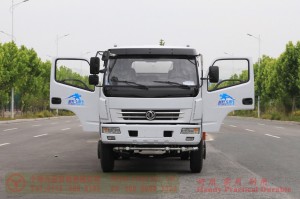

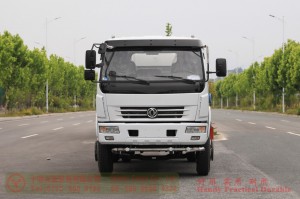

    Cab Dongfeng Flathead row half
    Axle Max. Load 3.6Tons/8Tons (Front/Rear)
    Frame 860×250
    Tyre 8.25R20 (10 + 1)
    Performance Parameter
    Overall Dimension (mm) 7450× 2350 × 2950(Length×Width×Height)
    Tank Volume (m³) 8
    Total Mass(kg) 11600 Curb Weight(kg) 6160
    Max. Power(kW/rpm) 125 Max. Torque(N.m) 560
    Wheelbase(mm) 3800 Displacement(L) 5.9
    Approach Angle (°) 30 Departure Angle (°) 16
    Ground Clearance(mm) 250 Fording depth (mm) 500

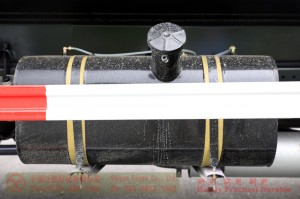

    Axlebase(mm) 1880/1840 Tank Capacity(L) 160
    Max. Speed(km/h) 85

    This parameter is for reference only. The margin of error is plus or minus three percentage points.
