Dongfeng 4WD Armoured Vehicle–Allison Automatic Armoured Vehicle–Dongfeng Armoured Vehicle Production and Export Manufacturer
Product Description

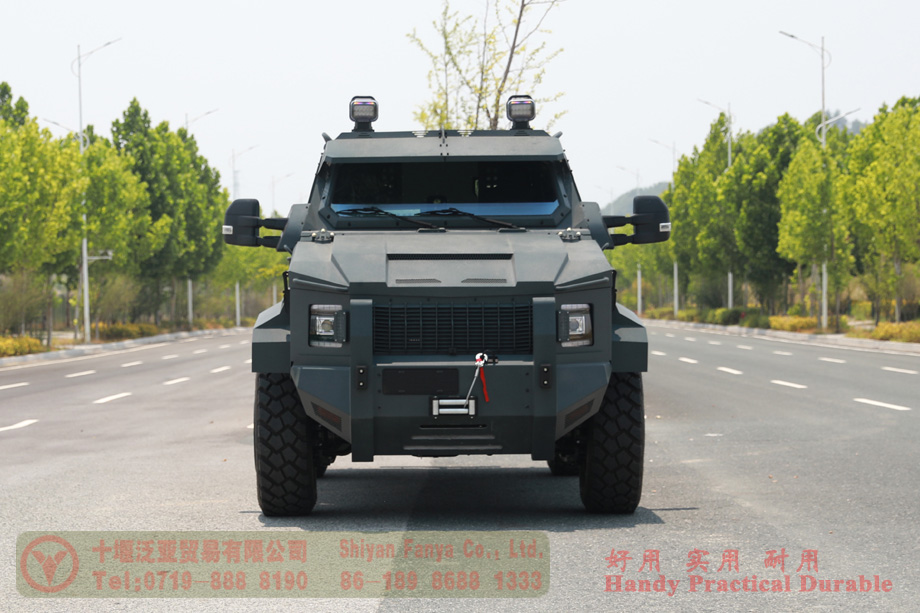

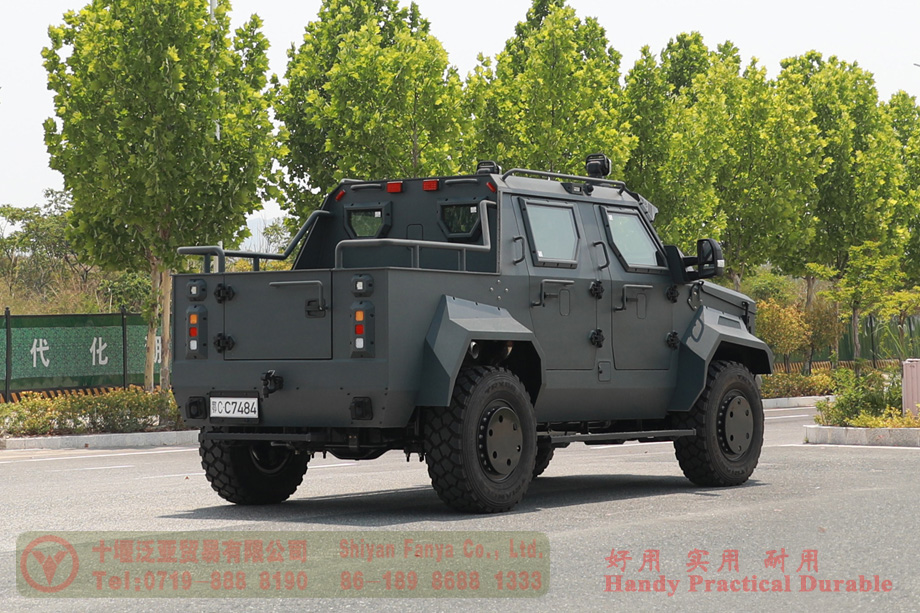

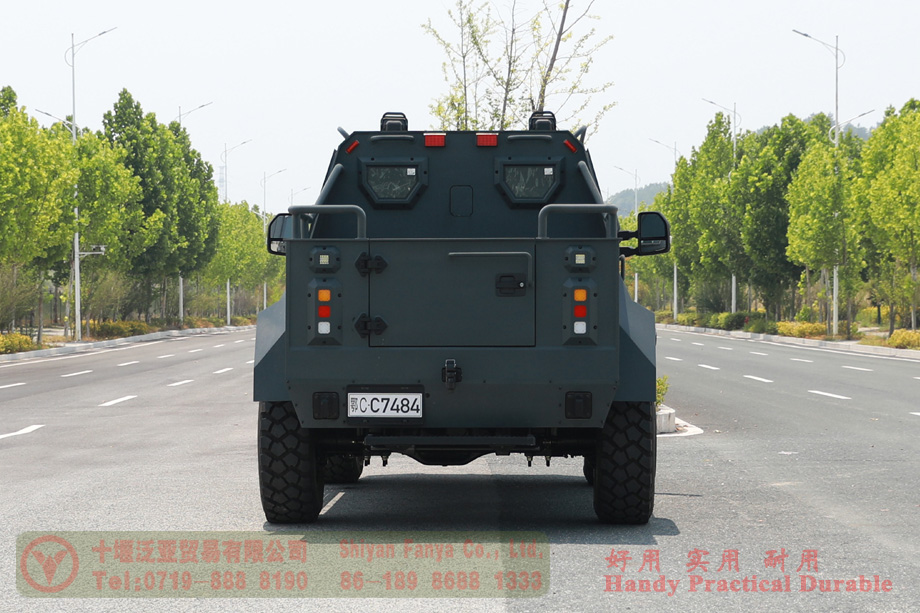

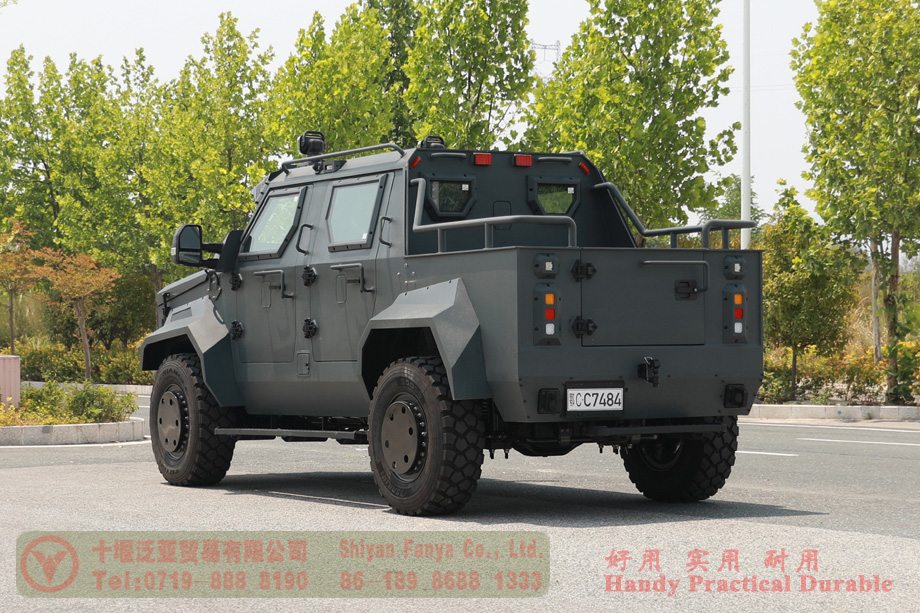

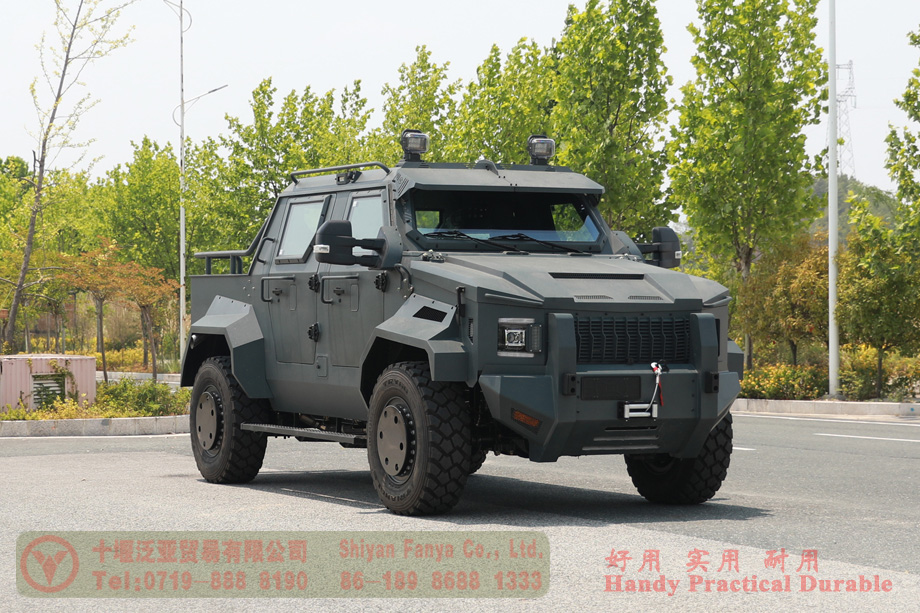

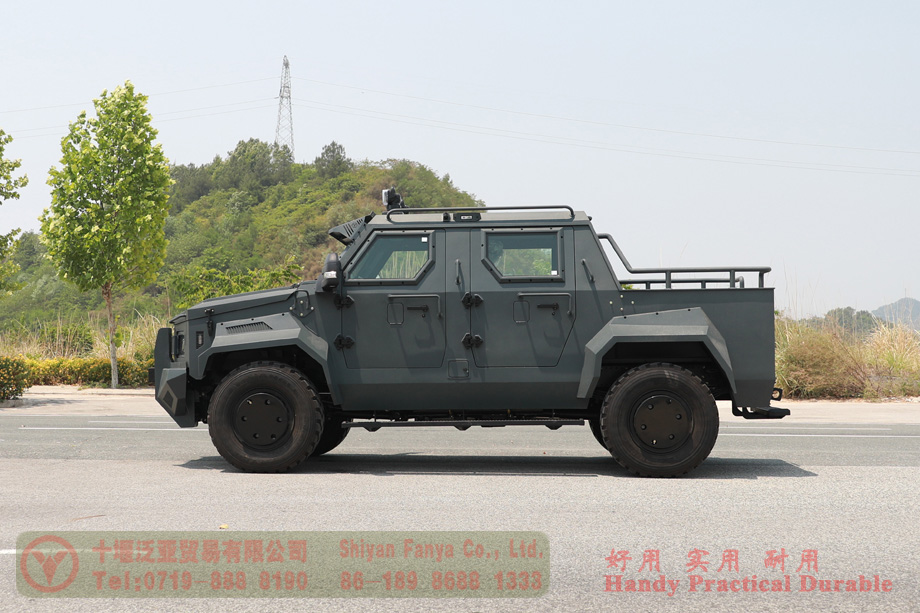

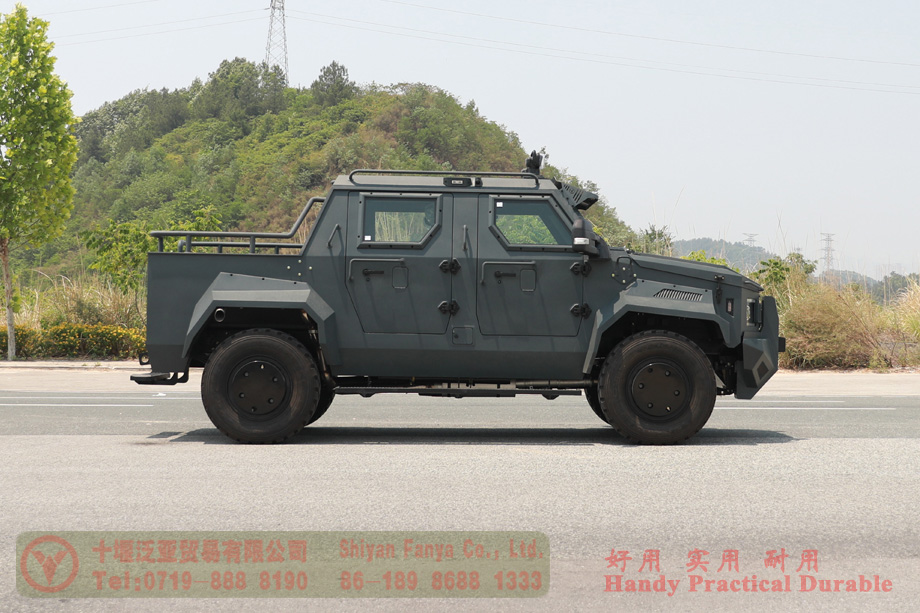

This 4WD armoured car is researched and developed by our company and welded out by hand. We can build different bodies according to customers’ requirements, contact us if you like it!
Product Parameter
| Basic Configuration | |
| Engine | Cummins ISDe6.7-330 |
| Gearbox | Allison Automatic |
| Transmission | High and low speed |

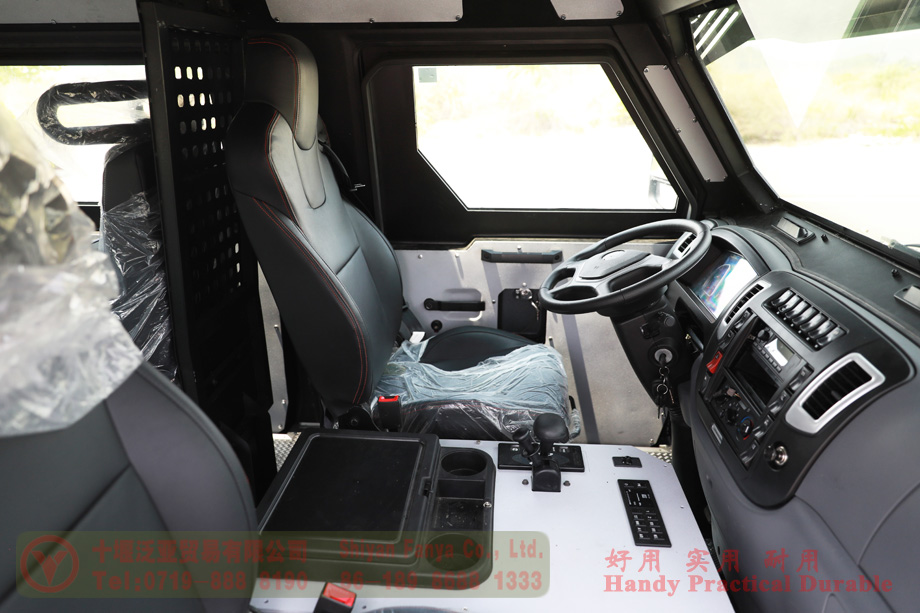

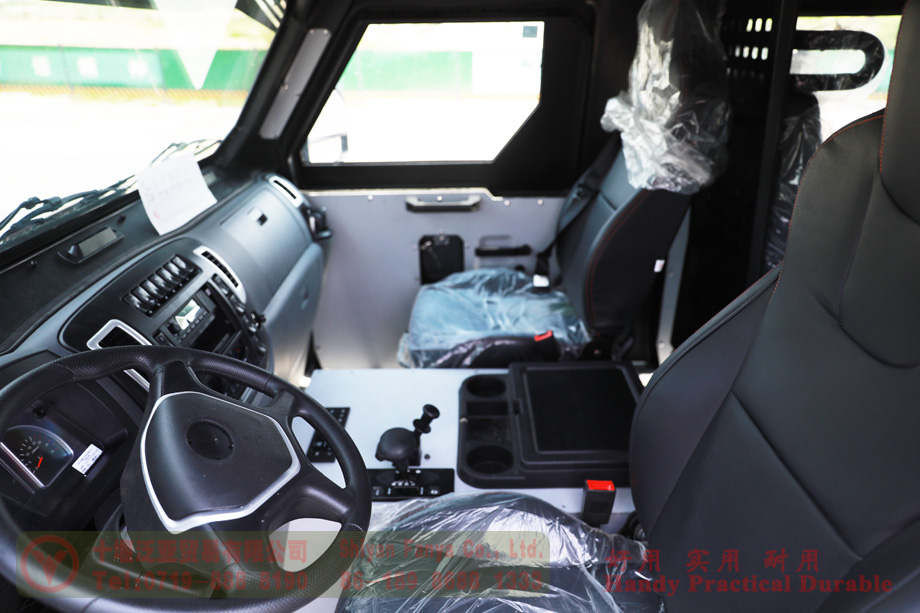

| Cab | Non-load-bearing body, hand-built |

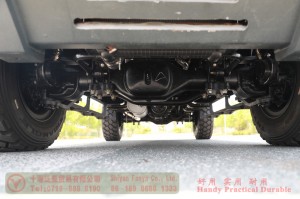

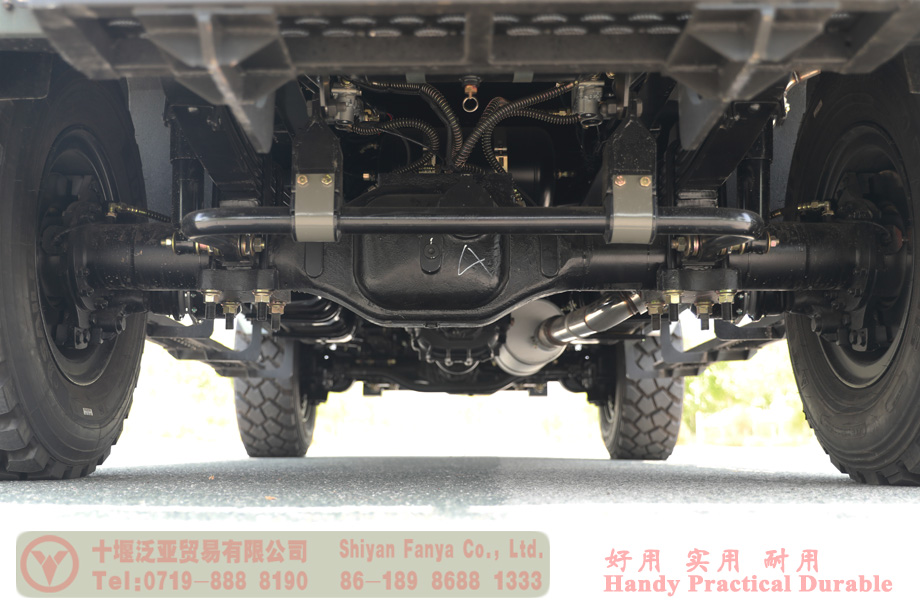

| Axle | Max. Load 7Tons/10Tons (Front/Rear) |
| Tyre | 365/80R20(4+1) |
| Performance Parameter | |||
| Overall Dimensions | 5996× 2460× 2580(Length×Width×Height) | ||
| Cargobox Dimensions | 1680× 1850× 645(Length×Width×Height) | ||
| Axlebase(mm) | 3700 | Wheelbase(mm) | 2110/2125 |
| Max. Power(kW/rpm) | 243 | Displacement(L) | 6.7 |
| Max. torque(N.m) | 928 | Departure Angle (°) | 39 |
| Approach Angle (°) | 36 | Overrun height (mm) | 460 |
| Ground Clearance(mm) | 350 | Fording Depth(mm) | 1120 |
| Max. speed(km/h) | 86 | ||
This parameter is for reference only. The margin of error is plus or minus three percentage points.
