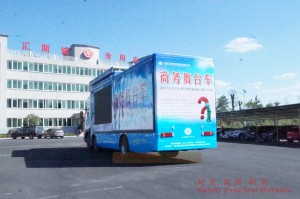

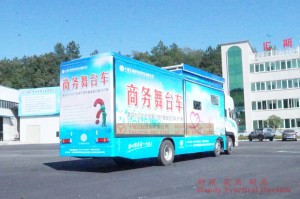

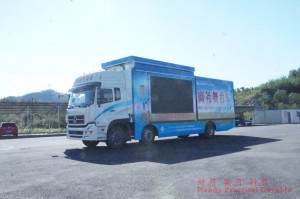

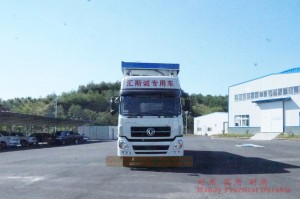

DWJ5203 mobile stage van
Product Description

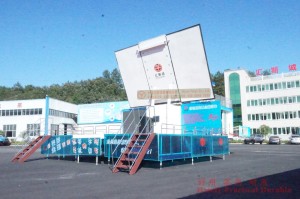

DWJ5203 mobile stage car is divided into three parts, the cab is used in the cab part Dongfeng, a semi-spacing, the interior uses a luxury design, and the row is a sleeper; the middle part is a car, including the bathroom and an expansion The balcony, the second floor is a lifting balcony, which can be equipped with a TV, audio, sofa, hanging cabinet, shower, etc. Human large stage.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins ISDE210 40 |
| Gearbox | Manual nine speed |
| Transfer case | High-low speed |
| Cab | Flat head semi-Dongfeng Tianlong Cab |
| Axle | Max. Load 4.8Tons/4.8Tons/10Tons(Front/Middle/Rear) |
| Tyre | 12.00R18 (8) |
| Electric appliance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 11540 × 2480 × 3030/3770(Length×Width×Height) | ||
| Wheelbase(mm) | 3190+1100 | ||
| Total Mass(kg) | 20490 | ||
| Front/Rear Suspension(mm) | 1500/3200 | ||
| Approach Angle (°) | 30 | Departure Angle (°) | 20 |
| Max. Speed(km/h) | 90 | Rated passenger (person) | 3 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
