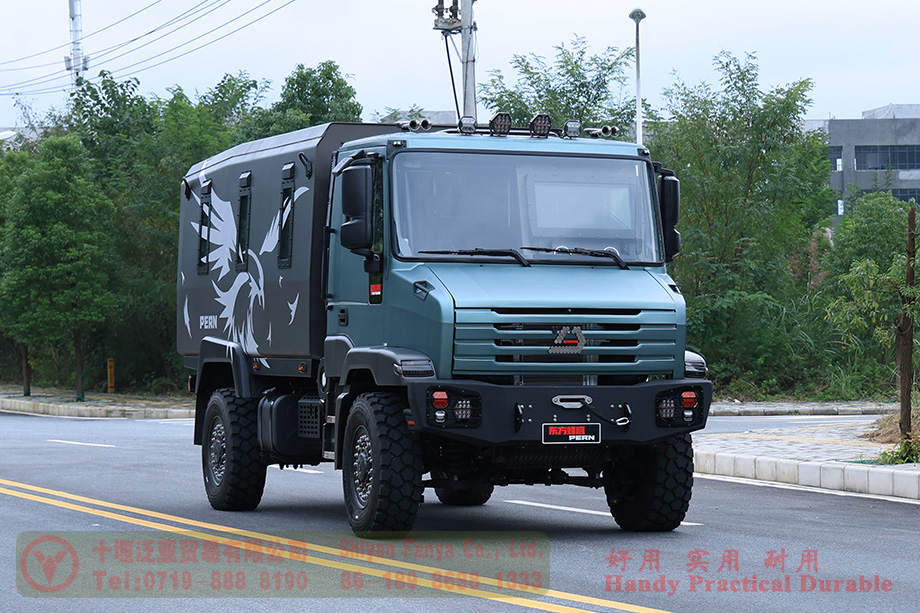

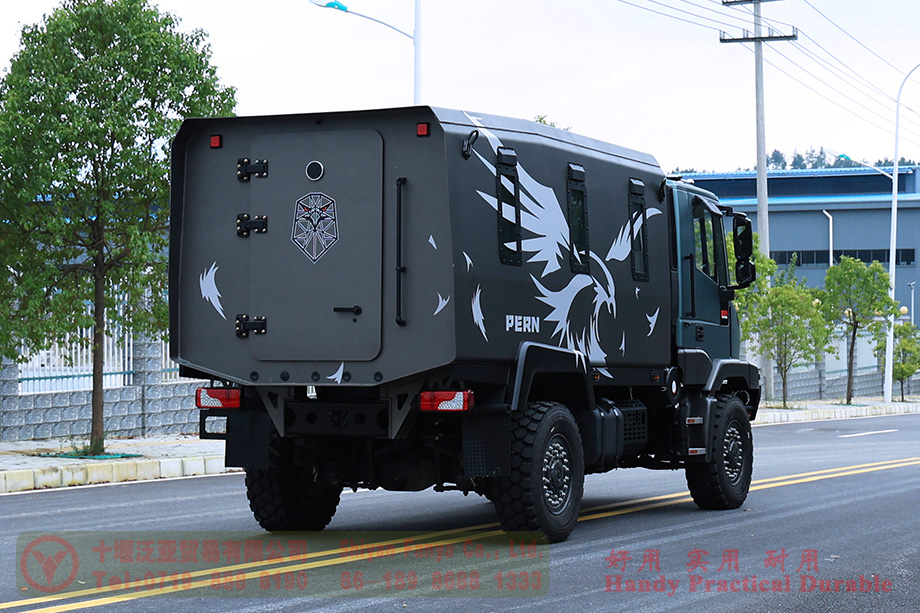

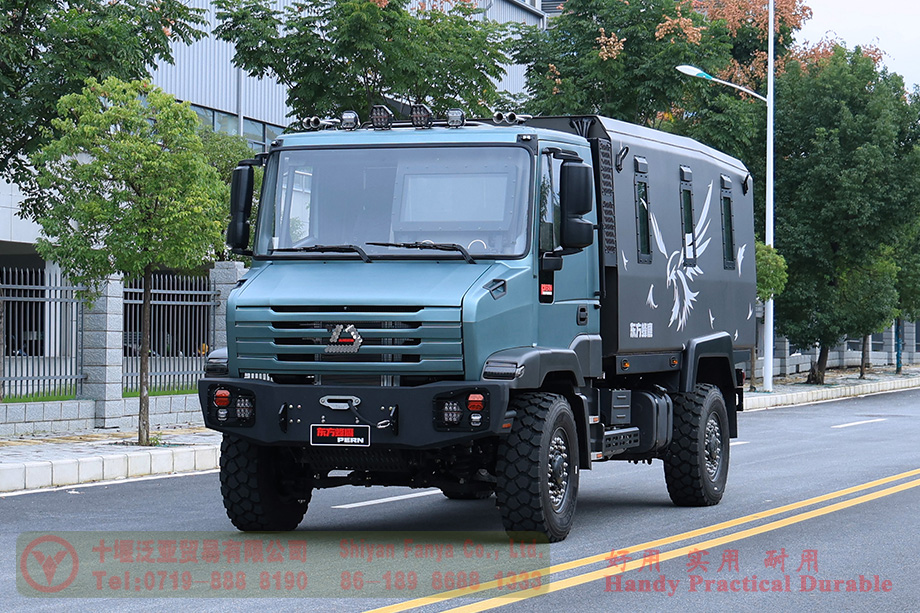

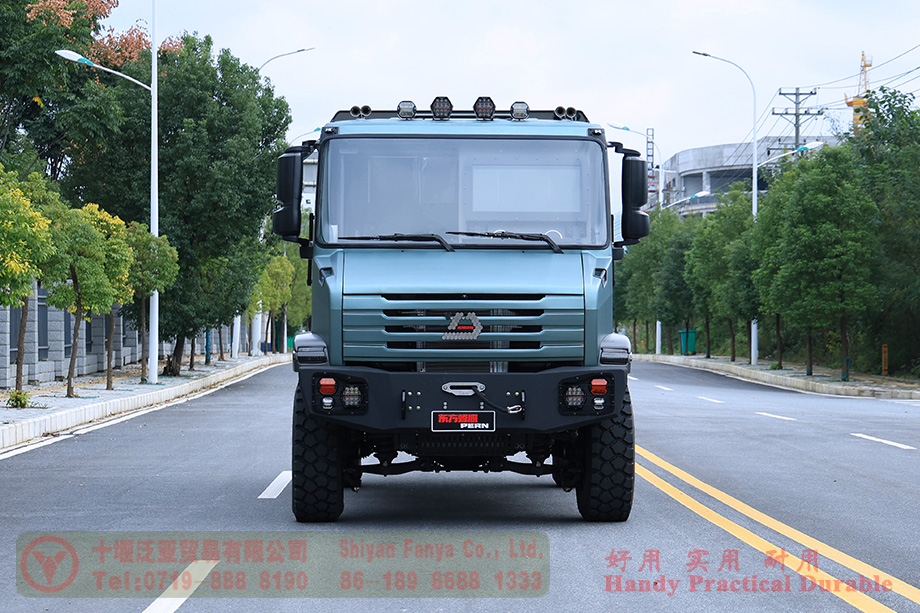

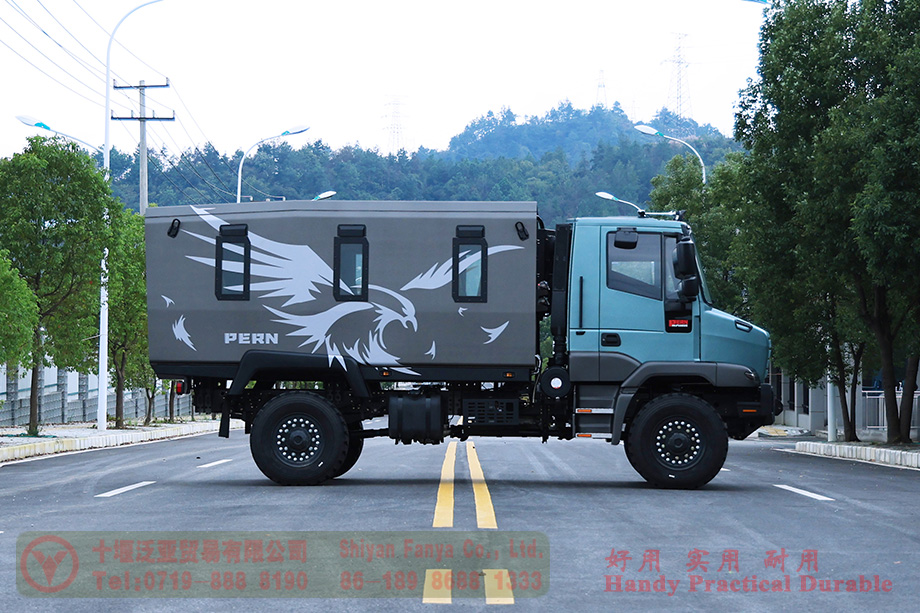

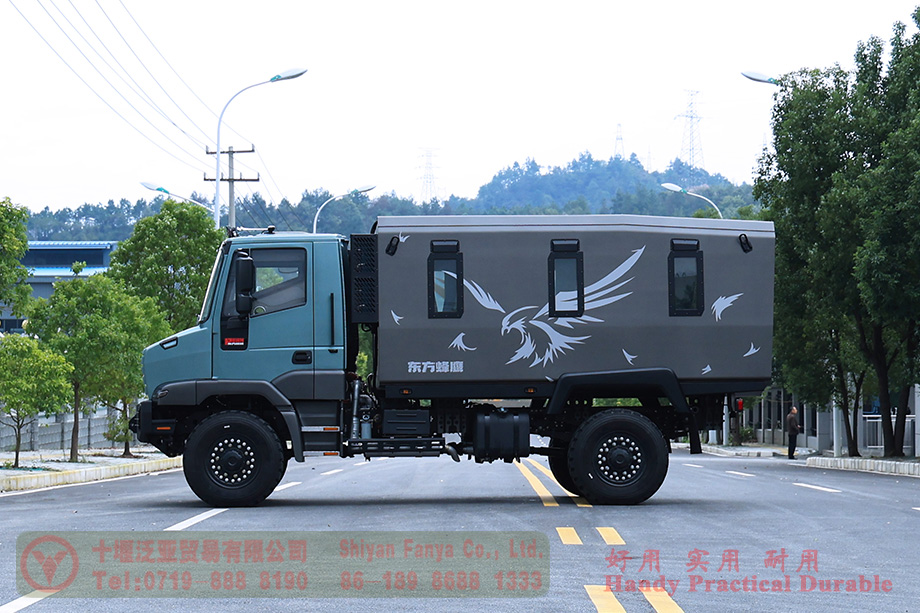

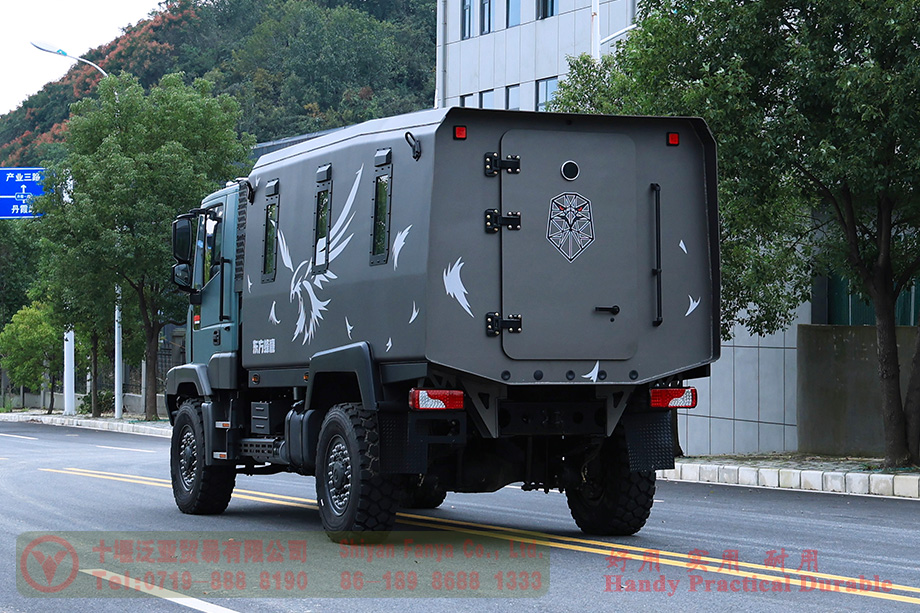

Four-Wheel-Drive Multi-Purpose Transport Vehicle — Off-Road Specialized Modular Cabin Vehicle — Mobile Modular Cabin Vehicle
Product Description
Powered by the Dongfeng Cummins ISDE6.7-330 30 electronic common rail diesel engine, it delivers a robust 330 horsepower and a maximum torque of 1,200 Nm. Through integrated development and innovative practices, it sets a new benchmark for mid-sized high-mobility off-road vehicles. Equipped with a premium powertrain, it meets the demands of extreme terrain. Inheriting the Unimog DNA, it incorporates the latest vehicle technologies from Dongfeng and Beiben.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins ISDe6.7-330 30 |
| Gearbox | Manual Automatic Transmission |
| Transfer case | High-low speed |

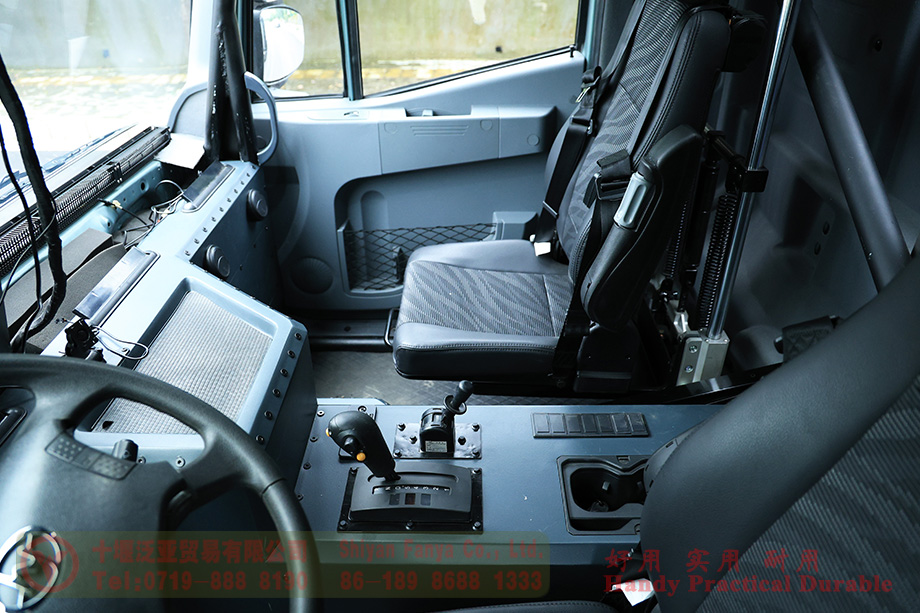

| Cab | Single row short-nose |
| Axle | Max. Load 4Tons/8Tons (Front/Rear) |

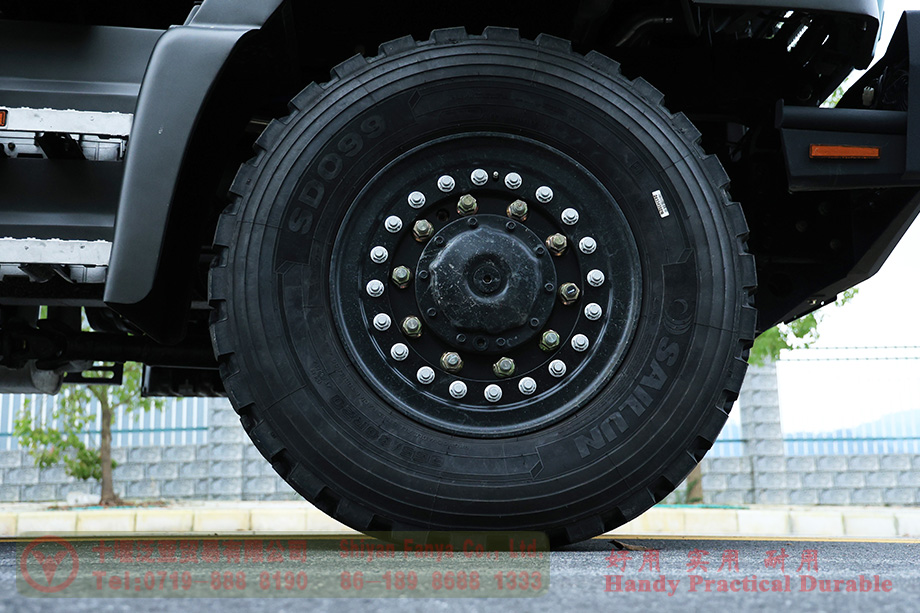

| Tyre | 365/80R20 (4 + 1) |

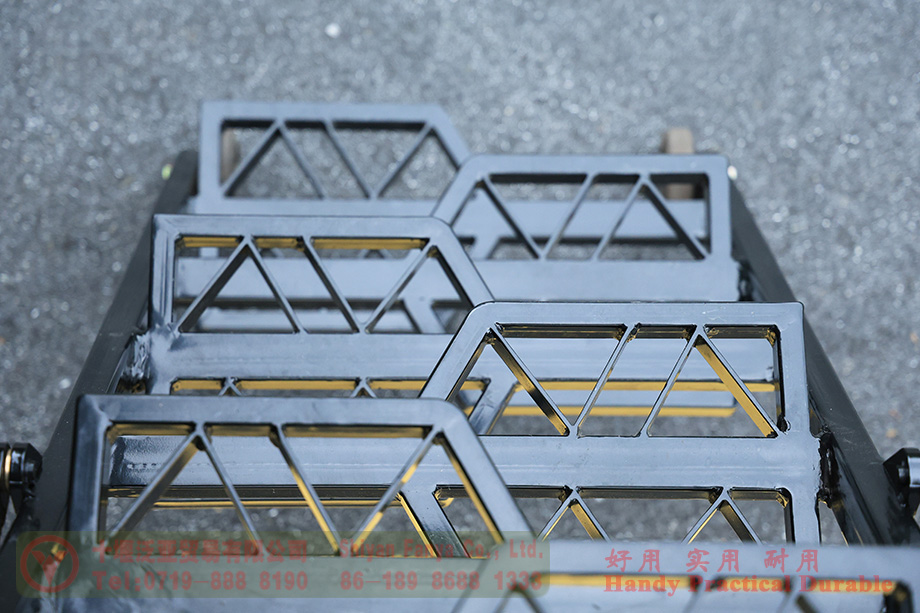

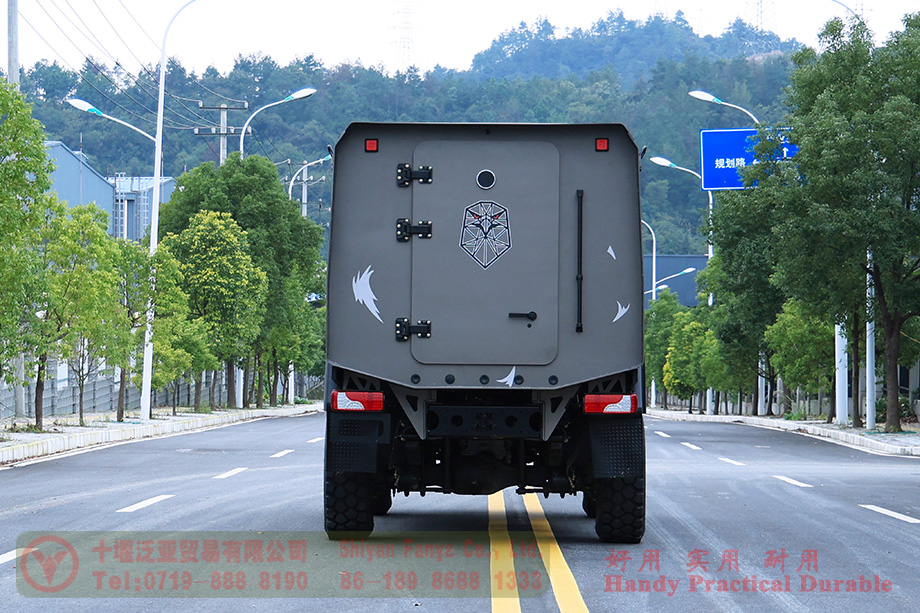

| Other | There is an electric winch in the front, a combined searchlight on the top of the cab, a double-layer protective door in the driving area, a clearance light in the cabin, six windows on each side, and a step on the rear door when it is opened. There are 10 folding seats in the cabin. |
| Performance Parameter | |||
| Overall Dimension(mm) | 6200 × 2500 × 2600(Length×Width×Height) | ||
| Van Dimension(mm) | 4000 × 2200 × 1900(Length×Width×Height) | ||
| Total Mass(kg) | 12000 | Carrying Capacity(kg) | 6500 |
| Max. Power(kW/rpm) | 243 | Fuel Consumptions Each 100km(L) | ≯18L |
| Wheelbase(mm) | 3700 | Displacement(L) | 6.7 |
| Approach Angle (°) | 40 | Departure Angle (°) | 25 |
| Ground Clearance(mm) | 370 | Turning Redius(m) | ≯17 |
| Front Suspension(mm) | 1050 | Rear Suspension(mm) | 1150 |
| Fording depth(mm) | 1000 | Obstracal height(mm) | 500 |
| Max. Speed(km/h) | ≥120 | Tank Capacity(L) | 100+100 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
