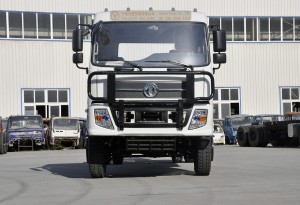

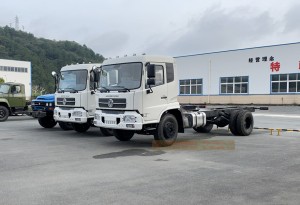

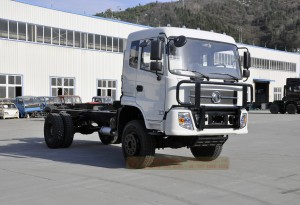

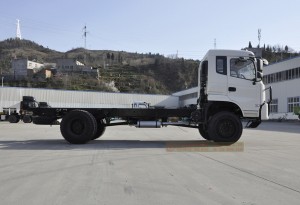

Four wheel drive Dongfeng Off-road Truck Chassis
Product Description
Dongfeng four drive off-road carrier as a classic domestic military vehicle, performance stability is the biggest feature of this vehicle, making the car favored by people around the world.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B190 |
| Gearbox | Manual nine speed |
| Transfer case | High-low speed |
| Cab | Three seats |

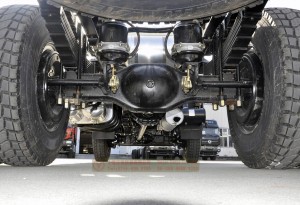

| Axle | Max. Load 6.5Tons/10Tons (Front/Rear) |
| Tyre | 10.00R20 (6 + 1) |
| Electrical appliance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7530 × 2500 × 3150(Length×Width×Height) | ||
| Modification size(mm) | 4500 | ||
| Total Mass(kg) | 16500 | Curb Weight(kg) | 4600 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 4200 | Displacement(L) | 5.9 |
| Approach Angle (°) | 23 | Departure Angle (°) | 27 |
| Max. Speed(km/h) | 88 | Tank Capacity(L) | 180 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
