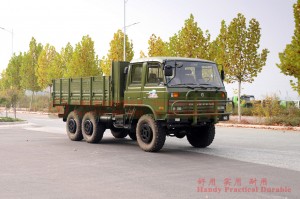

EQ2102 Dongfeng six-wheel-drive double-row off-road truck–3.5-ton flathead diesel off-road vehicle–Dongfeng 6*6 troop-carrying vehicle for civilian exports
Product Description

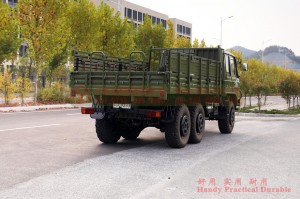

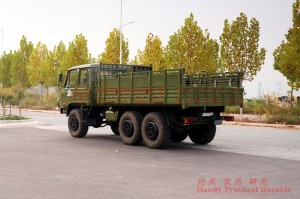

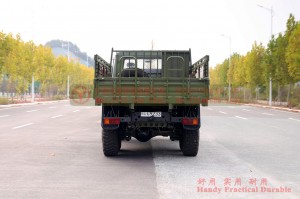

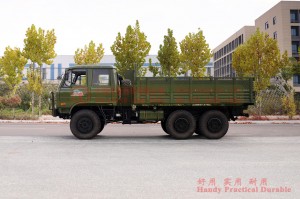

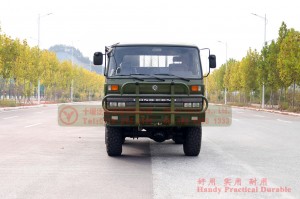

Dongfeng EQ2102 three and a half tons of double-row flathead cross-country personnel carrier type EQ2102G upgraded models, the main difference lies in the cab upgraded to a double-row style, the number of members in the cab up to 5 people, the size of the cargo box is correspondingly short.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | Mechanical high and low speeds with two speeds, electronically controlled air manipulation |

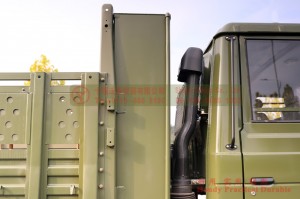

| Cab | Dongfeng 153 flathead double row cab |

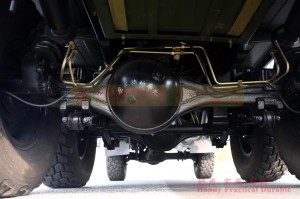

| Axle | Max. Load 3.6Tons/3.6Tons/3.6Tons (Front/Middle/Rear) |
| Suspension | Steel plate spring 9/12 pieces |
| Frame | 232*75*6.5mm |

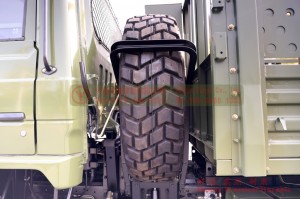

| Tyre | 12.5R20 (6 + 1) |
| Optional | 24V Circuit System, Single Wire, Negative Hitch |
| Performance Parameter | |||
| Overall Dimension(mm) | 7495 × 2470 × 3240(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 4270 × 2294× 900(Length×Width×Height) | ||
| Total Mass(kg) | 10740 | Curb Weight(kg) | 6920 |
| Max. Power(kW/rpm) | 140 | Axlebase(mm) | 1876/1870 |
| Wheelbase(mm) | 3475+1250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 35 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | 320 | Fording Depth(mm) | 1125 |
| Max. Speed(km/h) | ≥88 | Tank Capacity(L) | 160+80 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
