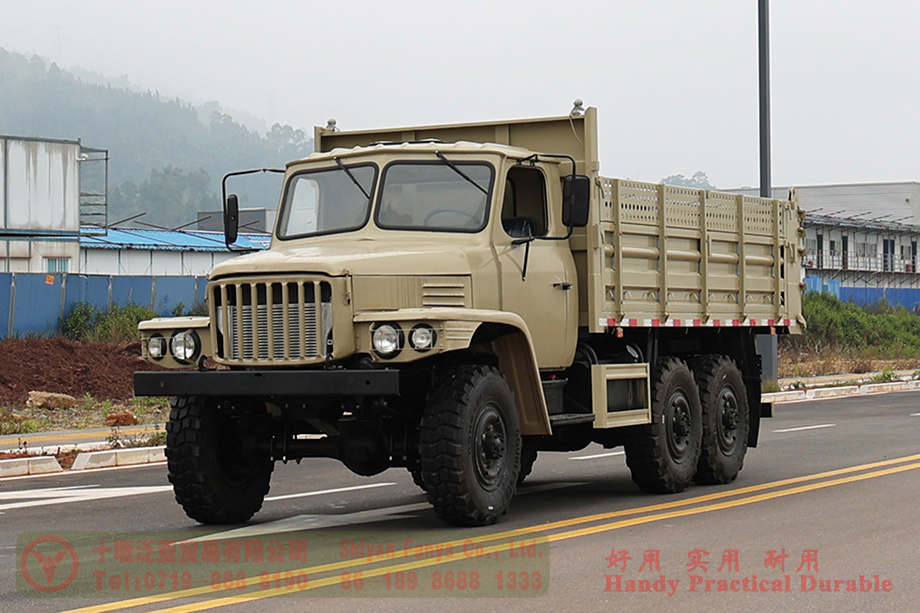

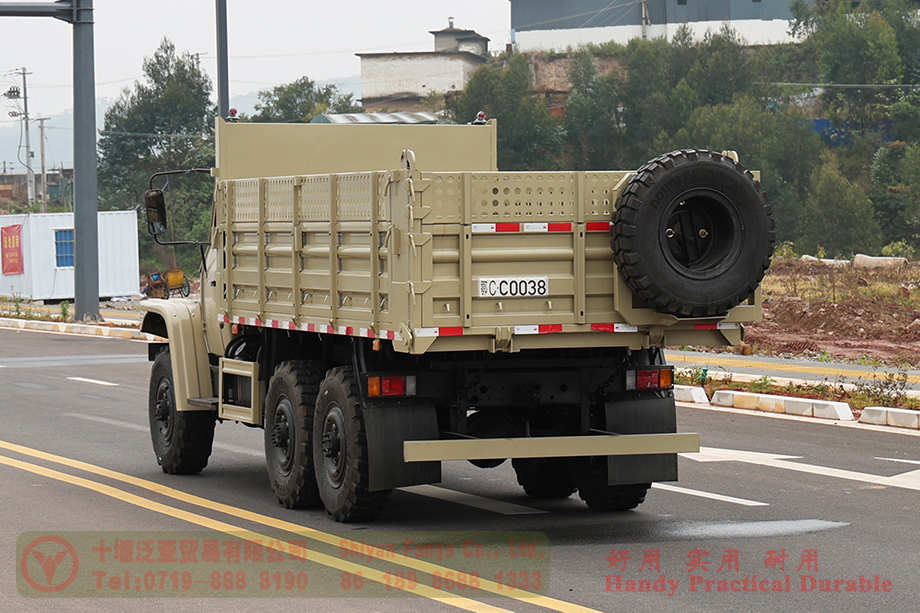

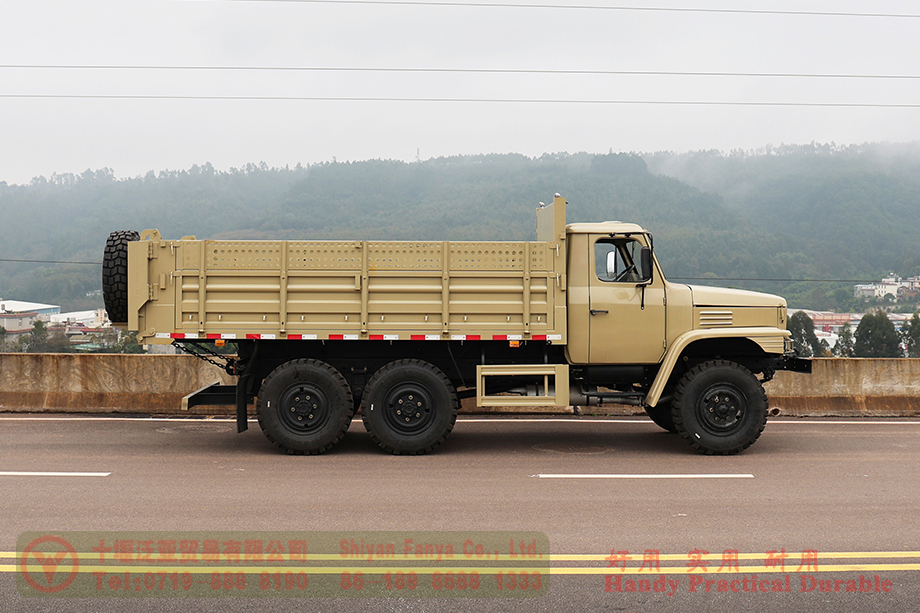

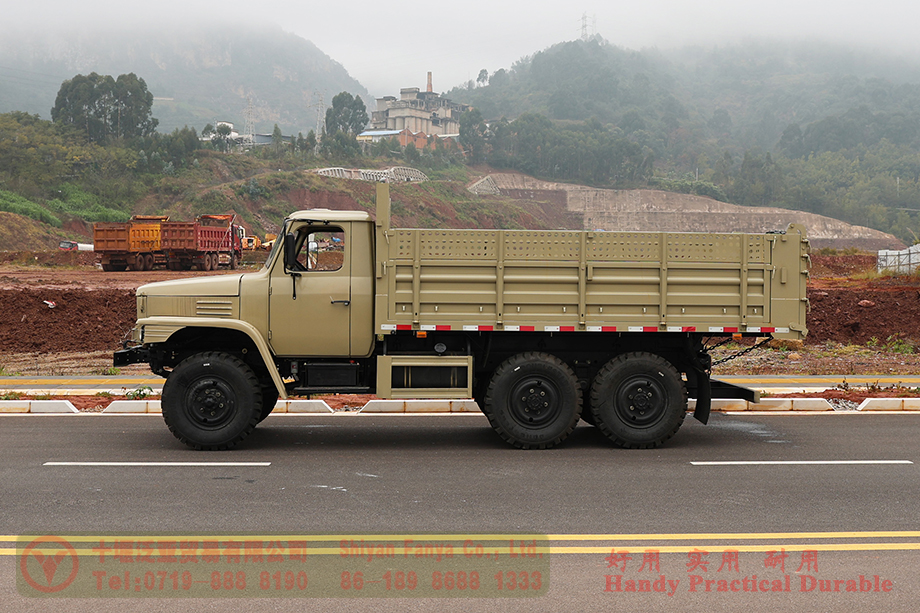

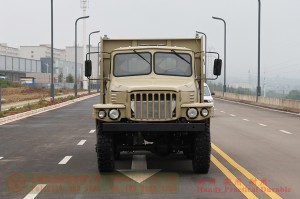

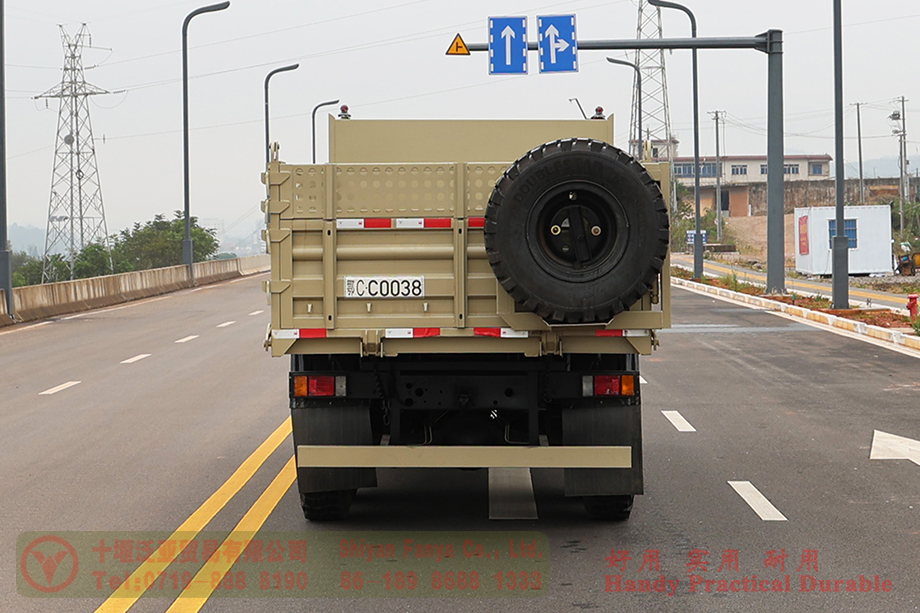

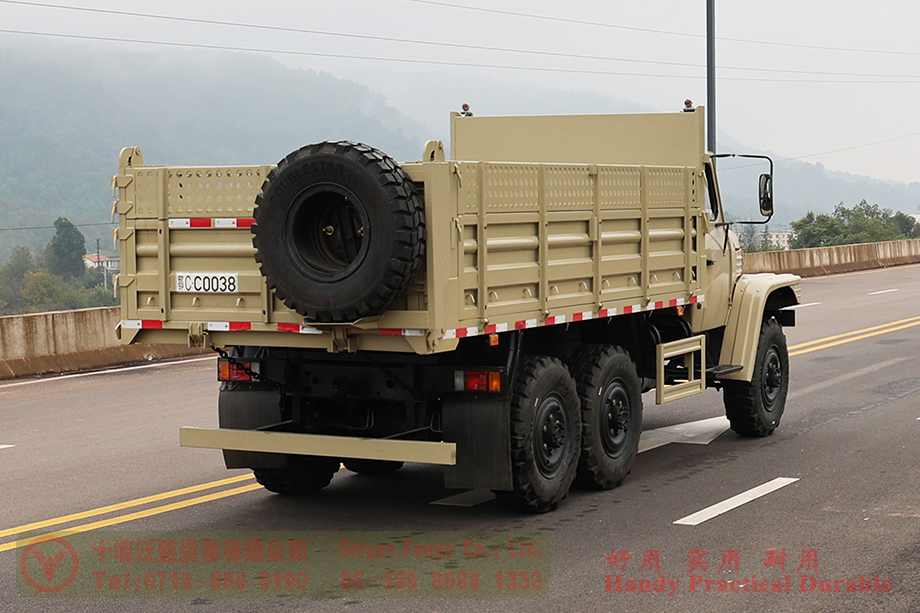

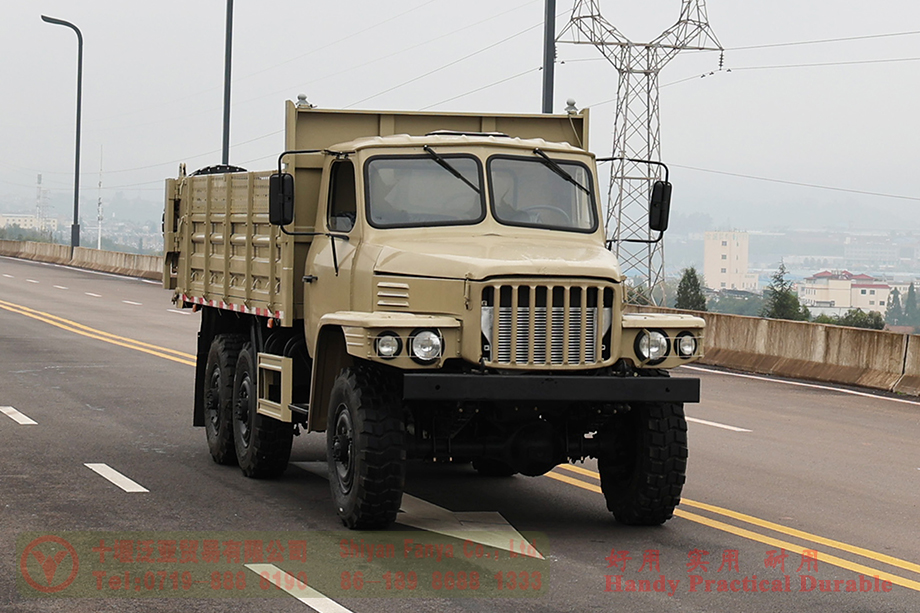

EQ2082 Six-Wheel Drive Dump Truck — Dongfeng Six-Wheel Drive Cargo Truck — Cargo Truck Export Manufacturer
Product Description
A dump truck is a vehicle that unloads its cargo automatically via hydraulic or mechanical lifting mechanisms. It is also known as a tipper truck. Its components include a vehicle chassis, hydraulic lifting system, cargo bed, and pickup device. Dump trucks are primarily used in construction, mining, transportation, and agriculture. They are mainly employed to transport construction materials or raw materials such as sand, sandstone, gravel, and other minerals. In civil engineering, dump trucks often work in conjunction with excavators, loaders, belt conveyors, and other construction machinery to form loading, transporting, and unloading lines. These lines are used for handling earth, sand, gravel, and bulk materials.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |

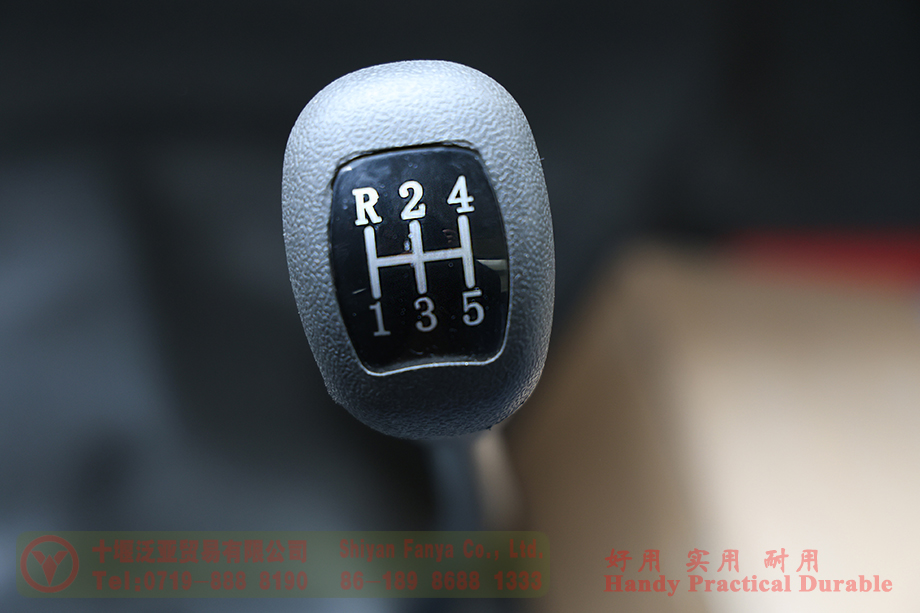

| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |

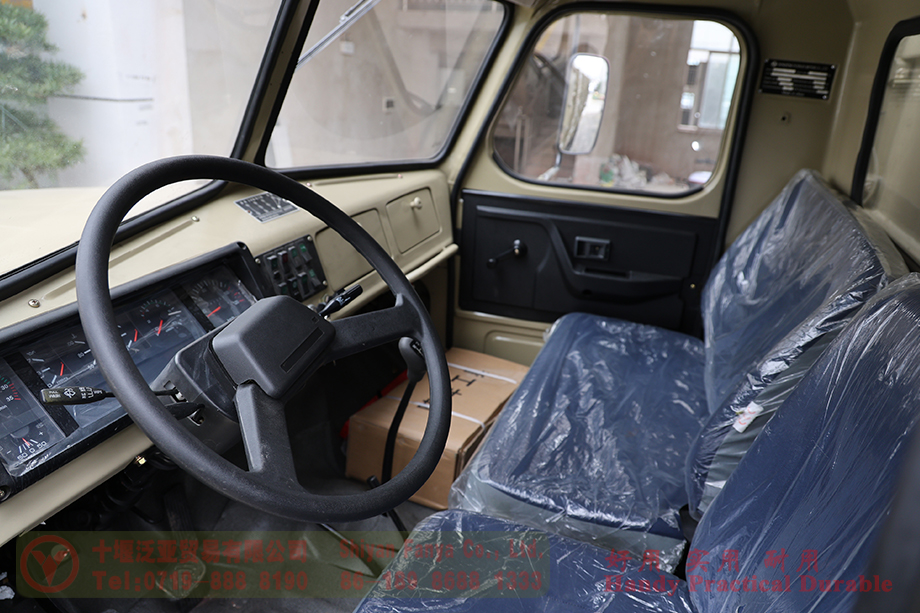

| Cab | Dongfeng pointed single row |
| Axle | Max. Load 2.5Tons/2.5Tons/2.5Tons (Front/Middle/Rear) |
| Frame | 860*232mm |
| Tyre | 11R18 (6 + 1) |
| Optional | Air conditioning, winch, brake cooling tanks |
| Other | Buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |
| Performance Parameter | |||
| Overall Dimension(mm) | 7260 × 2480 × 2720(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 4200 × 2200 × （600+300）(Length×Width×Height) | ||
| Total Mass(kg) | 9800 | Curb Weight(kg) | 5830 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1774 |
| Wheelbase(mm) | 3190+1100 | Displacement(L) | 5.9 |
| Approach Angle (°) | 40 | Departure Angle (°) | 19 |
| Ground Clearance(mm) | 285 | Fording depth (mm) | 560 |
| Obstacle height（mm） | 480 | Maximum Climbing Degree(％) | 60 |
| Max. Speed(km/h) | ≥85 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
