Product Description

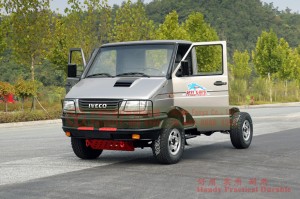

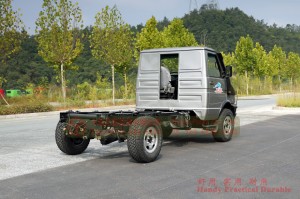

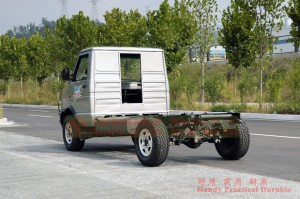

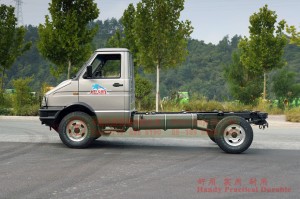

Iveco off-road truck chassis, with the latest 4*4 off-road design, ensures excellent passability in various environments. Whether it is the city road, or remote mountains and fields, with its excellent off-road performance, unparalleled driving experience. It can be converted into double trucks, RVs, mobile office vehicles and various customized models according to customers’ needs.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | SOFIM8142.43 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |

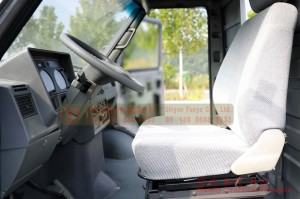

| Cab | Iveco short head single row, carry 3 people |
| Axle | Max. Load 2.5Tons/3.3Tons (Front/Rear) |
| Suspension | 860×128mm |

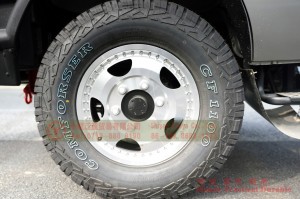

| Tyre | LT285/70R17(4+1) |
| Circuit | 24V circuit system |
| Other | Fire extinguishers, warning signs, vehicle tools, trailer hooks, anti-aircraft lights, chassis protection nets |
| Performance Parameter | |||
| Chassis Dimension(mm) | 5258 × 2040 × 2300(Length×Width×Height) | ||
| Modification size(mm) | ≥3100 | ||
| Total Mass(kg) | 4450 | Minimum Ground Clearance(mm) | 245 |
| Max. Power(kW/rpm) | 83 | Axlebase(mm) | 3440 |
| Wheelbase(mm) | 1720 | Displacement(L) | 2.798 |
| Approach Angle (°) | 31 | Departure Angle (°) | 33 |
| Front Suspension(mm) | 900 | Rear Suspension(mm) | 918 |
| Ground Clearance(mm) | 410 | Fording depth (mm) | 550 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
