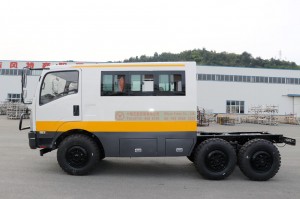

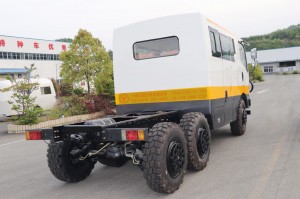

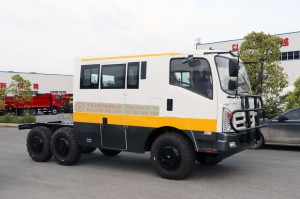

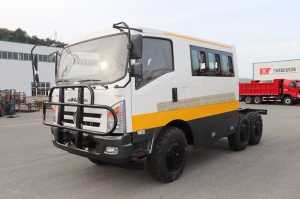

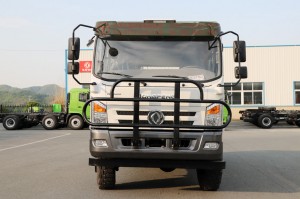

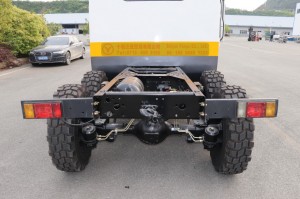

Six wheel drive engineering rescue vehicle chassis
Product Description
This chassis is designed by our company, it can be modified to engineering vehicle and fuel tank.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Axle | Max. Load 3.3Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Tyre | 11.00R18 |
| Performance Parameter | |||
| Overall Dimension(mm) | 6600×2180×2780(Length×Width×Height) | ||
| Modification size(mm) | 2270 | ||
| Total Mass(kg) | 7910 | Curb Weight(kg) | 4550 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3300+1070 | Displacement(L) | 5.9 |
| Approach Angle (°) | 60 | Departure Angle (°) | 46 |
| Ground Clearance(mm) | 275 | Fording depth (mm) | 570 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 100 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
