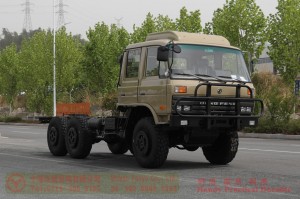

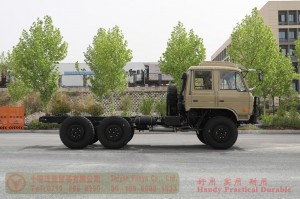

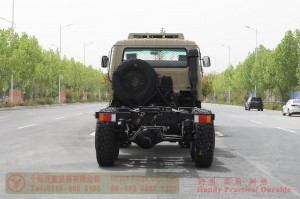

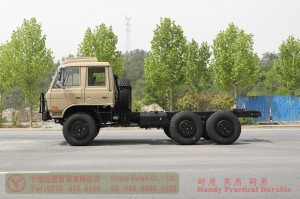

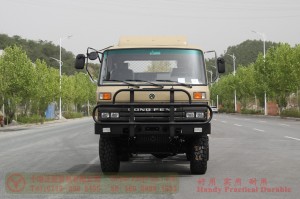

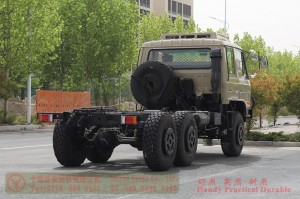

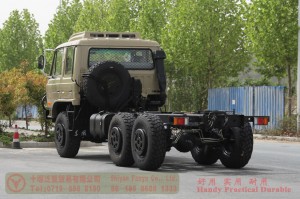

EQ246 Special Vehicle Chassis–Dongfeng 6*6 EQ2102 Double Cab 153 Off-road Truck Chassis–Dongfeng 246 Off-road Truck Chassis
Product Description
EQ2102 is a series of six-wheel-drive off-road vehicles designed and developed by Dongfeng, which adopts Dongfeng’s classic 153 cab, including one-and-a-half rows, double rows, high roofs and other forms.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |

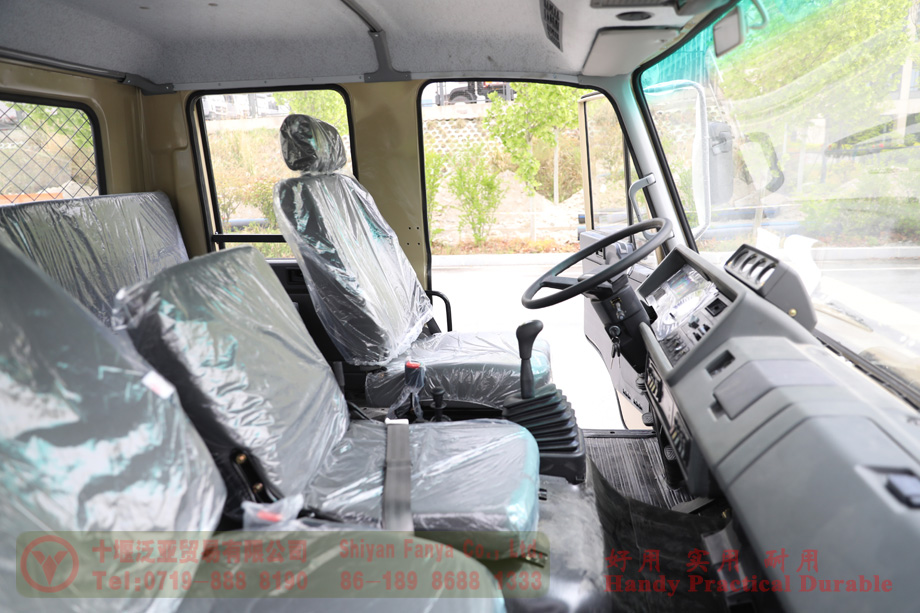

| Cab | Dongfeng 153 Double Cab |
| Axle | Max. Load 3.6Tons/3.6Tons/3.6Tons (Front/Middle/Rear) |

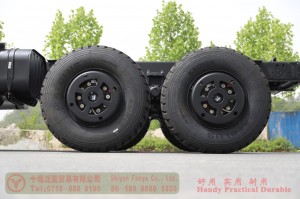

| Tyre | 12.5R20 (6 + 1) |
| Other | With overhead air conditioning |
| Performance Parameter | |||
| Chassis Dimension(mm) | 7586 × 2320 × 2740(Length×Width×Height) | ||
| Modification size(mm) | 3070 | ||
| Total Mass(kg) | 10940 | Curb Weight(kg) | 6000 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3475+1250 | Axlebase(mm) | 1876/1870 |
| Approach Angle (°) | 33.4 | Departure Angle (°) | 35.8 |
| Ground Clearance(mm) | 305 | Replacement (L) | 5.88 |
| Max. Speed(km/h) | 90 | ||
This parameter is for reference only. The margin of error is plus or minus three percentage points.
