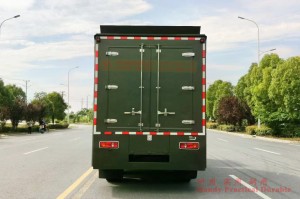

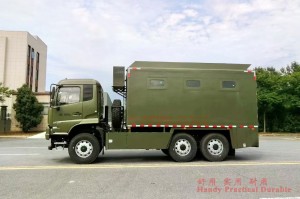

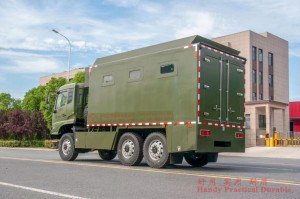

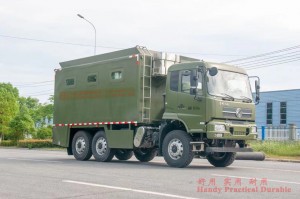

Dongfeng DWJ5090 Six wheel drive Cooking Vehicle
Product Description

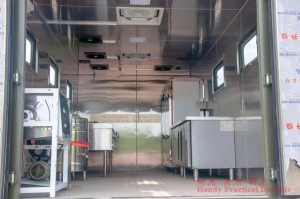

Dongfeng off-road truck as a classic domestic military vehicle. This is a kitchen vehicle modified by Dongfeng Tianjin.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins ISB190 50 |
| Gearbox | Manual six speed |
| Transfer case | High-low speed |
| Cab | Three seats |
| Axle | Max. Load 2.9Tons/2.9Tons/2.9Tons (Front/Middle/Rear) |
| Tyre | 12.5R20 (6 + 1) |
| Electrical appliance | 24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7800 × 2480 × 3660(Length×Width×Height) | ||
| Modification size(mm) | 3500+1250 | ||
| Total Mass(kg) | 8875 | Curb Weight(kg) | 8680 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3500+1250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 35 | Departure Angle (°) | 19 |
| Max. Speed(km/h) | 90 | Front/Suspension(mm) | 1250/1430 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
