Dongfeng longhead diesel truck chassis –Dongfeng 260hp civilian off-road truck chassis–off-road troop-carrying vehicle chassis export
Product Description

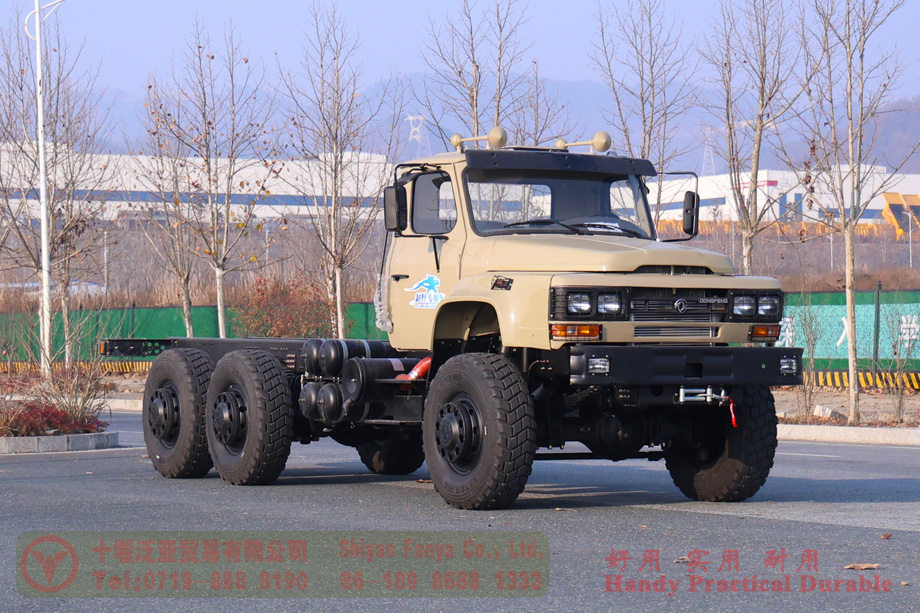

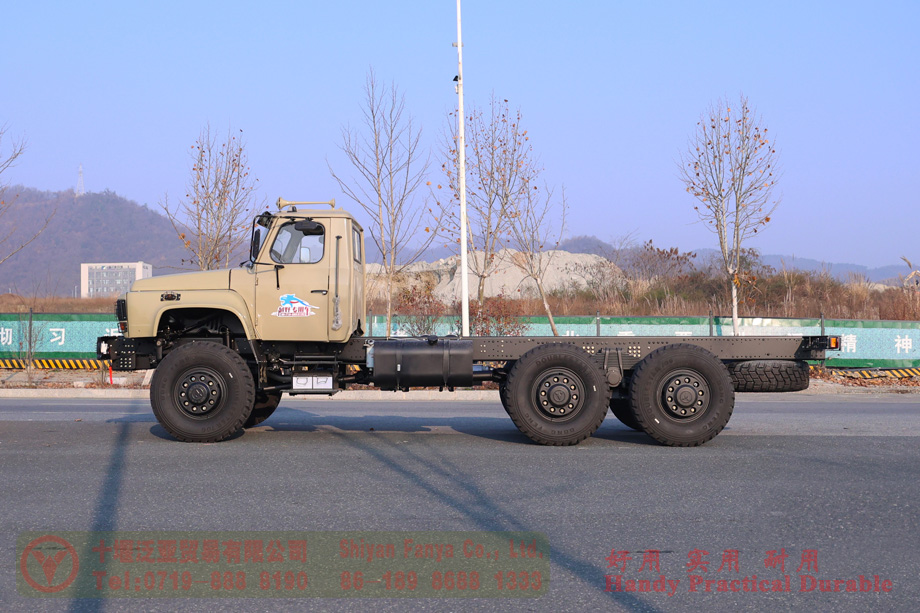

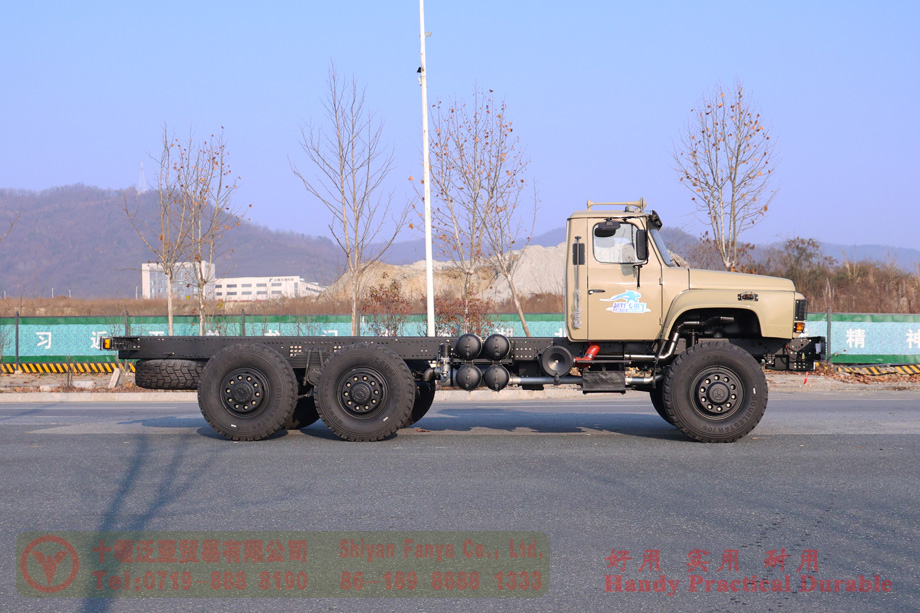

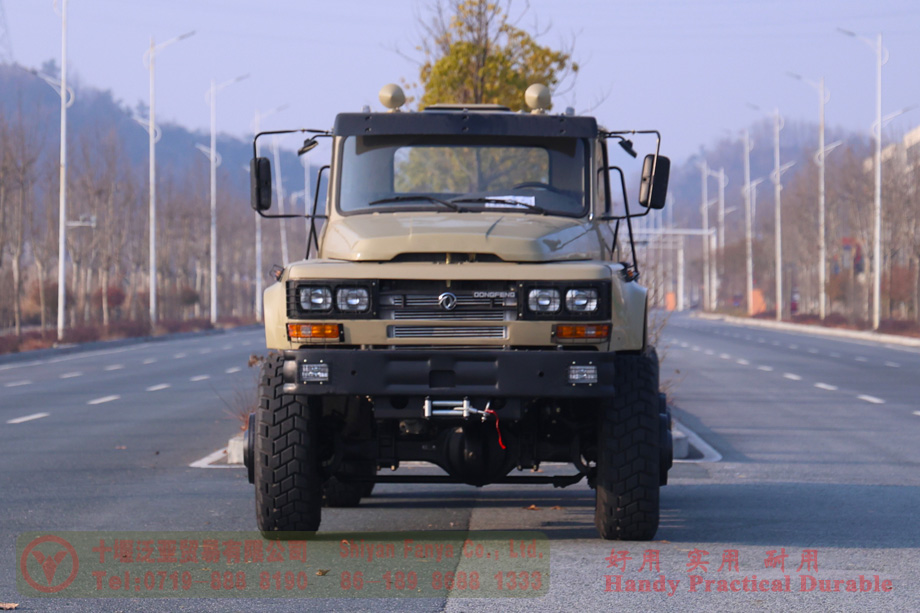

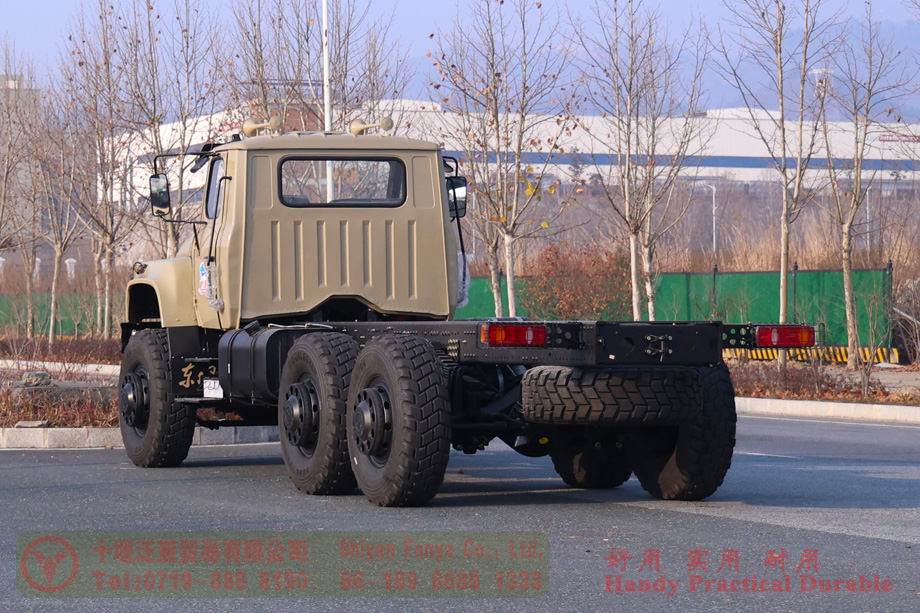

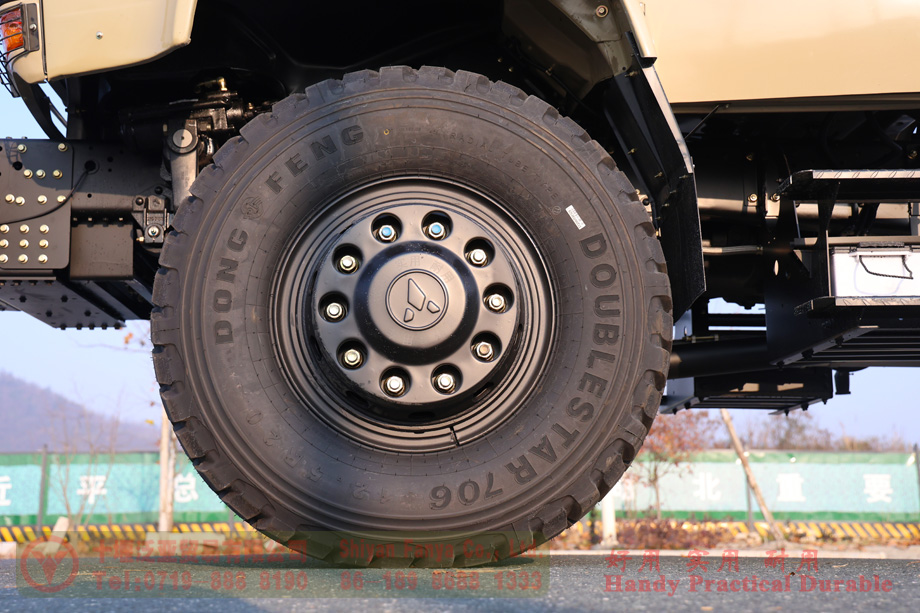

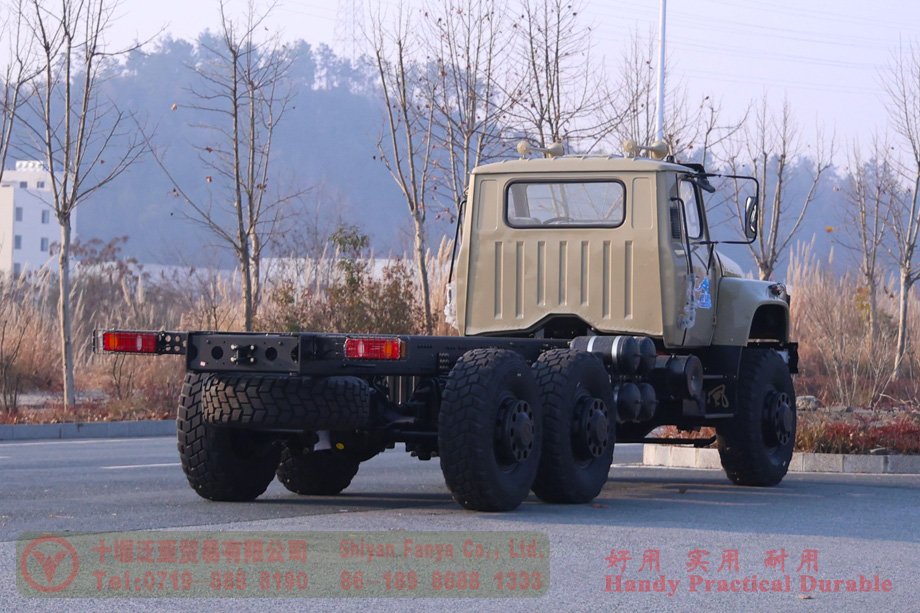

This six-wheel drive pointed chassis is a bespoke platform developed to meet specific customer requirements and tailored to the environmental conditions of its intended operating terrain. It features a Cummins 260 horsepower engine with robust six-wheel drive capability. Fitted with 12.5R20 deep-tread tyres, it delivers excellent traction even in desert and snowy conditions.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins C260 33 |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |

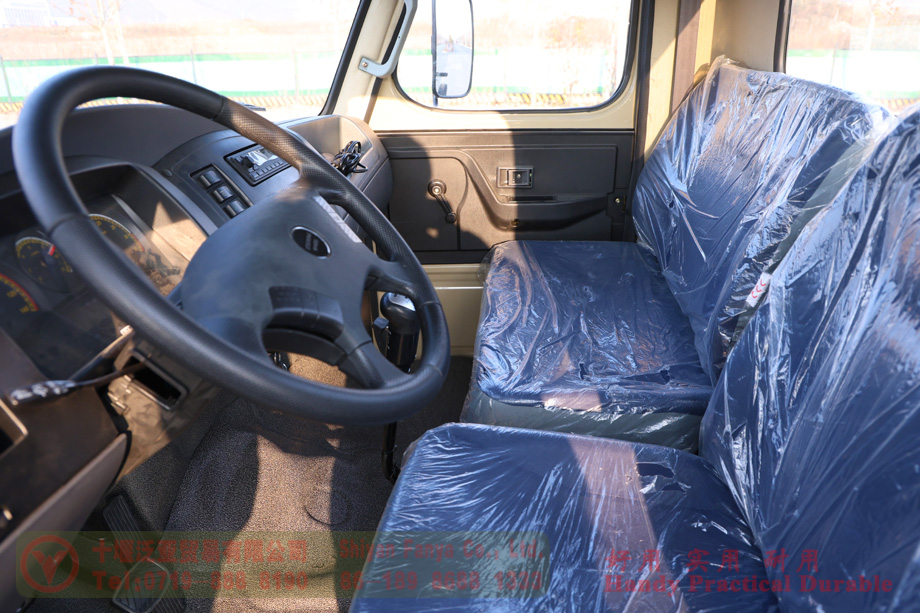

| Cab | Three seats |
| Axle | Max. Load 6.5Tons/10Tons/10Tons (Front/Middle/Rear) |
| Tyre | 12.5R20 (6 + 1) |
| Optional | Hydraulic clutch power, hydraulic steering power, exhaust brake |
| Performance Parameter | |||
| Overall Dimension(mm) | 8230 × 2525 × 2740(Length×Width×Height) | ||
| Modification size(mm) | ≥5250 | ||
| Total Mass(kg) | 25000 | Curb Weight(kg) | 7410 |
| Max. Power(kW/rpm) | 191 | Axlebase(mm) | 2010 |
| Wheelbase(mm) | 3850+1350 | Maximum Climbing Degree(％) | 60 |
| Approach Angle (°) | 31 | Departure Angle (°) | 22 |
| Ground Clearance(mm) | 295 | Fording depth (mm) | 620 |

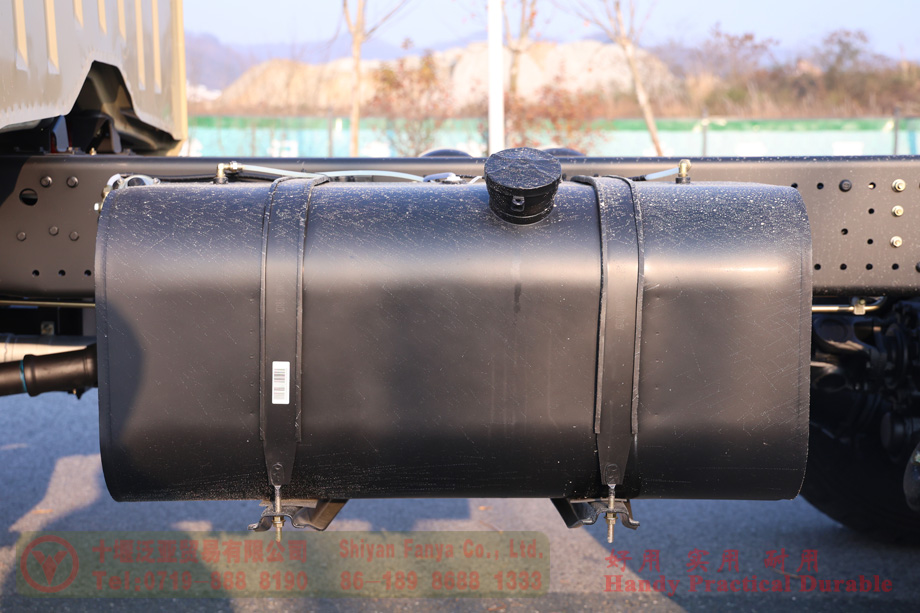

| Max. Speed(km/h) | 87 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
