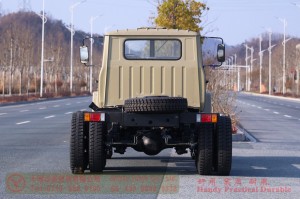

Dongfeng long head double-glass diesel truck chassis –EQ240 four-ton civilian off-road truck chassis–EQ2082 pointed Y25 off-road troop-carrying vehicle chassis
Product Description

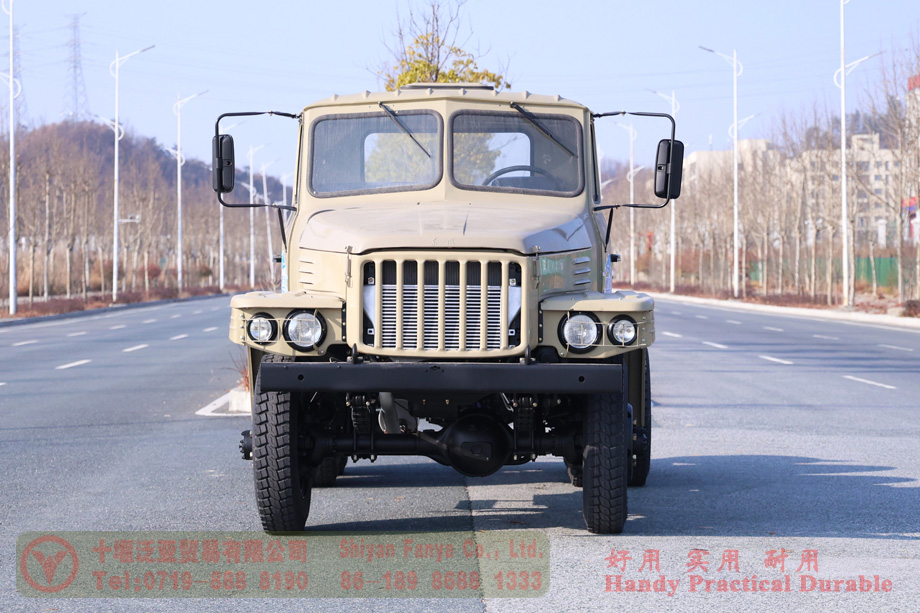

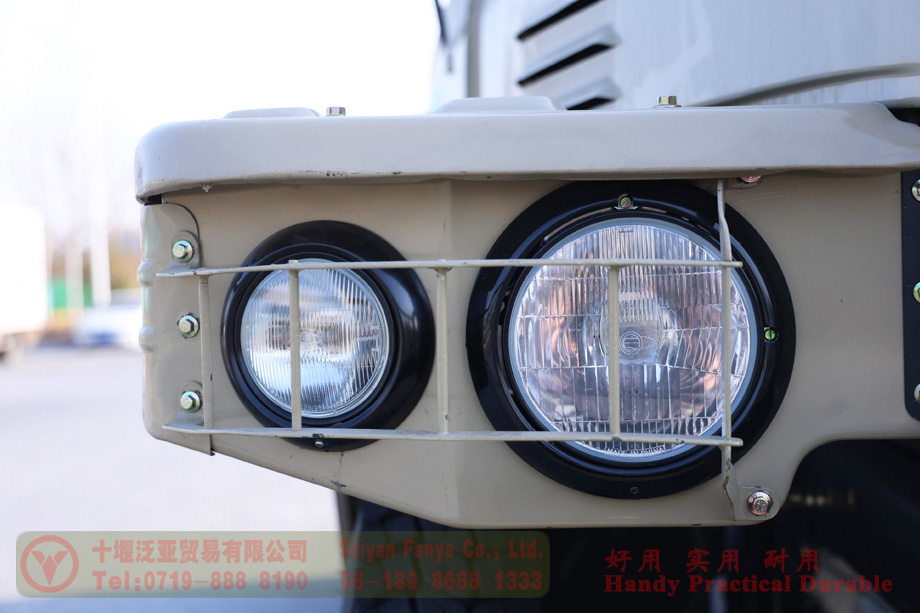

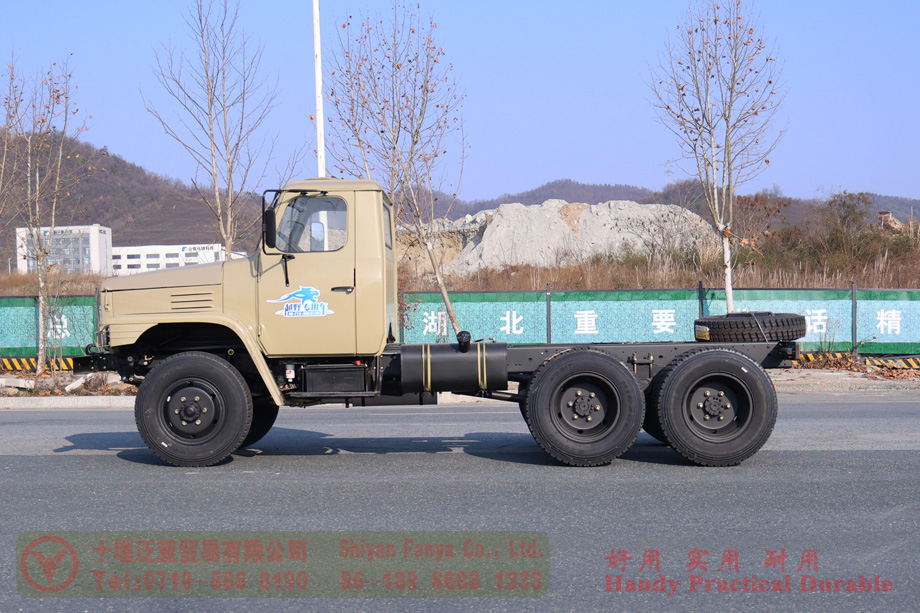

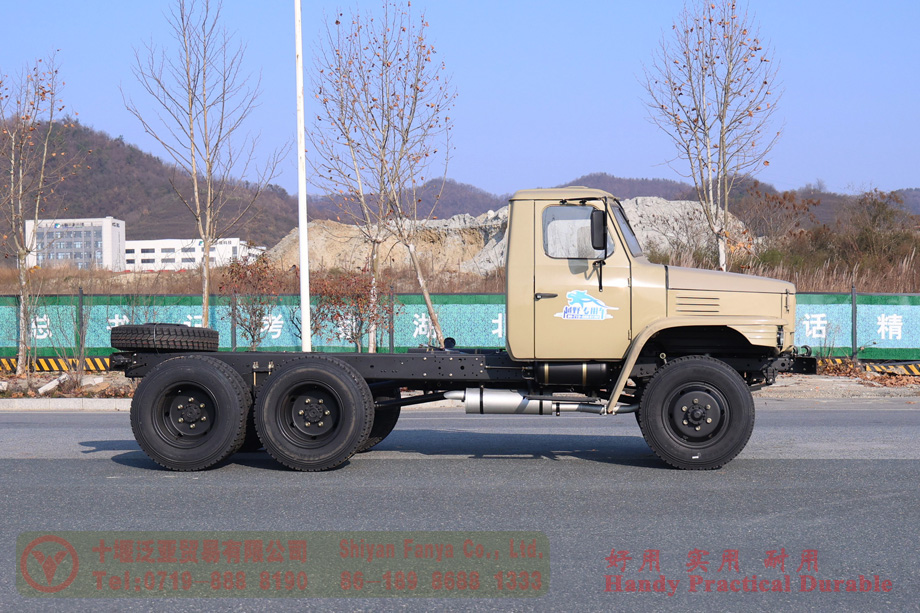

EQ2082, also called EQ240 or 25Y, is a 2.5-ton six-wheel-drive military long head diesel off-road vehicle chassis developed by Dongfeng in the early days, which was once called “hero vehicle”, with winch, light net, protective net, anti-aircraft lights, gun rack, towing device, and double tanks as its features. Because it has been tested in battle, the cross-country nature has been recognized, so it was later also civilianized.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |

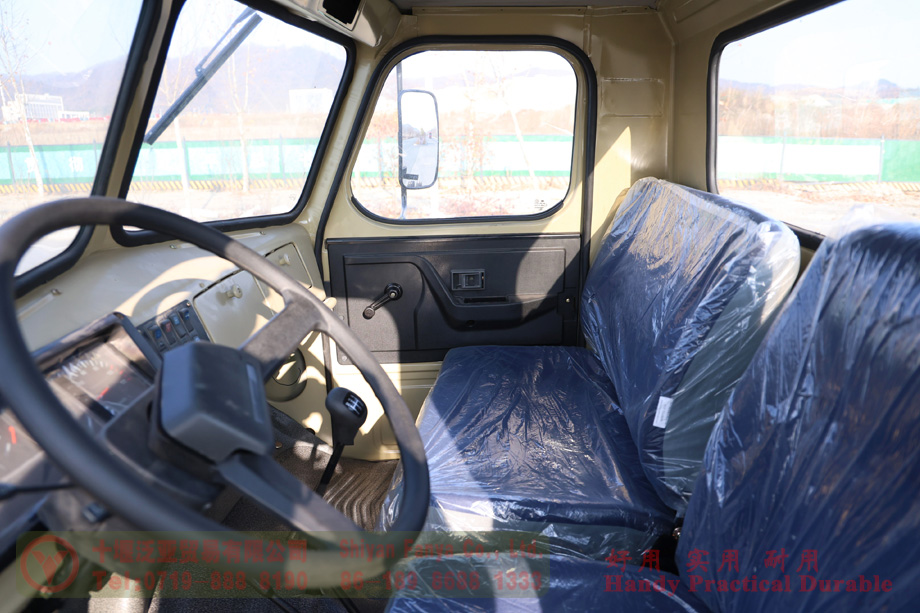

| Cab | Three seats |
| Axle | Max. Load 2.5Tons/2.5Tons/2.5Tons (Front/Middle/Rear) |
| Tyre | 8.25R20 (10 + 1) |

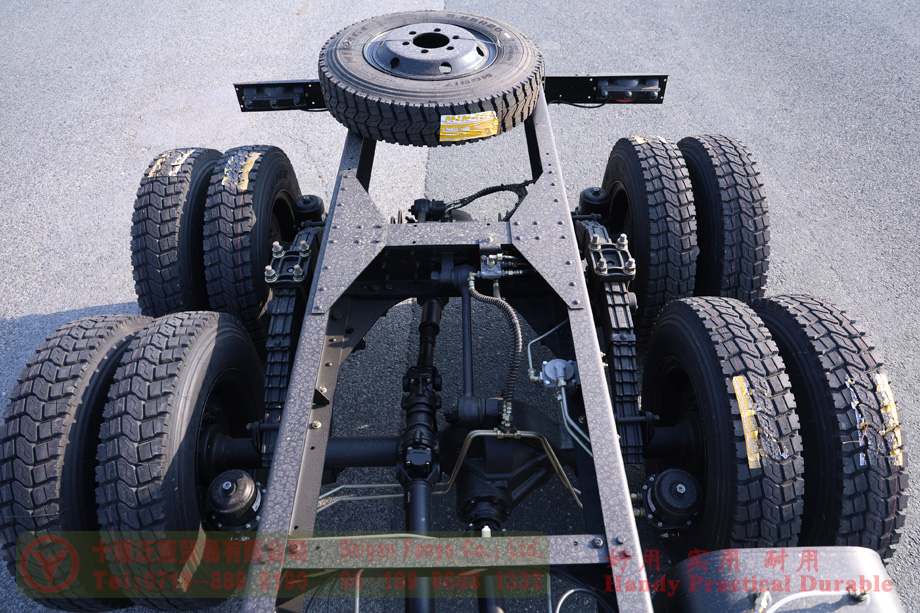

| Frame | 860*232(8+4) |
| Optional | Hydraulic clutch power, hydraulic steering power, exhaust brake |
| Performance Parameter | |||
| Overall Dimension(mm) | 6520 × 2540 × 2560(Length×Width×Height) | ||
| Modification size(mm) | ≥3410 | ||
| Total Mass(kg) | 9800 | Curb Weight(kg) | 4760 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1740/1992 |
| Wheelbase(mm) | 3190+1100 | Maximum Climbing Degree(％) | 60 |
| Approach Angle (°) | 39 | Departure Angle (°) | 29 |
| Ground Clearance(mm) | 280 | Fording depth (mm) | 570 |

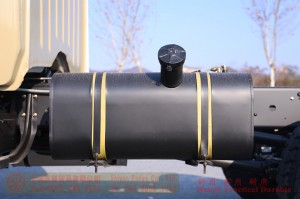

| Max. Speed(km/h) | 87 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
