Dongfeng EQ5125XLHL6D1 Training Tractor Chassis
Product Description

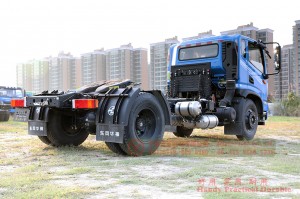

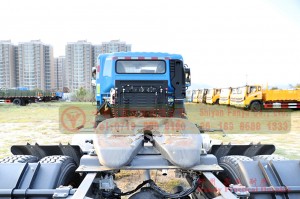

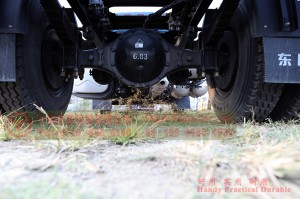

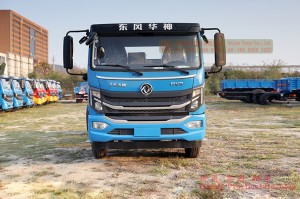

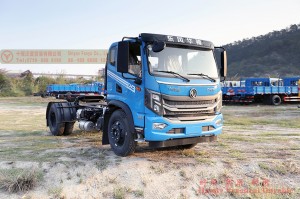

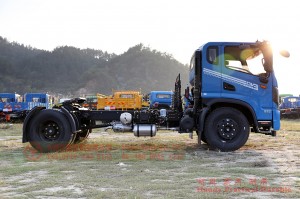

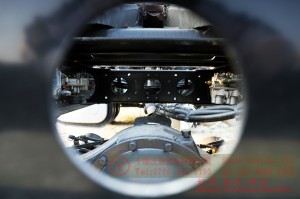

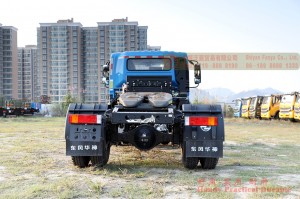

Dongfeng EQ51125XLHL6D1 training tractor vehicle chassis.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | YCY24120-60 |
| Gearbox | Manual five speed |
| Frame(mm) | 860×232×70 |

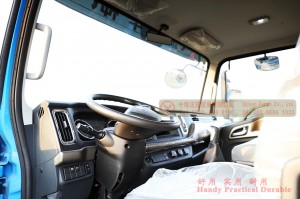

| Cab | Dongfeng flat-top one-and-a-half row luxury cab |
| Leaf Spring | 7/10 |
| Tyre | 9.00R20(6+1) |
| Performance Parameter | |||
| Overall Dimension(mm) | 6200 × 2130 × 2500(Length×Width×Height) | ||
| Wheel Track(mm) | 1880/1775 | ||
| Max. Power(kW/rpm) | 88 | Max. Torque(N.m) | 320 |
| Front Overhang(mm) | 1230 | Rear Overhang(mm) | 1020 |
| Wheelbase(mm) | 3950 | Displacement(mL) | 2360 |
| Approach Angle (°) | 15 | Departure Angle (°) | 36 |
| Ground Clearance(mm) | 255 | Fording depth (mm) | 450 |
| Max. Speed(km/h) | 88 | Tank Capacity(L) | 180 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
