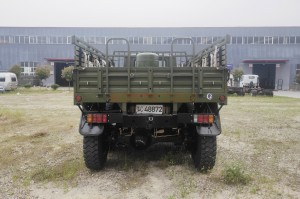

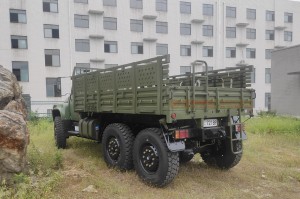

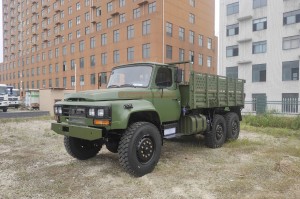

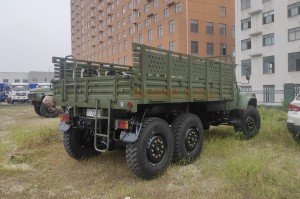

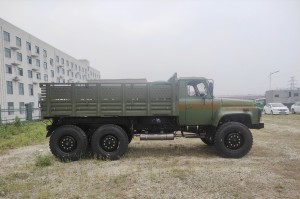

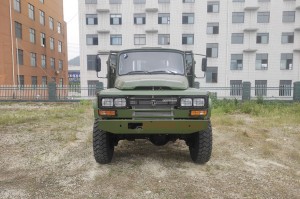

Dongfeng EQ2100 Six wheel drive flat head off-road truck
Product Description
Dongfeng EQ2100 off-road carrier as a classic domestic military vehicle, performance stability is the biggest feature of this vehicle, making the car favored by people around the world.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins ISB190 40 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Three seats,Dongfeng 140 single row cab |
| Axle | Max. Load 3.3Tons/4.1Tons/4.1Tons (Front/Middle/Rear) |
| Tyre | 12.00R20 (4 + 1) |
| Electrical applicance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 6520 × 2500 × 2480(Length×Width×Height) | ||
| Modification size(mm) | 4700 | ||
| Total Mass(kg) | 11500 | Curb Weight(kg) | 6010 |
| Max. Power(kW/rpm) | 140 | Max. Vertical Crossing Height(N.m) | 470 |
| Wheelbase(mm) | 3645 + 1240 | Displacement(L) | 5.9 |
| Approach Angle (°) | 35 | Departure Angle (°) | 46 |
| Ground Clearance(mm) | 320 | Fording depth (mm) | 1225 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 210+60 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
