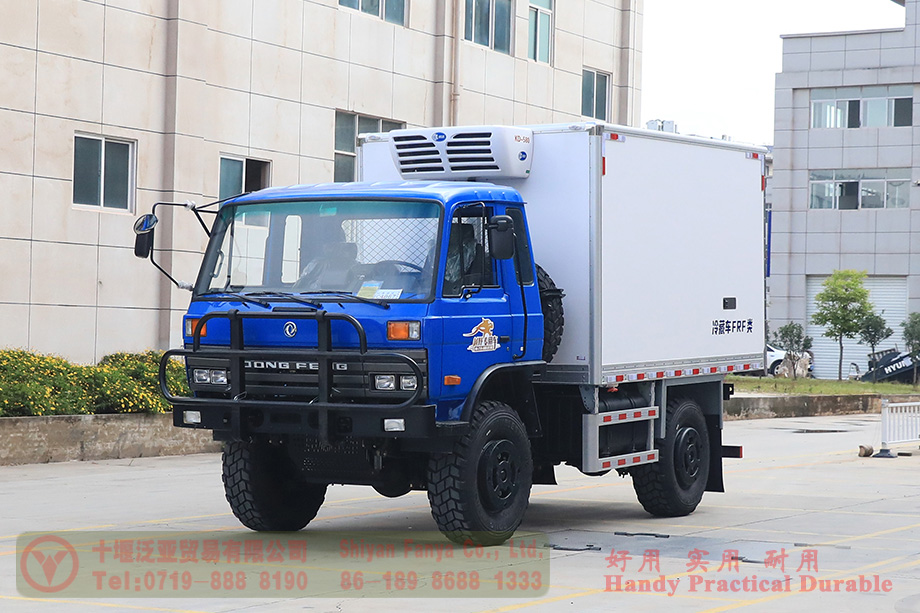

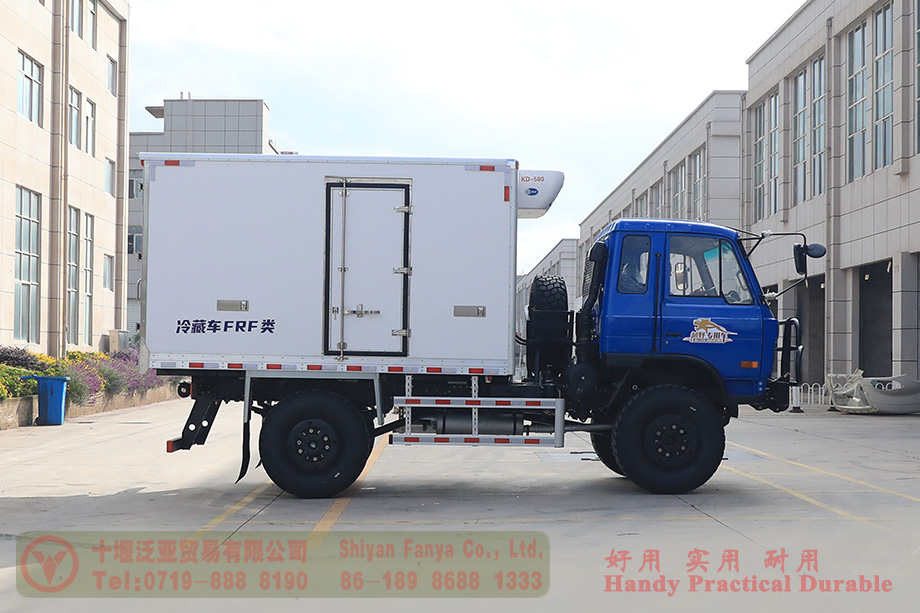

Dongfeng EQ2070 Chassis-Based Refrigerated Truck Conversion — Refrigerated Truck Export Manufacturer — 4WD 15-Cube Refrigerated Truck
Product Description
Refrigerated trucks are used to transport goods requiring low-temperature preservation or constant-temperature storage (such as food, pharmaceuticals, vaccines, etc.), with their core function being to maintain stable cargo compartment temperatures through refrigeration equipment.
Insulation Structure: The cargo compartment is constructed from polyurethane or fiberglass reinforced plastic (FRP), incorporating thermal break insulation design to minimize heat transfer and ensure temperature stability. Primarily used in cold chain logistics, it serves sectors including food distribution, pharmaceutical transportation, and fresh agricultural product transport.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |
| Cab | Three seats |
| Axle | Max. Load 3.5Tons/3.5Tons (Front/Rear) |
| Tyre | 12.5R20 (4 + 1) |

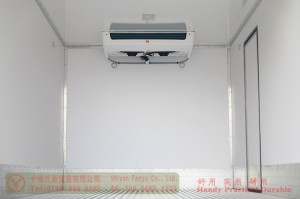

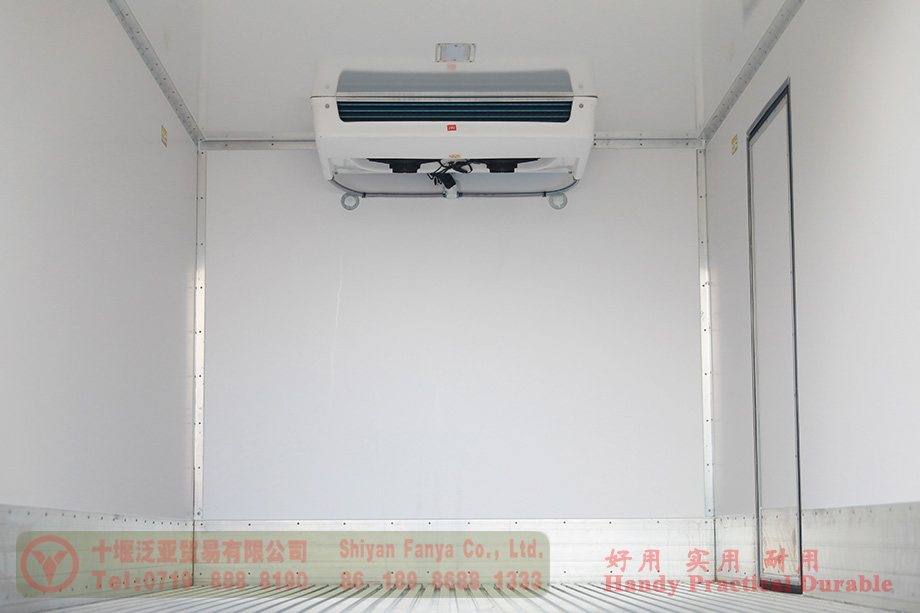

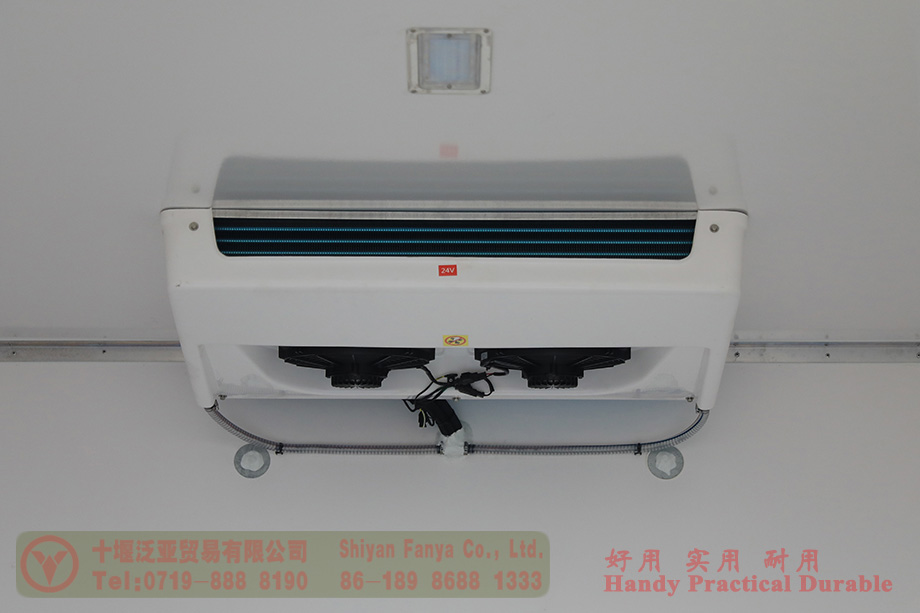

| Other | The interior and exterior of the compartment feature VR food-grade fiberglass skins, with an 8cm-thick high-density polyurethane foam panel in between. The subframe is constructed from G700 high-strength steel using an electrophoretic coating process. The floor incorporates stainless steel checker plate and aluminum alloy ventilation channels, equipped with a Kaida 580 refrigeration unit. |
| Performance Parameter | |||
| Overall Dimension(mm) | 6790× 2440 × 3700(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 3600× 2200 × 1900(Length×Width×Height) | ||
| Total Mass(kg) | 7910 | Curb Weight(kg) | 5560 |
| Front Suspension（mm） | 1360 | Rear Suspension（mm） | 1820 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 4200 | Displacement(L) | 5.9 |
| Approach Angle (°) | 35 | Departure Angle (°) | 26 |
| Ground Clearance(mm) | 305 | Fording depth (mm) | 520 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 210 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
