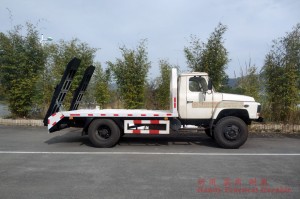

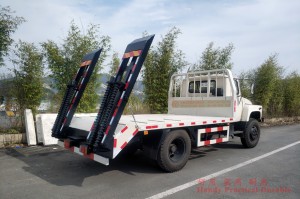

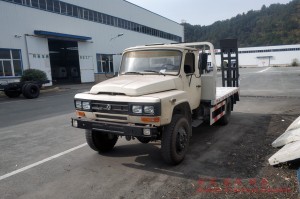

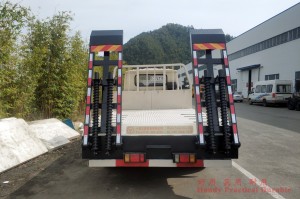

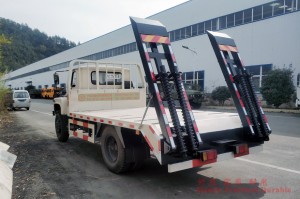

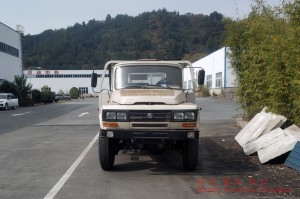

Dongfeng EQ1093 Long-head Flatbed Transporter
Product Description
Dongfeng EQ1093 Long-head Flatbed Transporter.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Three seats |
| Axle | Max. Load 2.5Tons/7.5Tons (Front/Rear) |
| Tyre | 9.00-20 (6 + 1) |
| Electrical Appliance | 24V Circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7800 × 2500 × 2550(Length×Width×Height) | ||
| Plate size(mm) | 3750 × 2500 × 1700 | ||
| Curb Weight(kg) | 5620 | ||
| Max. Power(kW/rpm) | 125 | Max. Torque(N.m) | 560 |
| Wheelbase(mm) | 3950 | Displacement(L) | 5.9 |
| Approach Angle (°) | 38 | Departure Angle (°) | 18 |
| Ground Clearance(mm) | 265 | Fording depth (mm) | 600 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 140 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
