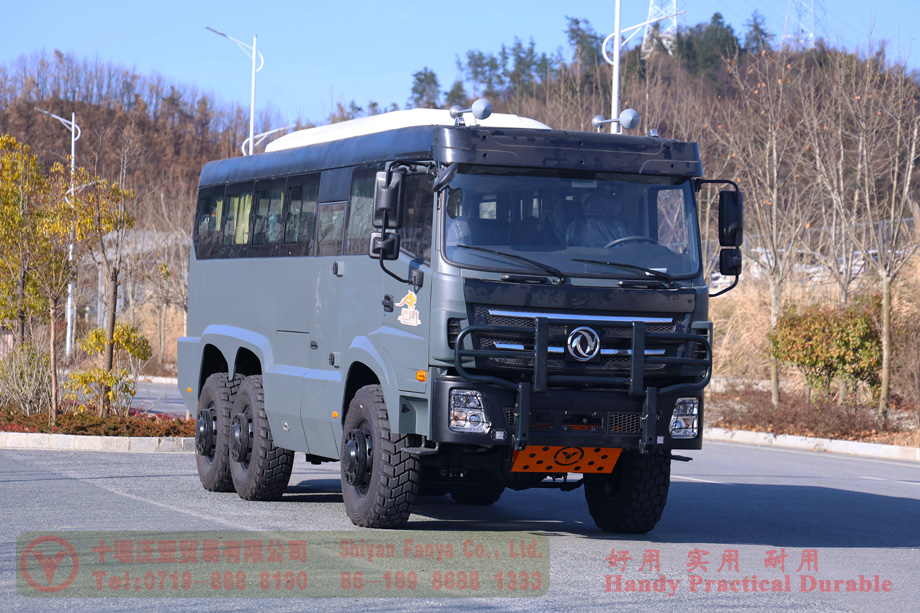

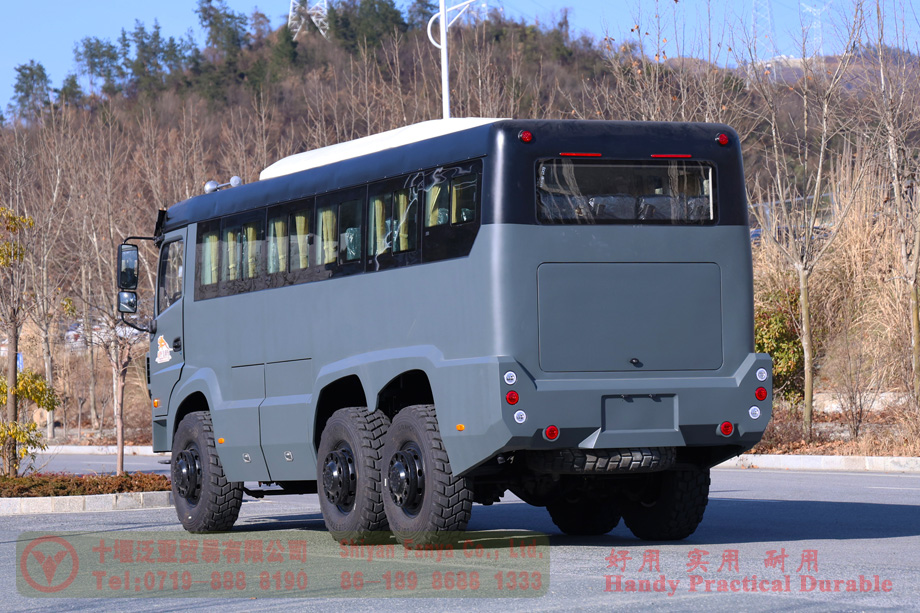

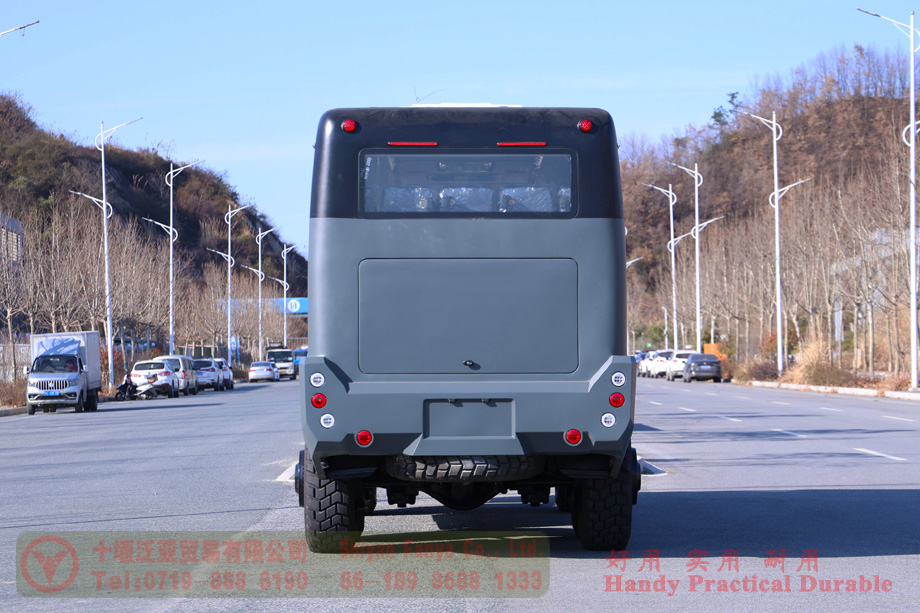

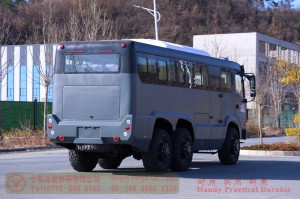

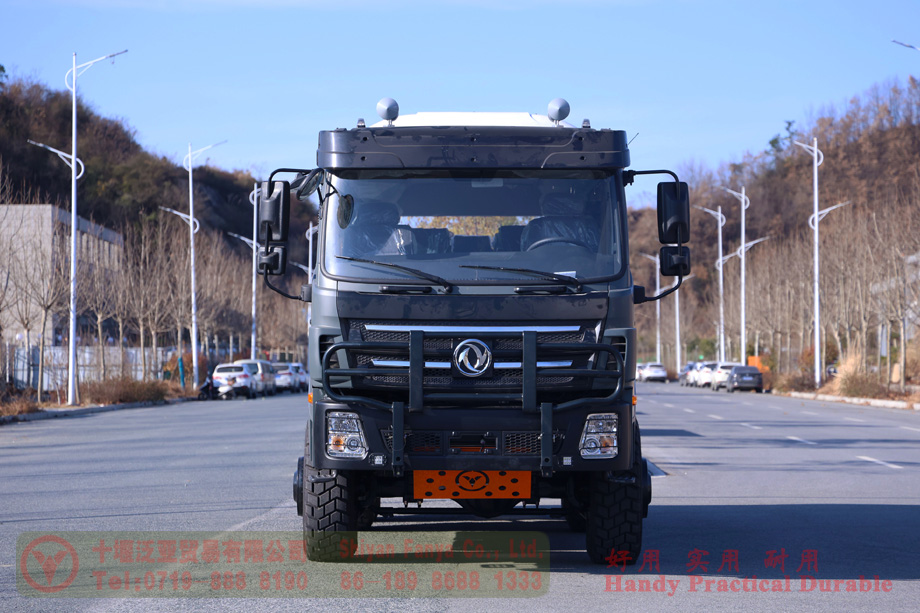

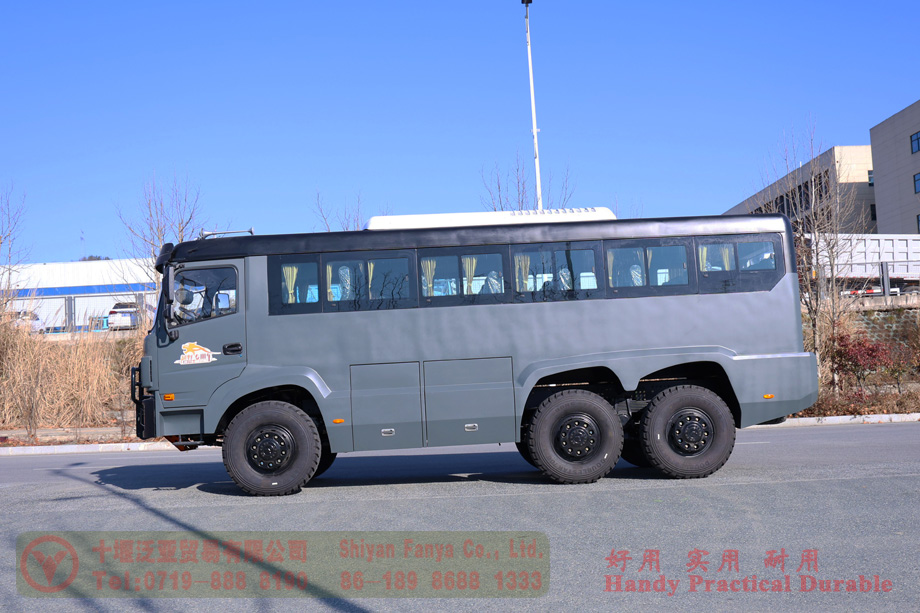

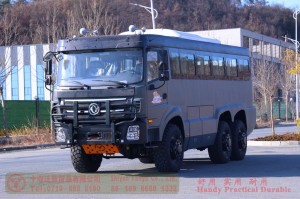

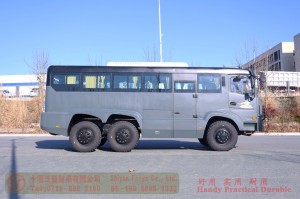

Dongfeng 6*6 bus–Weichai 340hp bus–27-seater medium bus–Dongfeng 8m bus
Product Description
The bus is used to transport people between towns and cities as the main means of transportation, often on highways and national roads, compared to rural mountain roads to be much smoother and lighter than carrying people than cargo, so usually the bus designers will focus on comfort. In mountain roads, deserts, the Gobi and other areas, ordinary buses will be driving very hard, our company has developed a special six-wheel drive off-road bus to facilitate the transportation of passengers under adverse road conditions.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | WP10.340E32 |
| Gearbox | Mechanical Manual Twelve Speed |
| Transfer case | High-low speed |

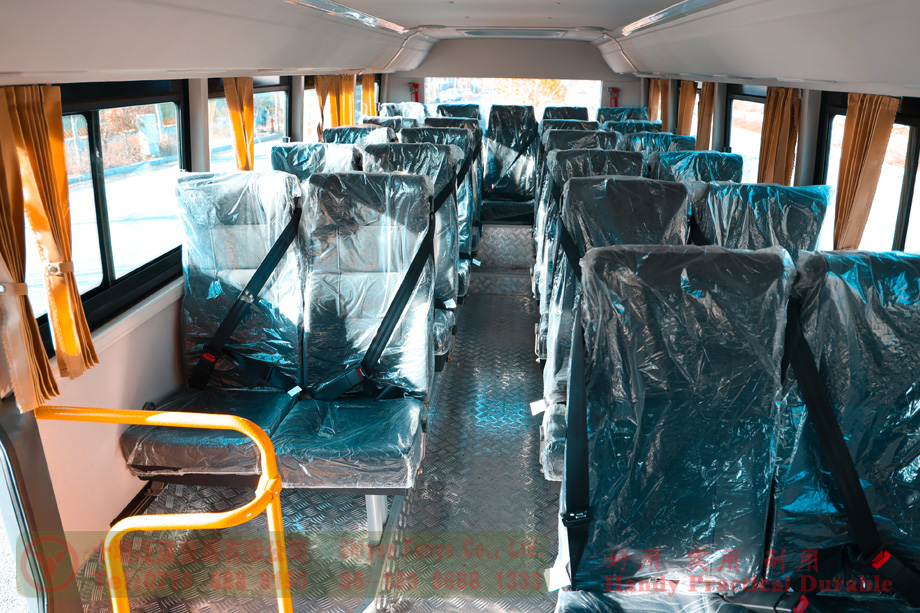

| Members | 25+2 |
| Frame | 860×280，8+8 |
| Axle | Max. Load7Tons/10Tons/10Tons (Front/Middle/Rear) |
| Tyre | 12.5R20 (6 + 1) |
| Suspension | Steel plate spring 7/8 pieces |
| Performance Parameter | |||
| Overall Dimension(mm) | 8190 × 2480 × 3310(Length×Width×Height) | ||
| Total Mass(kg) | 25000 | No. of cylinders | 6 |
| Max. Power(kW/rpm) | 250 | Max. climbing degree（％） | 60 |
| Wheelbase(mm) | 3600+1300 | Displacement(L) | 9.726 |
| Approach Angle (°) | 23 | Departure Angle (°) | 25 |
| High in passenger area(mm) | 1820 | Curb weight (kg) | 10220 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 300 |
| Tire spacing(mm) | 2010 | Min.ground clearance(mm) | 315 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
