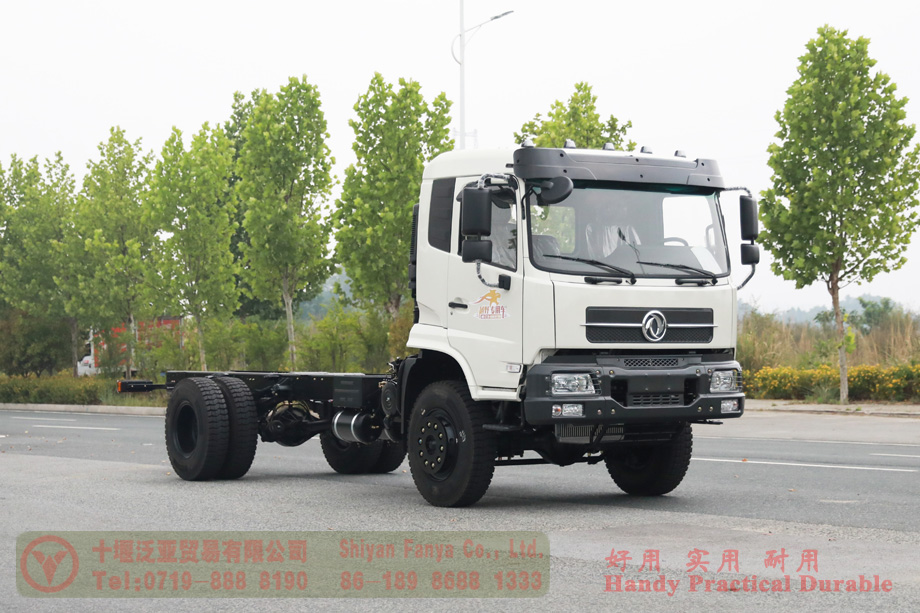

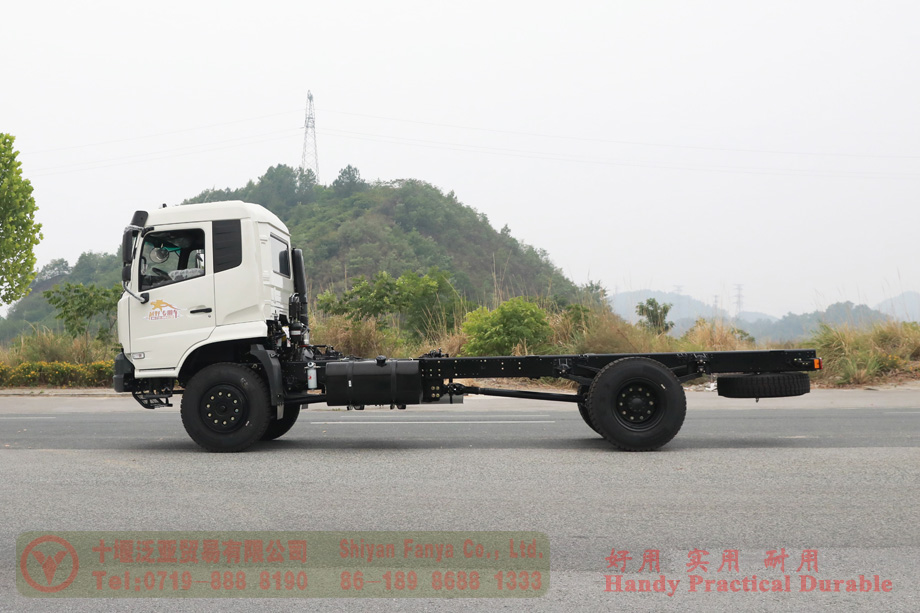

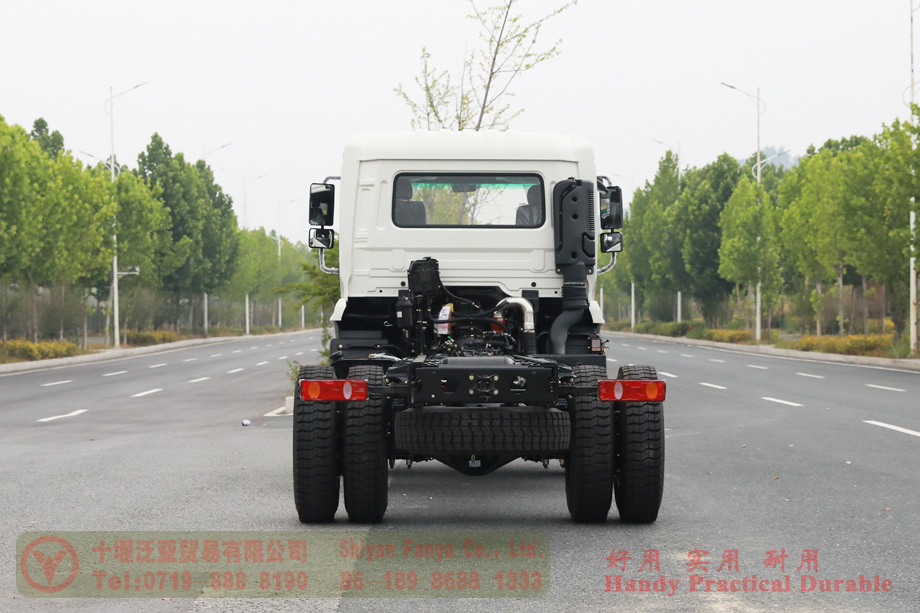

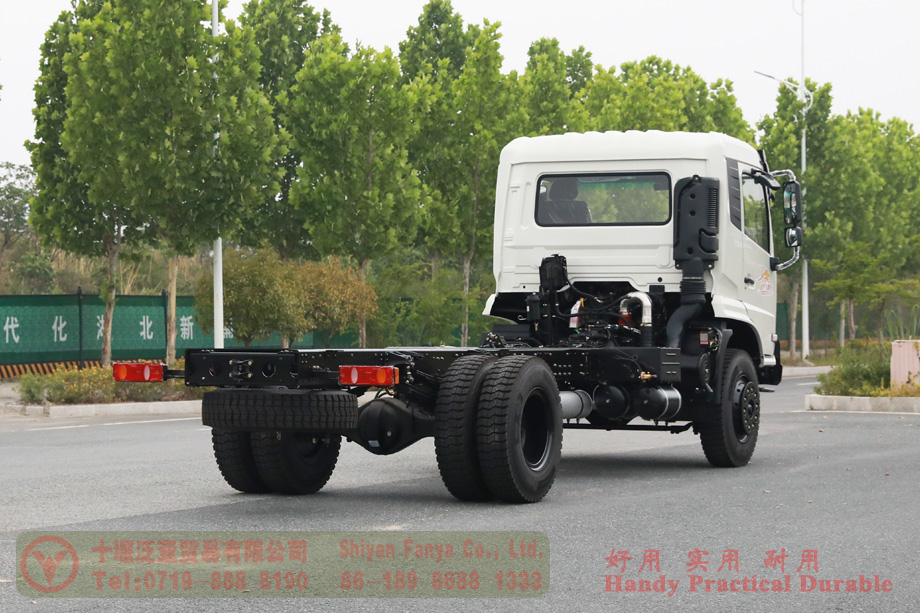

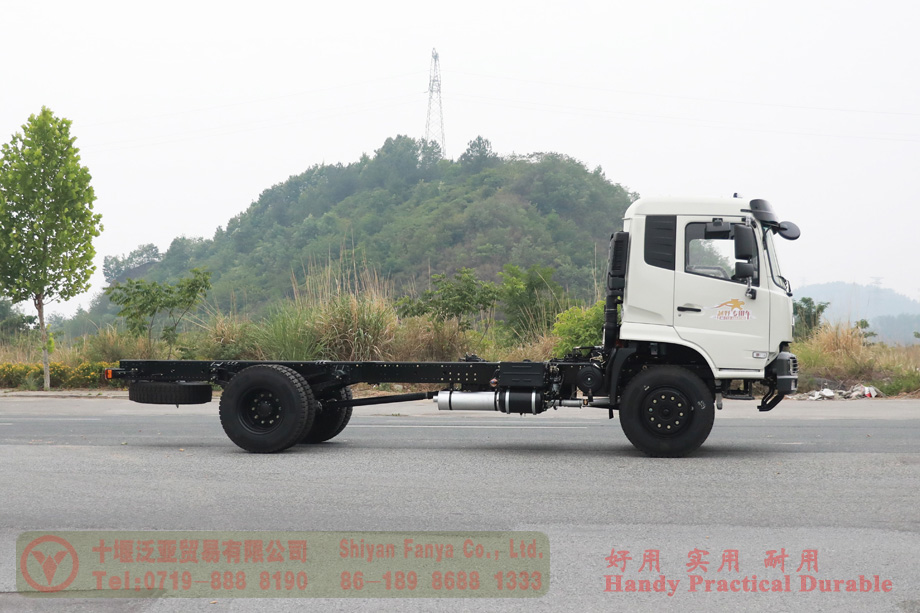

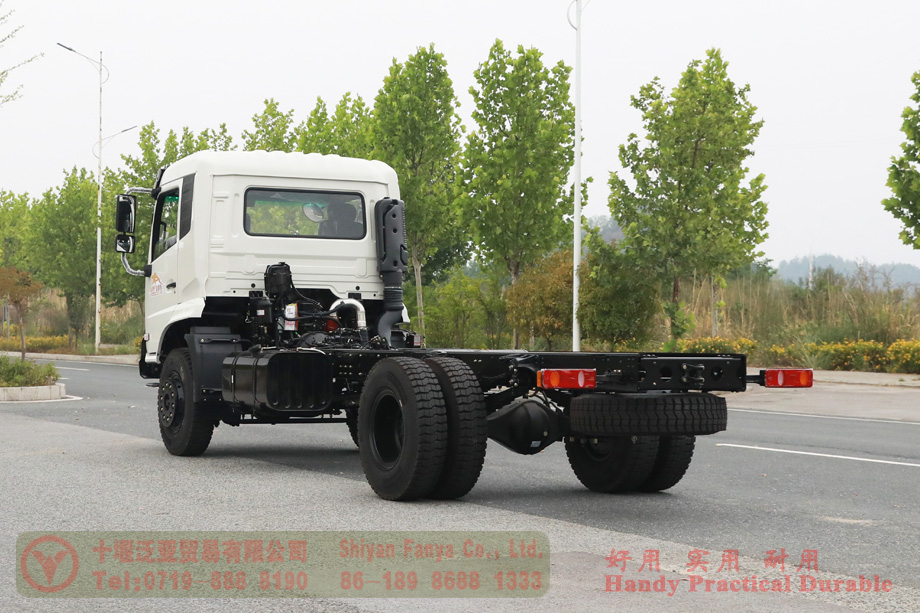

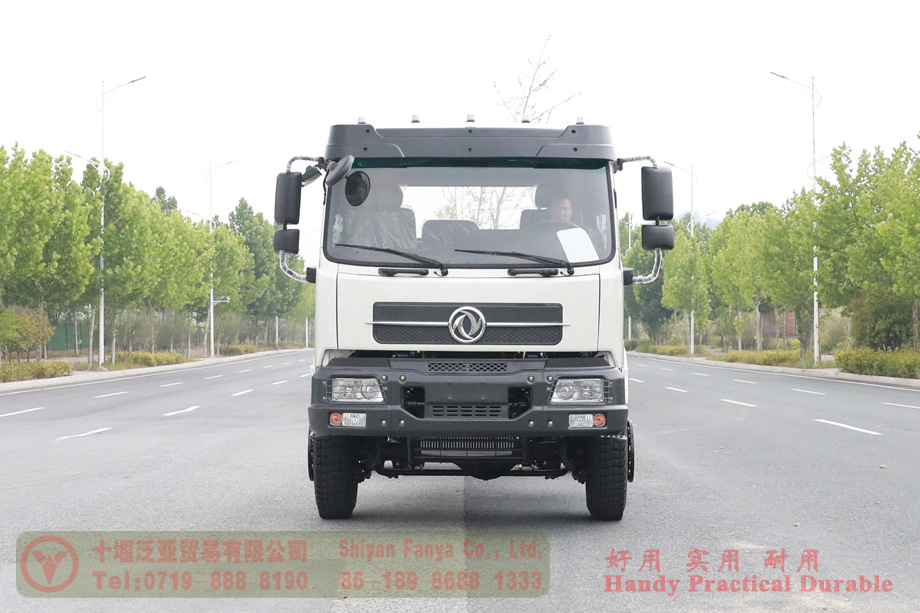

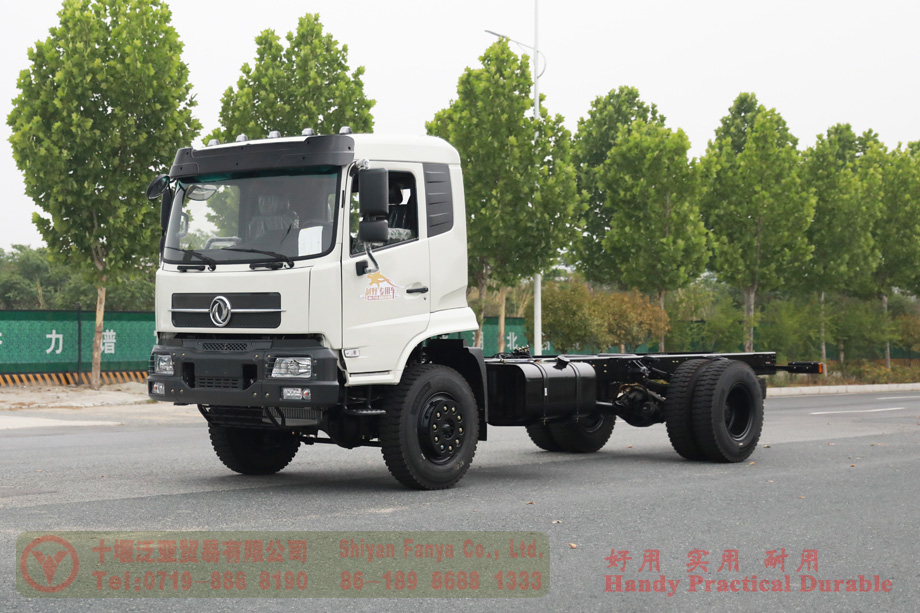

Dongfeng 4WD truck chassis – Cummins 210hp convertible chassis – 4WD off-road truck chassis for export
Product Description
4*4 Dongfeng special truck chassis, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields. Whether it’s a city road or a remote mountain road, with its excellent off-road performance, unparalleled driving experience.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B210 33 |
| Gearbox | Mechanical Manual Eight Speed |
| Transmission | High and low speed |
| Cab | Flathead row half |
| Axle | Max. Load 5Tons/10Tons (Front/Rear) |
| Tyre | 10.00R20(6 + 1) |
| Frame | 860*250mm，8+6 |
| Performance Parameter | |||
| Chassis Dimension(mm) | 8250× 2430 × 3080(Length×Width×Height) | ||
| Modification Dimension(mm) | ≥6000 | ||
| Upper frame plane off the ground(mm) | 1090 | ||
| Total Mass(kg) | 15000 | No. of Members | 3 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 2035/1818 |
| Wheelbase(mm) | 4700 | Displacement(L) | 5.9 |
| Approach Angle (°) | 26 | Departure Angle (°) | 15 |
| Fording Depth(mm) | 580 | Ground Clearance(mm) | 470 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
