Product Description

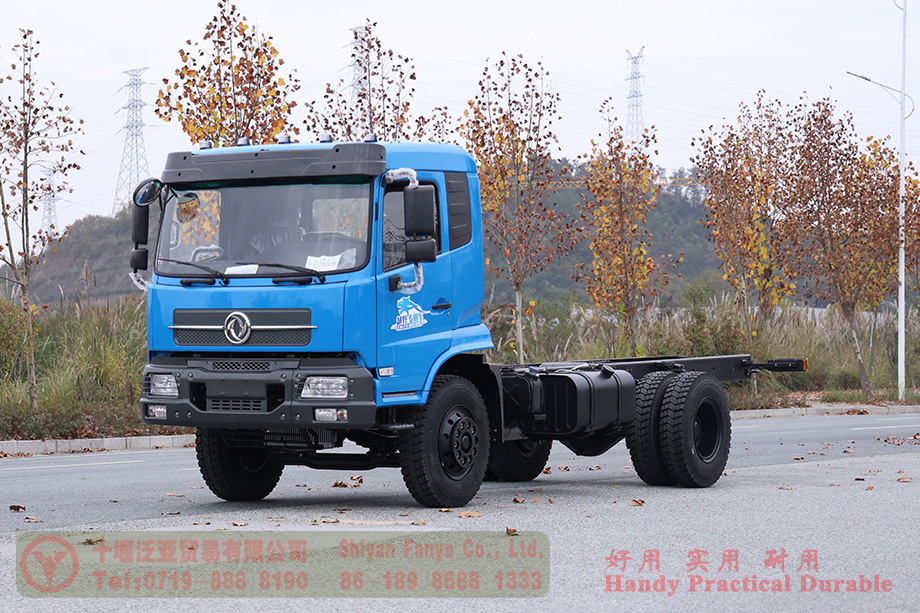

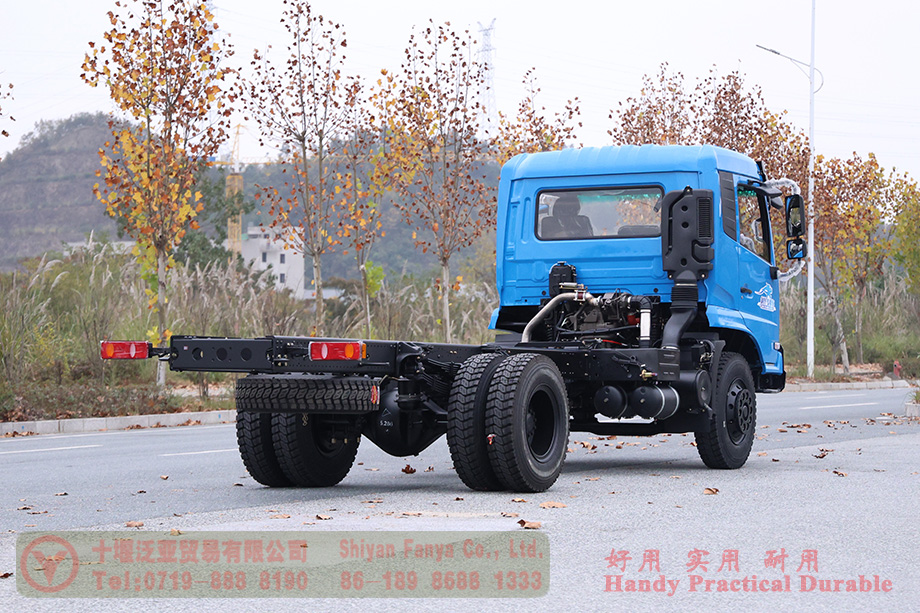

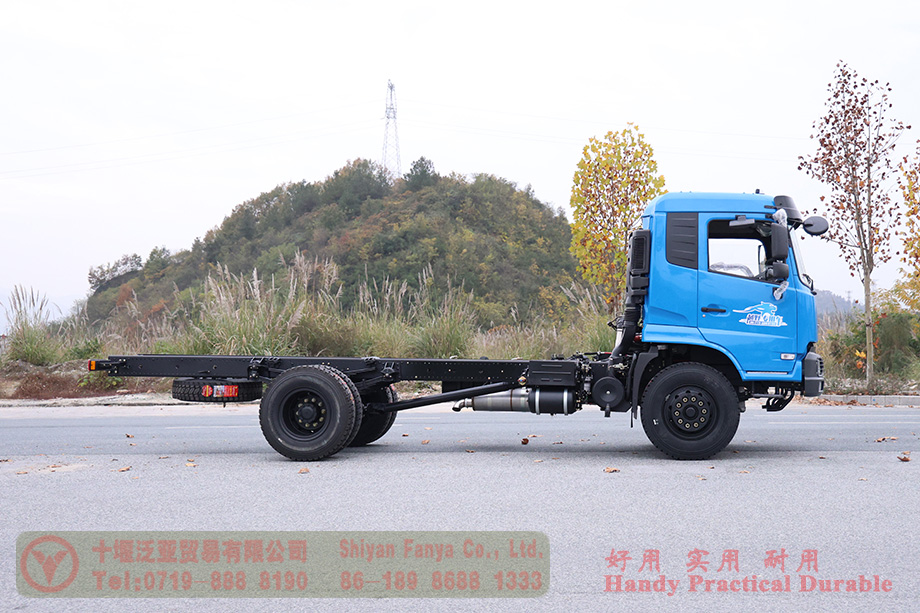

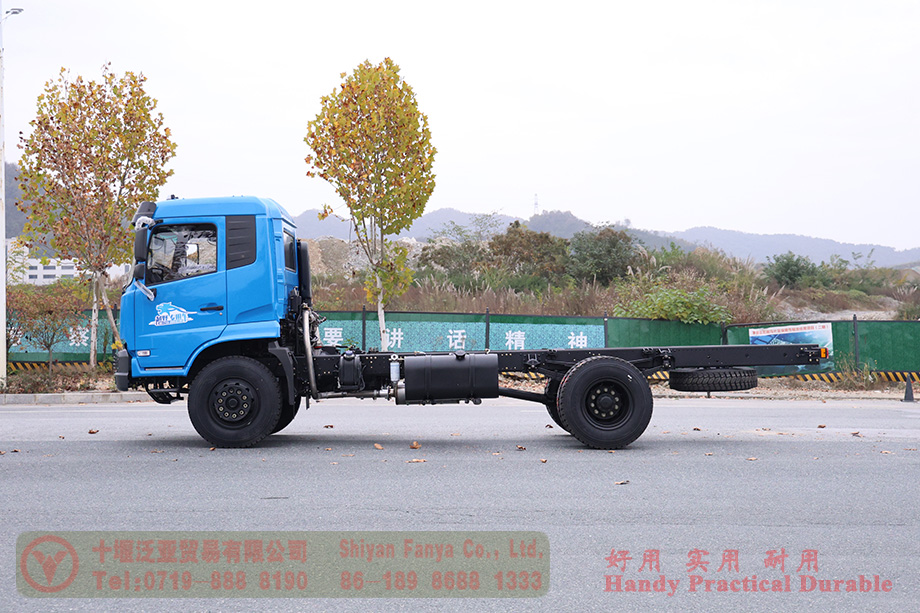

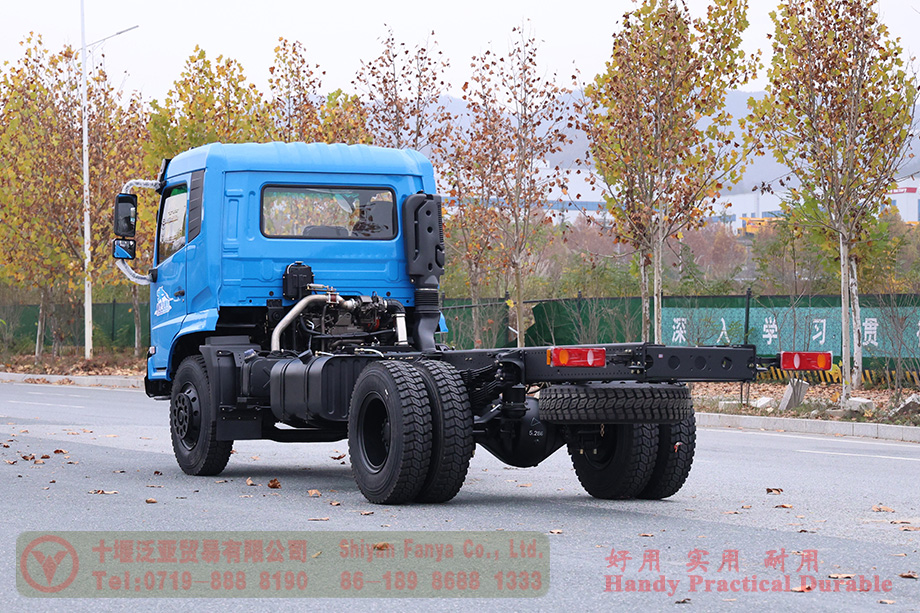

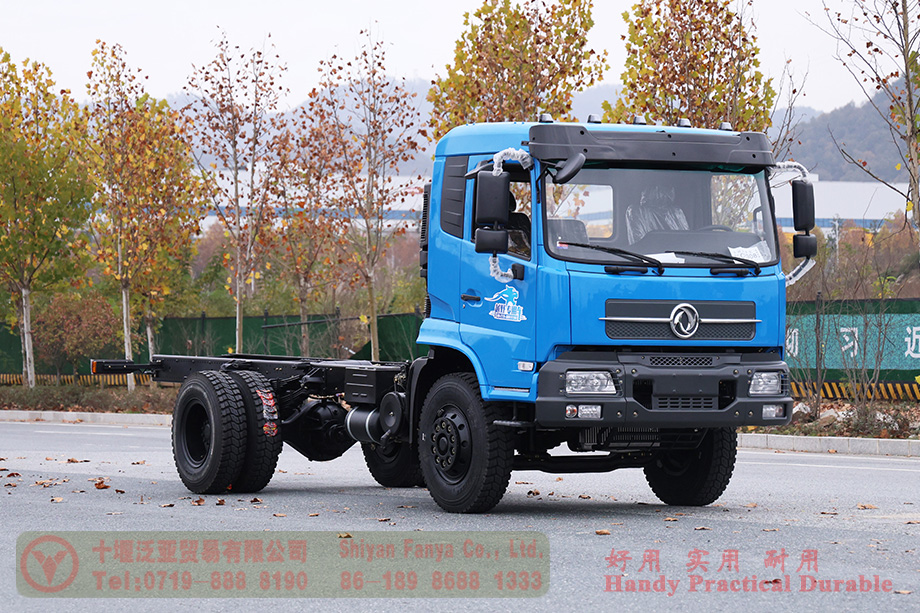

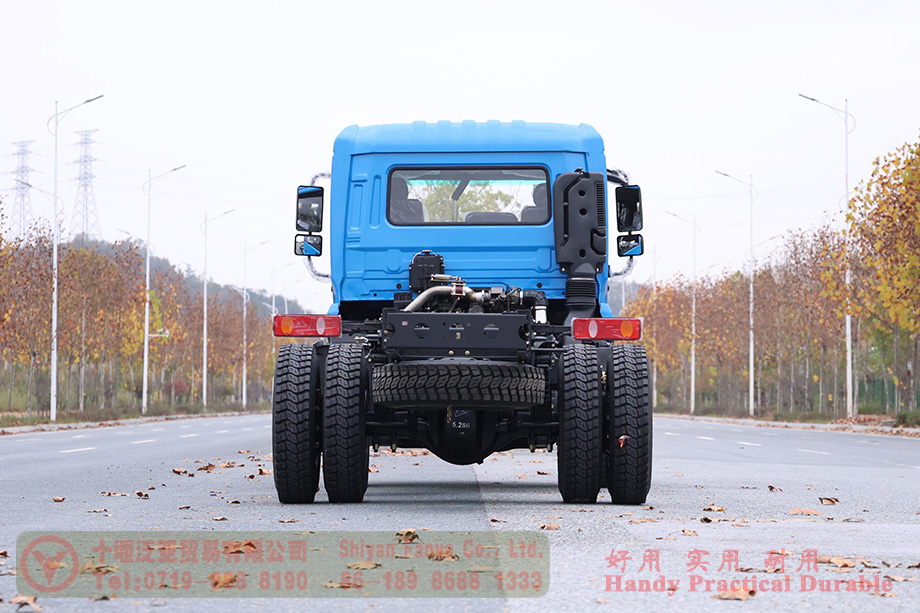

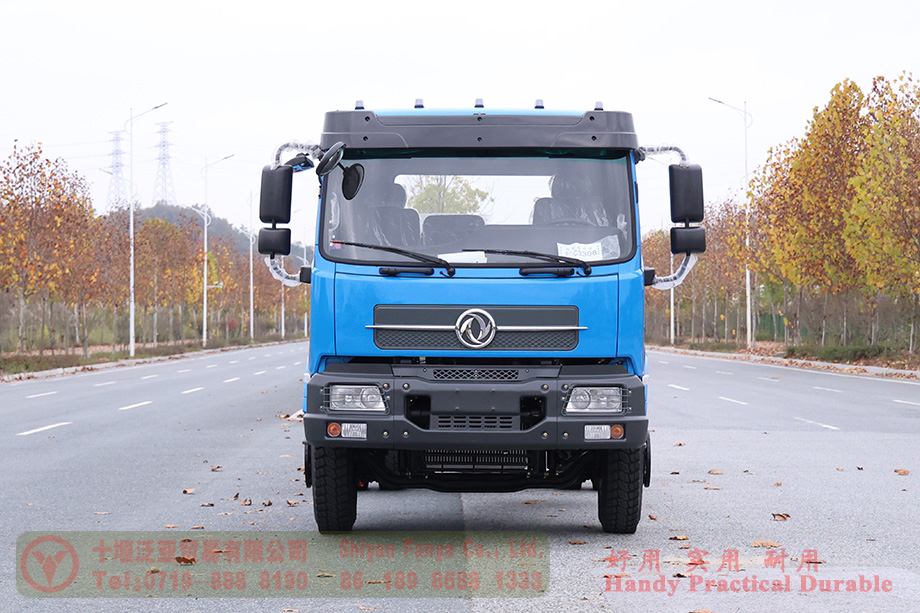

4*2 Dongfeng sprinkler chassis, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields. Whether it’s a city road or a remote mountain road, with its excellent off-road performance, unparalleled driving experience.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | YC6JA200-50 |
| Gearbox | Mechanical Manual eight speed |

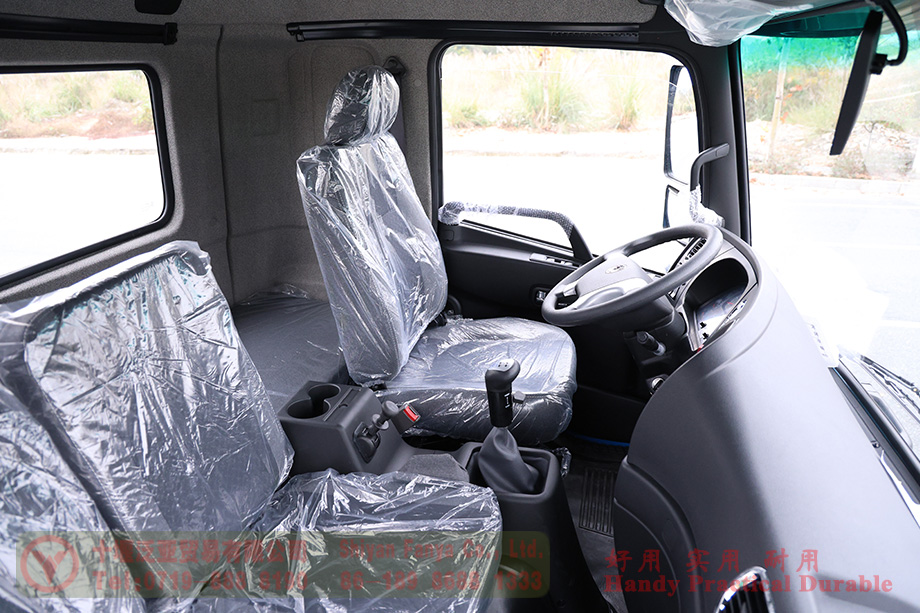

| Cab | Flathead one and a half row |
| Axle | Max. Load 5Tons/13Tons (Front/Rear) |
| Tyre | 10.00R20(6 + 1) |
| Suspension | Steel plate springs 8/10+10 |

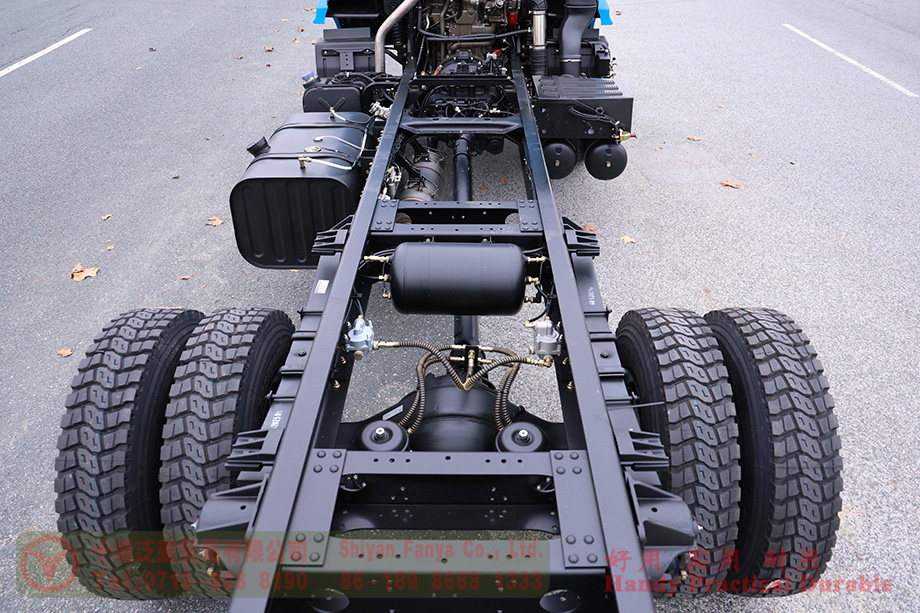

| Frame | 860*250mm，double layer |
| Performance Parameter | |||
| Chassis Dimension(mm) | 8240× 2500 × 2890(Length×Width×Height) | ||
| Modification Dimension(mm) | ≥5860 | ||
| Upper frame plane off the ground(mm) | 1273 | ||
| Total Mass(kg) | 18000 | No. of Members | 3 |
| Max. Power(kW/rpm) | 147 | Axlebase(mm) | 1975/1865 |
| Wheelbase(mm) | 4200 | Displacement(L) | 6.87 |
| Approach Angle (°) | 21 | Departure Angle (°) | 17 |
| Fording Depth(mm) | 430 | Ground Clearance(mm) | 250 |
| Torque（N.m） | 800 | Obstacle height（mm） | 480 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
