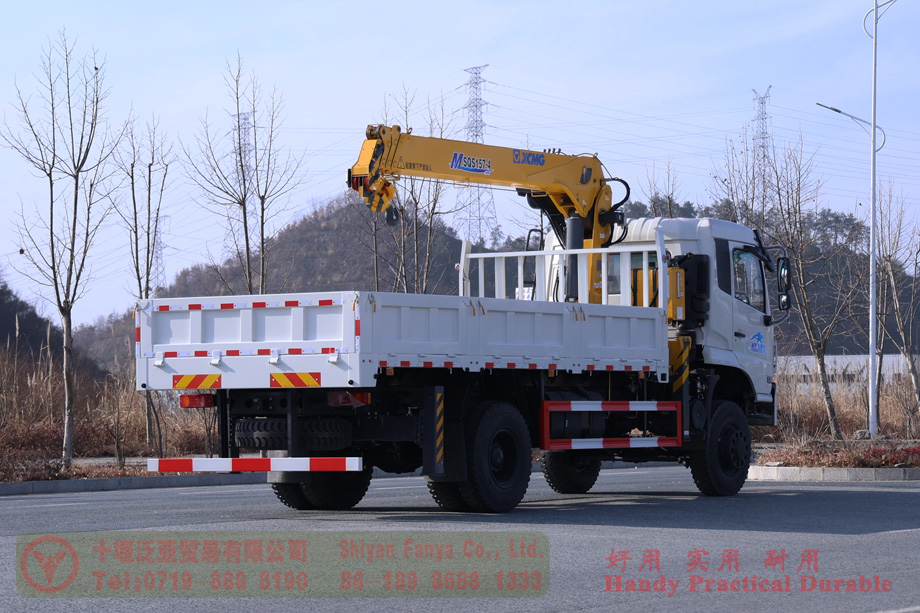

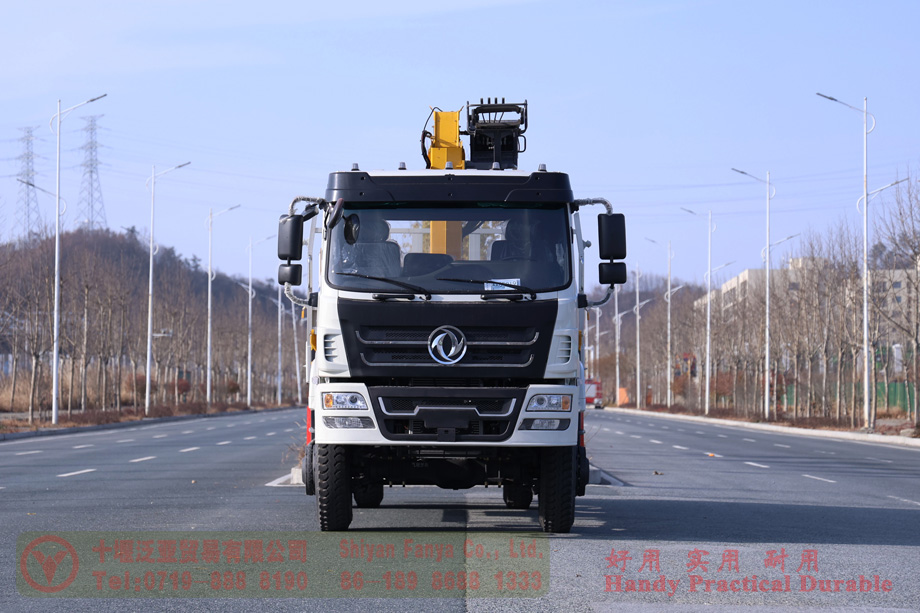

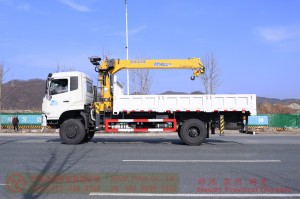

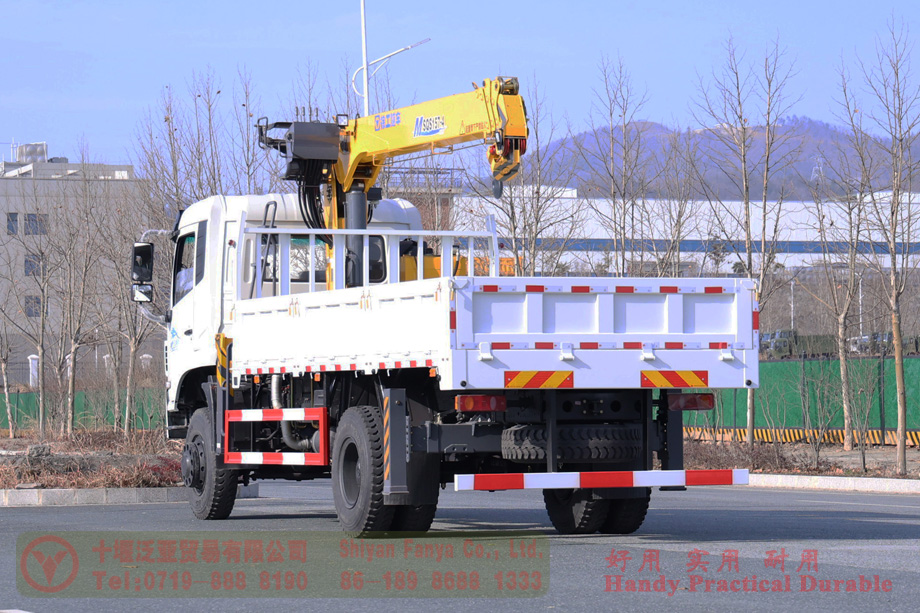

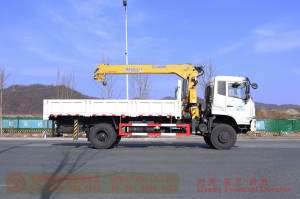

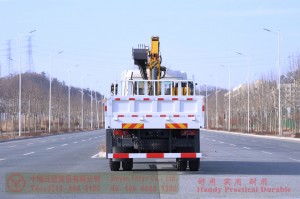

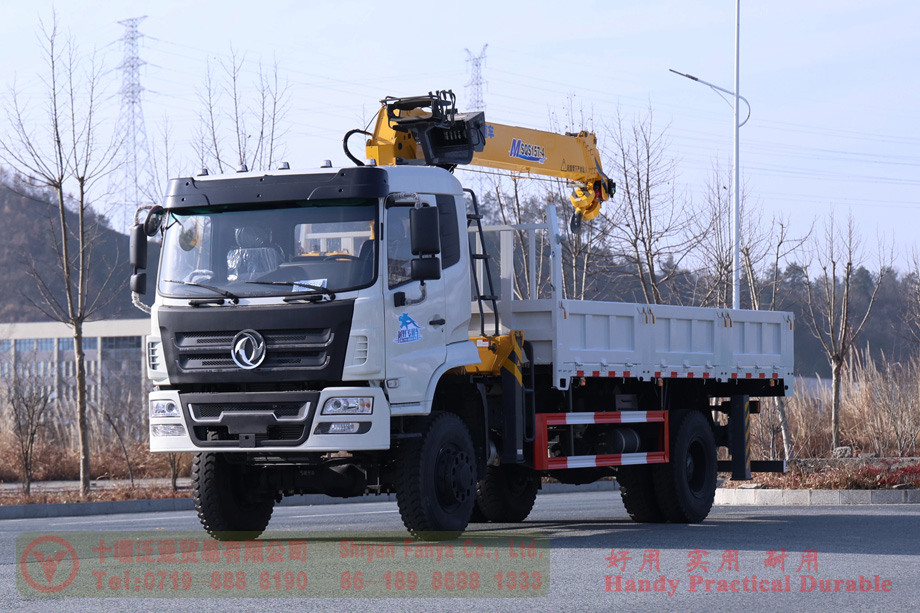

4×4 Dongfeng Truck Lifting Truck–Dongfeng 6.5T Truck Lifting Truck–Xugong 6.5T Four-section Boom Crane
Product Description
The 4×4 Dongfeng 6.5-ton truck-mounted crane adopts XCMG 6.5T four-jib crane with cargo box size 5600×2450×550mm, which is suitable for road construction, port freight and field rescue. The crane needs to check the surrounding environment before operation, and the legs must be unfolded on solid ground before it can work.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Wechai WP6.210E32 |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |

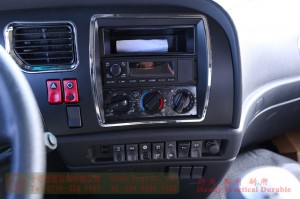

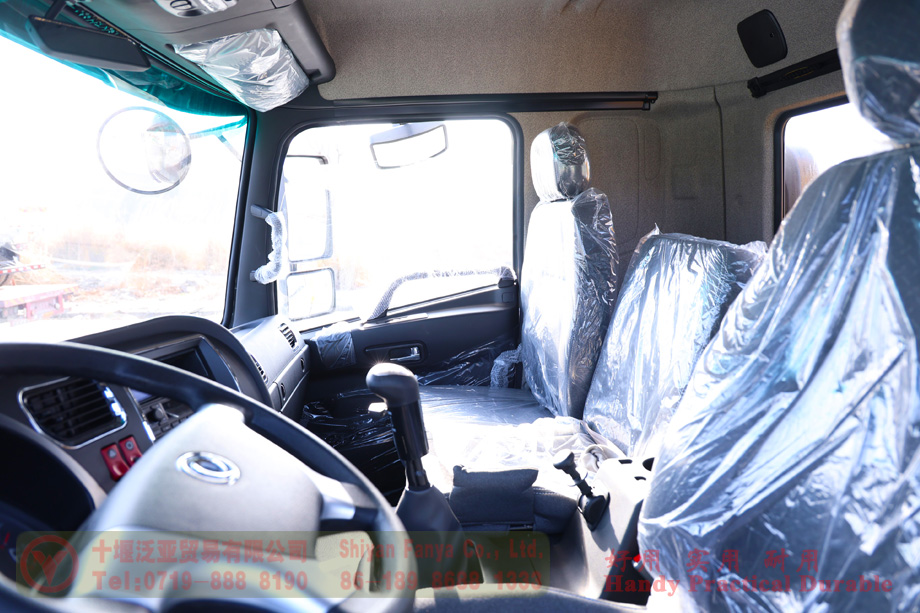

| Cab | Dongfeng flathead one and a half row (with sleeper) |
| Axle | Max. Load 6.5Tons/13Tons (Front/Rear) |

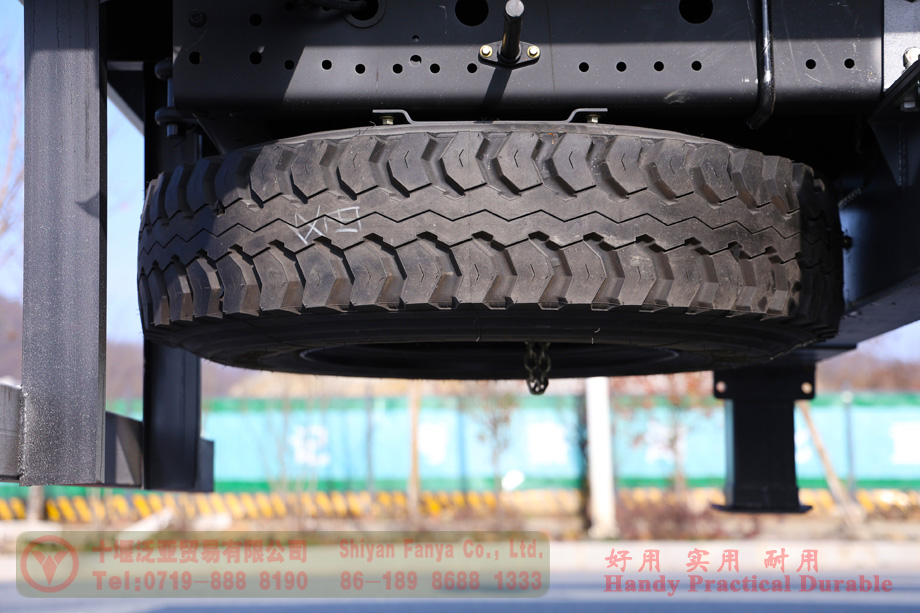

| Tyre | 11.00R20 (6 + 1) |
| Frame | 280mm, triple reinforced |
| Suspension | Steel plate spring 9/11+8 pieces |
| Circuits | 24V circuit system |
| Other | XCMG 6.3-ton four-section straight boom crane, upper control, with rear outriggers. |
| Performance Parameter | |||
| Overall Dimension(mm) | 8860 × 2630 × 3770(Length×Width×Height) (The height is the height above the ground at the highest point when the crane is retracted) | ||
| Cargo box dimension(mm) | 5600× 2450× 550(Length×Width×Height) | ||
| Total Mass(kg) | 18000 | Curb Weight(kg) | 11870 |
| Max. Power(kW) | 155 | Max. Torque(N.m) | 750 |
| Wheelbase(mm) | 5000 | Displacement(L) | 6.23 |
| Ground Clearance(mm) | 340 | Obstacle height (mm) | 575 |
| Approach Angle（°） | 22 | Departure Angle（°） | 10 |

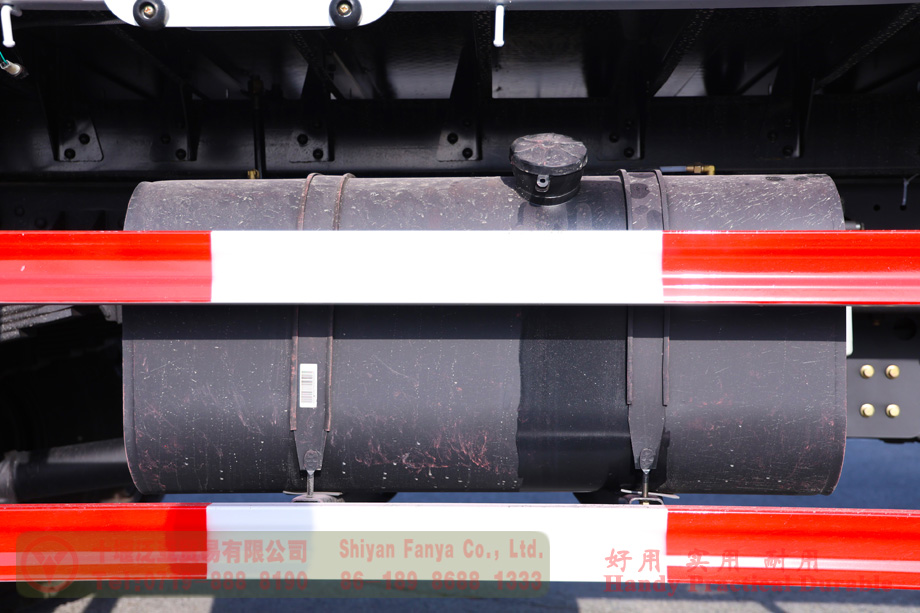

| Max. Speed(km/h) | 80 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
