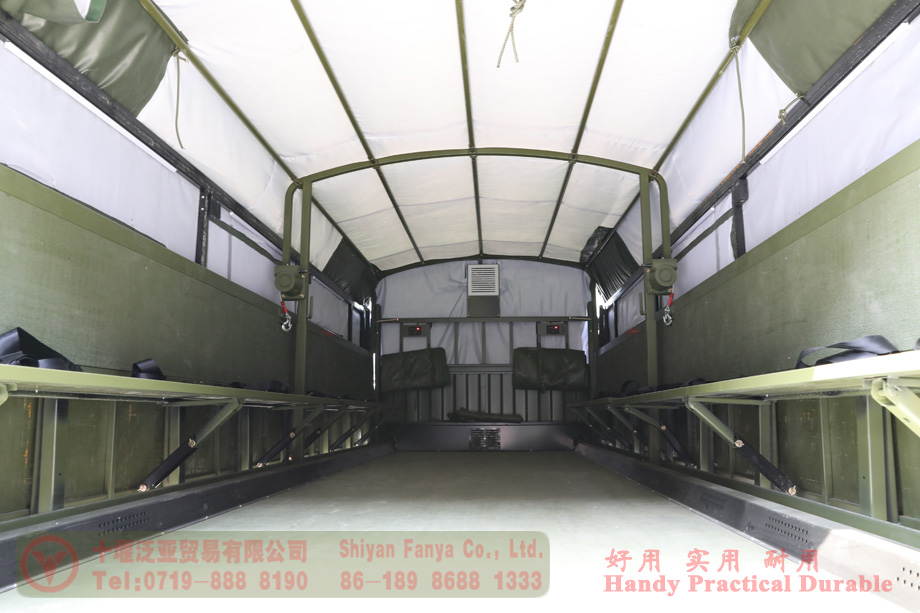

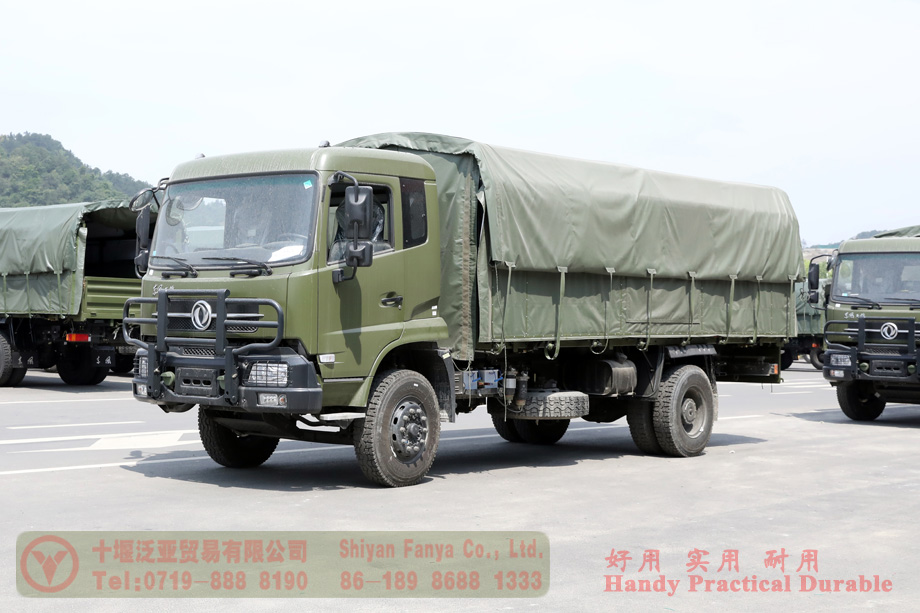

Selection of movable side compartment side plate structure, additional pull-out canopy pole support, split quick-connect tarpaulin and adjustable struts and other components, after the conversion of the vehicle with material loading and field camping fast conversion capacity. In normal times, the vehicle can be used as an ordinary high-barboard transportation vehicle; when camping, the side compartment side panels open and support the flat and fixed, with the trunk floor together constitute a flat bed, forming a high platform mobile tent for personnel accommodation. It has a simple structure, camping space and other characteristics, under the premise of maintaining the original function of the load car, not only can transport troops, materials and can take into account the camping, with a car multi-purpose, quick conversion and other advantages.

(I) Safeguard ability

1. Camping capacity: the side panels of the side compartments can provide accommodation space for 14 to 16 people after unfolding.

2. Transportation function: the side panels are equipped with reversible benches, which are convenient for riding; after the side panels are closed, the trunk can be loaded with goods.

3. Power protection: set up power control box. Installation of special batteries and inverters for electrical appliances to ensure emergency power for field lighting, exhaust fan, etc.; extension of power supply interface, which can be connected to the utility or small generator, to ensure the long-term use of electricity for small-power electrical appliances.

4. Lighting capacity: Configure lighting fixtures to realize the internal and external peripheral lighting coverage of the carriage.

5. Environmental adjustment ability: the car tarpaulin is equipped with movable windows, window screens and curtains; equipped with ventilation fans to improve the living environment under hot weather.

6. Operation time, unfolding time, closing time should be controlled in 15 minutes respectively (when 4 people operate).

(ii) Environmental adaptability requirements

1. unfolding ground: it should be able to adapt to the hard ground in most areas of China.

2. Road: other aspects of the modification does not reduce the original chassis passability.

3. weather: all-weather operation.

4. Maintainability: after modification, the main assembly structure of the original chassis remains unchanged, and the chassis maintenance is the same as that of the original vehicle; the equipment can realize barrier-free contact and facilitate maintenance.

5. Safety: fireproof and flame retardant materials are used.

6. Ergonomics: The design should be in line with the relevant requirements of GJB2873-1997 “Ergonomics Design Guidelines for Military Logistics Equipment and Facilities”.
